Grizzly H8091 Instruction Sheet

Specifications

Maximum Lifting Capacity .....................7000 lbs.
Lifting Range .......................................4
Weight .......................................................83 lbs
Jack Handle
Foot
Pedal

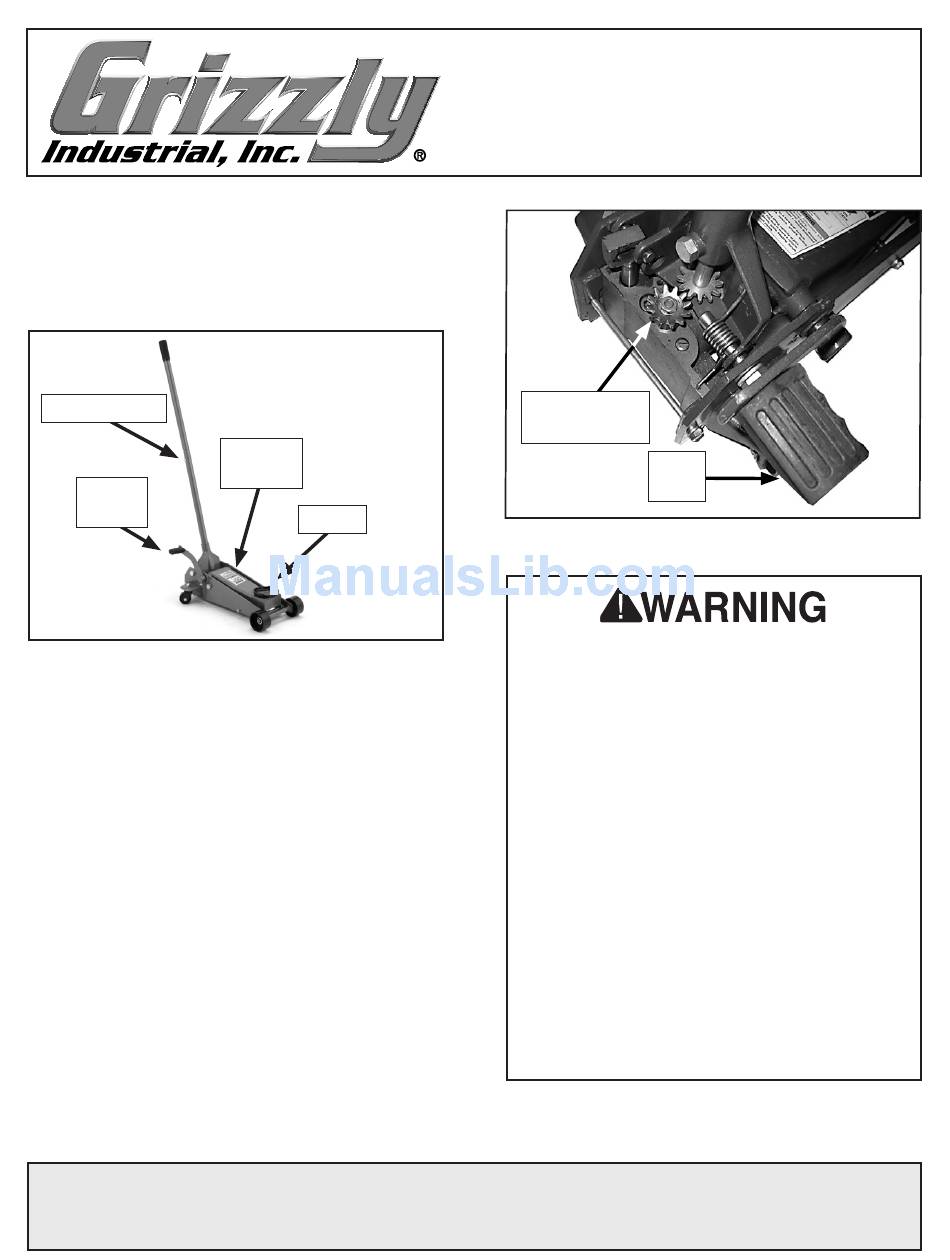

Figure 1. Model H8091 Identification.
Operation
To raise the saddle gradually:
Turn the jack handle clockwise as far as it will
turn and pump the handle up and down. Turning
the handle clockwise will close the release valve
(see Figure 2).
To raise the saddle quickly:
With the jack handle turned fully clockwise, push
the foot pedal down and release it slowly. Each
pump of the pedal will raise the saddle approxi-
mately one-third of its full range.
To lower the saddle:
Slowly turn the jack handle counterclockwise.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
⁄ "–14
3
4
Machine
Label
Saddle
COPYRIGHT © DECEMBER, 2006 BY GRIZZLY INDUSTRIAL, INC.
#JC8822 PRINTED IN CHINA
MODEL H8091
3 / Ton Quick Pump
1
2
Garage Jack
⁄ "
5
8
.
Release
Valve Gear
Figure 2. Pump pedal and release valve gear.
Failure to follow these instructions could
result in serious personal injury or death:
1. DO NOT overload this jack beyond its
rated capacity. Overloading can cause
the jack to collapse and drop the load.
2. ALWAYS support the vehicle with
appropriately rated support stands
before working under it.
3. DO NOT attempt to move the vehicle
while the jack is in use.
4. Use only on hard level surfaces like
concrete or asphalt. Other surfaces are
potentially unstable.
5. Center the load on the jack to maintain
proper balance and stability.
6. DO NOT use jack if it begins leaking
fluid or if it sinks when placed under
load. These are indications that the jack
needs to be immediately serviced.
If you need help with the Model H8091, call our
Technical Support line at: (570) 546-9663.
Foot
Pedal
