Grizzly H8092 Specifications

Specifications

Maximum Lifting Capacity .....................7000 lbs.
Lifting Range .......................................5
Weight .......................................................84 lbs.
Foot
Pedal

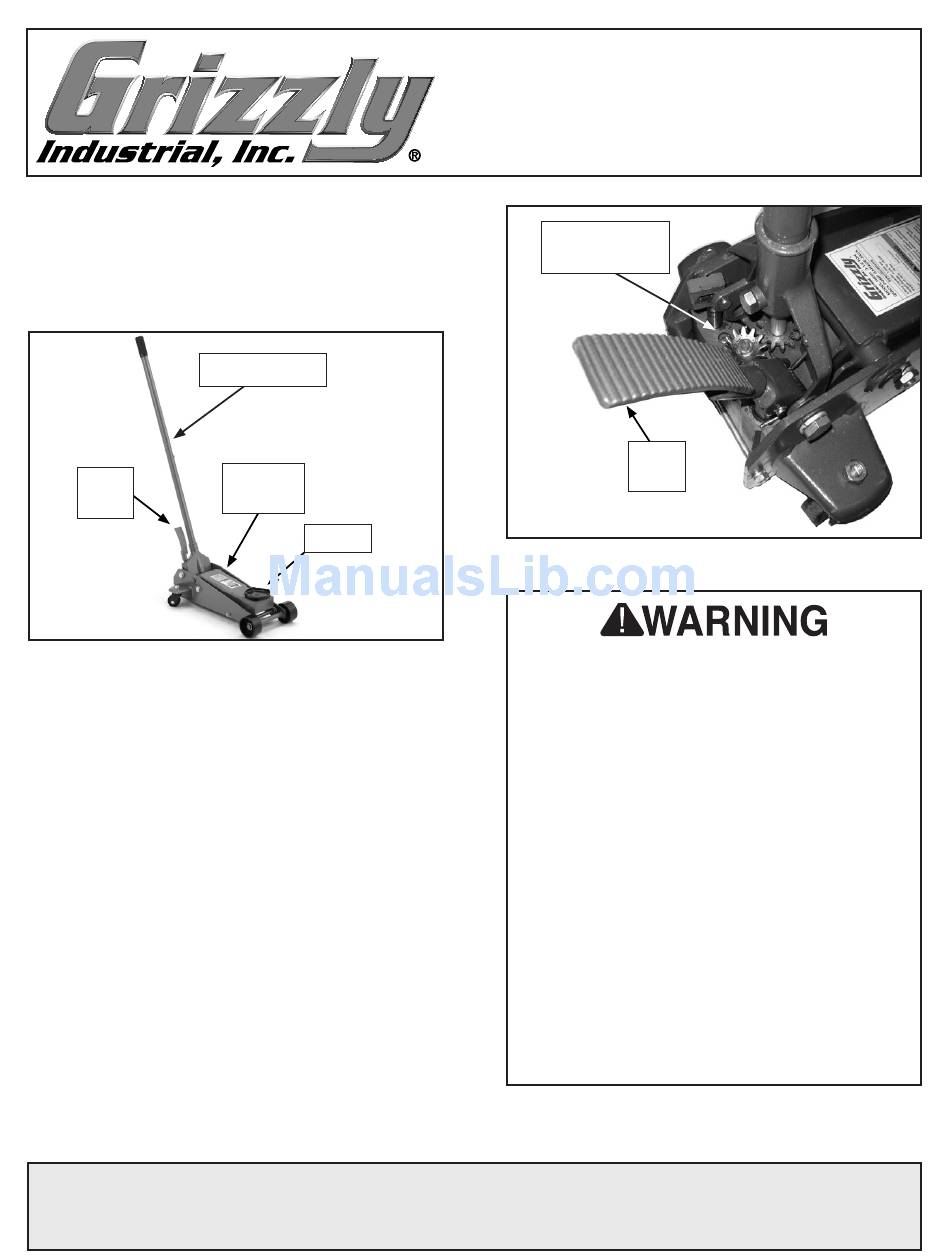

Figure 1. Model H8092 Identification.
Operation
To raise the saddle with the jack handle:
Turn the handle clockwise as far as it will turn
and pump the handle up and down. Turning the
handle clockwise will close the release valve (see
Figure 2).
To raise the saddle with the foot pedal:
With the jack handle turned fully clockwise, push
the foot pedal down and release it slowly. Each
pump of the pedal will raise the saddle approxi-
mately two inches.
To lower the saddle:
Slowly turn the jack handle counterclockwise.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
⁄ "–19
1
4
Jack Handle
Machine
Label
Saddle
COPYRIGHT © DECEMBER, 2006 BY GRIZZLY INDUSTRIAL, INC.
#JC8823 PRINTED IN CHINA
MODEL H8092
3 / Ton Double Pump
1
2
Garage Jack
Release
Valve Gear
⁄ "
3
4
Figure 2. Pump pedal and release valve gear.
Failure to follow these instructions could
result in serious personal injury or death:
1. DO NOT overload this jack beyond its
rated capacity. Overloading can cause
the jack to collapse and drop the load.
2. ALWAYS support the vehicle with
appropriately rated support stands
before working under it.
3. DO NOT attempt to move the vehicle
while the jack is in use.
4. Use only on hard level surfaces like
concrete or asphalt. Other surfaces are
potentially unstable.
5. Center the load on the jack to maintain
proper balance and stability.
6. DO NOT use jack if it begins leaking
fluid or if it sinks when placed under
load. These are indications that the jack
needs to be immediately serviced.
If you need help with the Model H8092, call our
Technical Support line at: (570) 546-9663.
Foot
Pedal
