Grizzly H8090 Specifications

Specifications

Maximum Lifting Capacity ............................ 4000 lbs.
Lifting Range ............................................. 5
Weight .............................................................. 21 lbs.
Identification

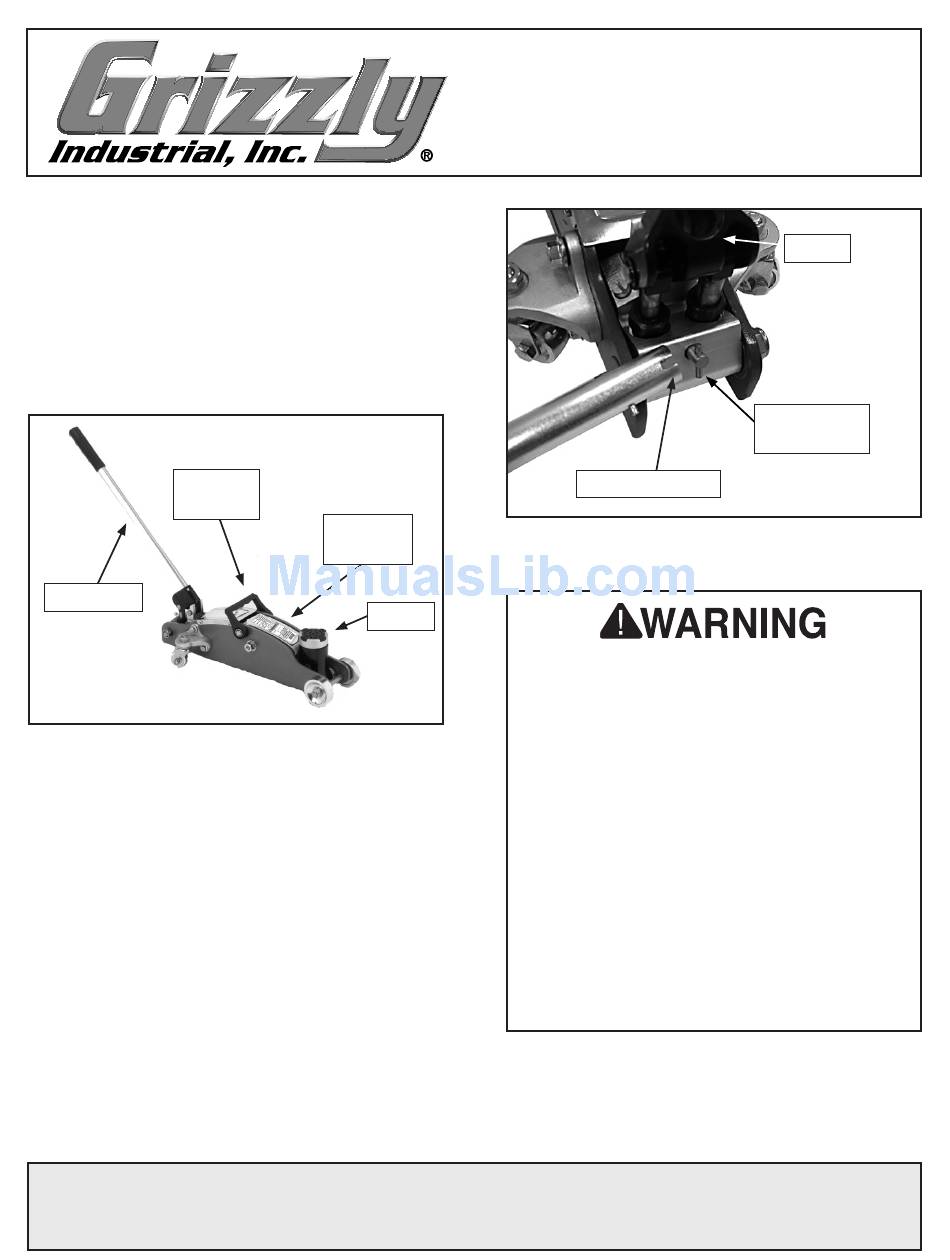

Figure 1 shows the main parts of the jack.
Carrying
Handle
Pump Arm
Figure 1. Model H8090 Identification.
Operation
To raise the saddle:
Fit the pump arm notch over the pump con-
trol knob and turn the knob clockwise until it
stops, then put the pump arm into the socket
and move the arm up and down (Figure 2).
To lower the saddle:
Fit the pump arm over the control knob and
slowly turn the knob counterclockwise.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
⁄ "–13
7
16
Machine
Label
Saddle
COPYRIGHT © DECEMBER, 2006 BY GRIZZLY INDUSTRIAL, INC.
#JC8821 PRINTED IN CHINA
MODEL H8090
Mini Aluminum Jack
⁄ "
7
8
Pump Arm Notch
Figure 2. Pump control knob, pump arm notch and
Failure to follow these instructions could result
in serious personal injury or death:
1. ALWAYS support the vehicle with appropri-
ately rated support stands before using this
jack.
2. Only use this jack on hard level surfaces
such as concrete or asphalt.
3. DO NOT overload this jack beyond the
maximum lifting capacity. Overloading can
cause the jack to collapse.
4. DO NOT use this jack to move a vehicle.
This jack is designed for lifting only.
5. Keep fingers and hands away from pinch
points when lowering
6. Always block vehicle wheels before using
this jack.
If you need help with the Model H8090, call our
Technical Support line at: (570) 546-9663.
2 Ton
Socket
Pump Control
Knob
pump arm socket.
