Models covered by this Quick Start Guide
TCS-C35T, TCS-C50T ceiling speakers.
Thank you for choosing a TURBOSOUND loudspeaker product for your application. If you would like further information
about this or any other TURBOSOUND product, please contact us. A detailed user manual on this product is available from
our web site at www.turbosound.com.

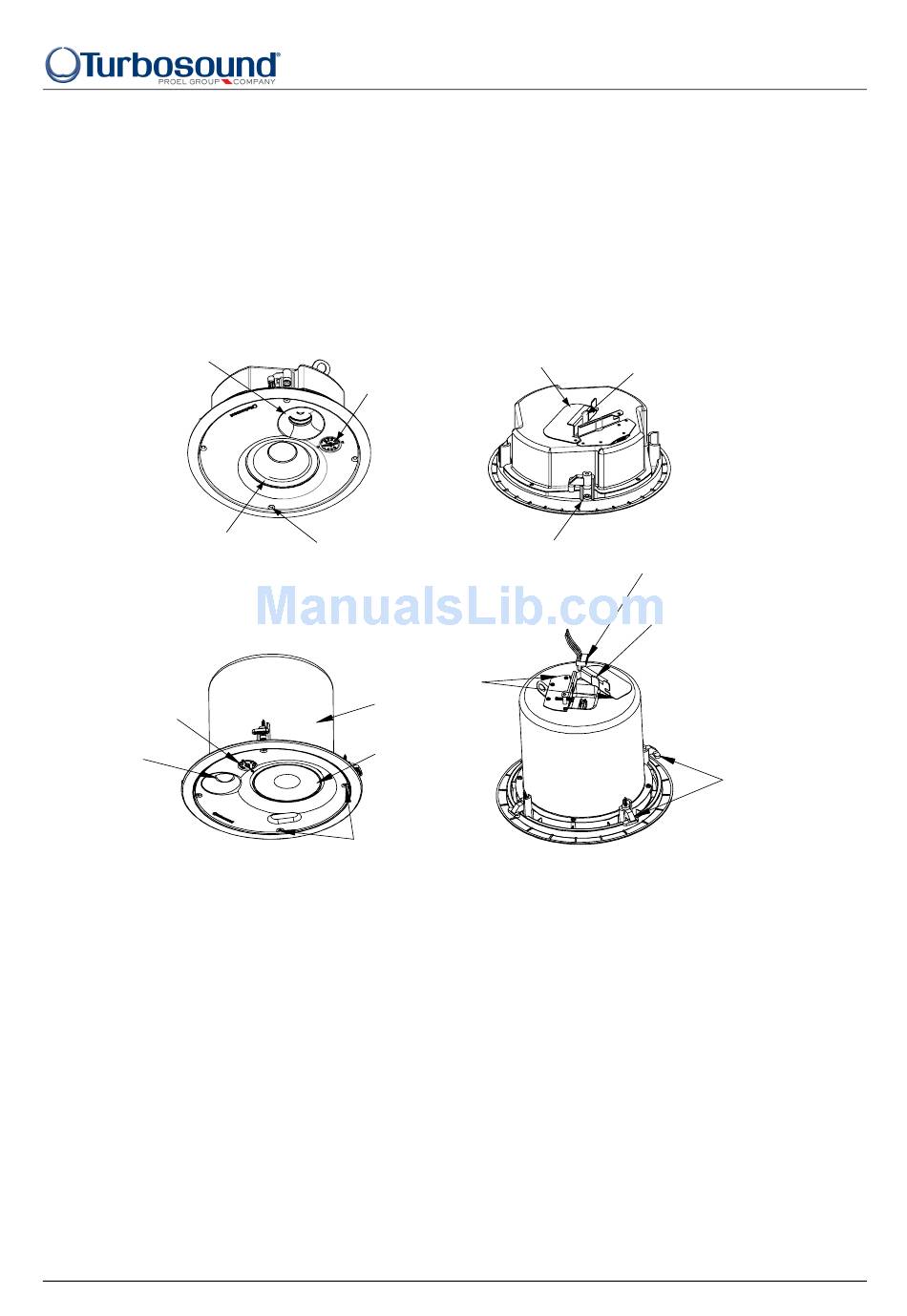

TCS-35T
Tweeter
LF loudspeaker
TCS-50T
Tap selector
Tweeter
Unpacking the TCS series loudspeaker
After unpacking the unit please check carefully for damage. If damage is found, please notify your supplier at once. You,
the consignee, must instigate any claim. Please retain all packaging in case of future re-shipment.
System Requirements
TCS-C series ceiling loudspeakers are passive loudspeaker systems, and require only one amplifier channel for correct
operation, the frequency splitting between the LF driver and the HF driver being accomplished by the internal passive
crossover network.
Using Ceiling Loudspeakers with Subwoofers
If subwoofers are required, additional amplifier channels and external electronic crossovers will be required. The
Turbosound LMS series digital management systems are recommended for this purpose.
Terminal cover plate
Tap selector
Attachment screws
Rotating mounting tabs
Terminal cover plate
Steel fire can
LF loudspeaker
Attachment screws
Quick Start Guide
TCS-C ceiling series
Strain relief fitting
Input connector
Strain relief fitting
Rotating mounting tabs
TCS-C series Quick Start Guide - Page - 1
