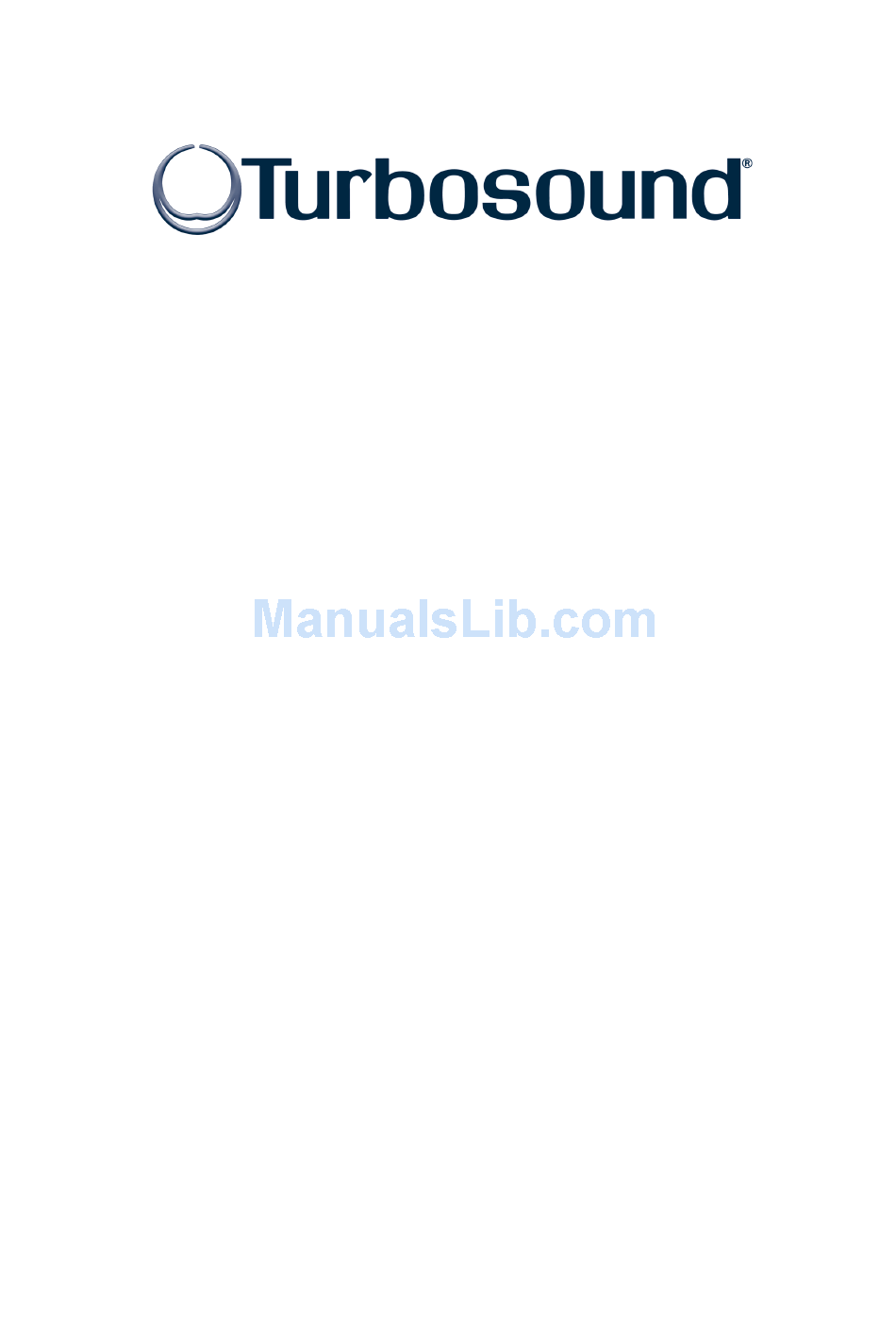

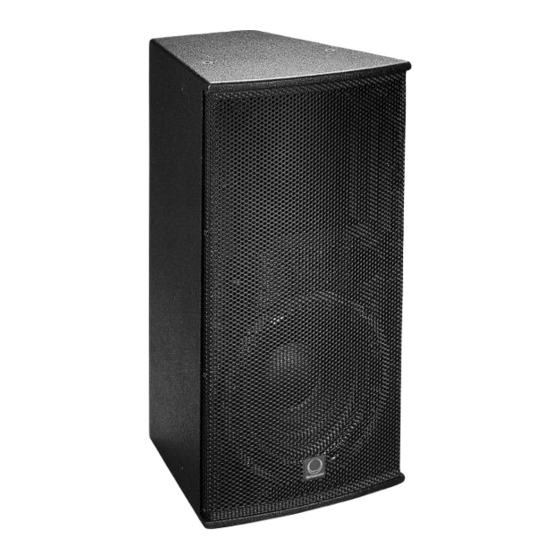

- Page 1 TCS SERIES USER MANUAL Turbosound Ltd. Star Road, Partridge Green West Sussex RH13 8RY England Tel: +44 (0)1403 711447 Fax: +44 (0)1403 710155 web: www.turbosound.com Issue 1.2 October 2000 Copyright © 2000 Turbosound Ltd.
- Page 2 TCS series tcs manual page 2...
-
Page 3: Table Of Contents
TCS series CONTENTS Thanks..........................4 Unpacking..........................4 Introduction ......................... 5 Features ..........................5 Product Range Summary....................6 TCS-10........................6 TCS-20........................6 TCS-30........................6 TCS-35........................7 TCS-40........................7 TCS-56........................7 TCS-59........................7 TCS-108 ........................8 TCS-118 ........................8 TCS-215 ........................8 TCS-12M........................ -
Page 4: Thanks
TCS series Thanks Thank you for choosing a TURBOSOUND TCS series loudspeaker product for your application. Please spare a little time to digest the contents of this manual, so that you obtain the best possible performance from this unit. -
Page 5: Introduction
Introduction Congratulations, you have just purchased a professional loudspeaker product from the TCS Series sound contracting loudspeaker range, designed to give you the best in audio quality and many years of reliable, trouble free operation. It offers excellent pattern control, superior audio quality, integral rigging and flying hardware options, full technical documentation including EASE data, and a comprehensive warranty against manufacturing defects. -
Page 6: Product Range Summary
It uses two 5” LF drivers and a 100° x 60° HF horn. The cabinet is fitted with M6 internal fixings for permanent installations using standard eyebolts and optional Turbosound wall and ceiling brackets. tcs manual... -
Page 7: Tcs-35
TCS-56 or TCS-59 arrays, or in under-balcony or delay speaker applications. The cabinet is fitted with M10 internal steel rigging points for permanent installations using standard eyebolts or optional Turbosound wall and ceiling brackets. The TCS-56 TCS-56... -
Page 8: Tcs-108
TCS series The TCS-108 TCS-108 is a compact front loaded vented subwoofer TCS-108 TCS-108 with a high efficiency 8” low frequency driver. Its design allows multiple configurations adaptable to differing venue requirements by assembling units together with the supplied external brackets. -
Page 9: System Requirements
TCS series System Requirements TCS series 2-way enclosures are passive loudspeaker systems. This means that they require only one amplifier channel for correct operation, the frequency splitting between the low frequency driver and the high frequency driver being accomplished by the internal passive crossover network in each enclosure. -
Page 10: System Configurations
TCS series System Configurations Many different system configurations of TCS series loudspeaker enclosures are possible to suit various installation requirements, ranging from cafes, bars and restaurants to theme parks, theatres and houses of worship. Listed below are a few common examples. - Page 11 TCS series ♦ Full range system for medium venues 4 x TCS-56 medium dispersion enclosures 4 x TCS-118 or TCS-215 sub-bass enclosures 1 x LMS-D6 loudspeaker management system 1 x TMC-750 power amplifier 1 x TMC-1250 power amplifier LMS -D6 ♦...
-
Page 12: Lms-D6 Loudspeaker Management System
Delay of up to 650mS can be independently set for each output with a minimum increment of 2..6µS. ♦ Comprehensive standard specification Comprehensive standard specification includes 20 user memories, and Turbosound’s Comprehensive standard specification Comprehensive standard specification pre set memories. -
Page 13: Loudspeaker Connections
TCS series Loudspeaker Connections TCS series enclosures are provided with a recessed connector panel housing a single Neutrik Speakon NL4MP connector wired in parallel with a 4-way terminal strip, or in the case of the TCS-12M and TCS-15M wedge monitors via two Neutrik Speakon NL4MP connectors wired in parallel. -
Page 14: Connecting Cables
TCS series Connecting Cables Heavy duty loudspeaker cable should always be used, with a minimum wire size of 12 gauge (1.5mm ), and preferably 10 gauge (2.5mm ) for longer runs, keeping the run as short as possible. This helps to avoid wasting amplifier power in the resistance of the cable. -
Page 15: Flying And Lifting
FLYING AND LIFTING General A versatile set of rigging parts has been designed for arrayable TCS series enclosures in order to give the installer a cost effective approach to flying and mounting, ranging from a single enclosure up to multi-box arrays and clusters. -
Page 16: Flying Single Enclosures
♦ OmniMount series 25, series 50, series 75 and Powerdrive series 75 wall and ceiling brackets (not supplied) for use with smaller TCS series enclosures such as the TCS- 10, TCS-20, TCS-30 and TCS-35. tcs manual... - Page 17 TCS-10, TCS-20, TCS-30, TCS-35, TCS-40, TCS-56 and TCS-59. ♦ Optional Turbosound SB-30 and SB-40 swivel brackets, which can be used to mount TCS-30 and TCS-40 enclosures to walls or ceilings. ♦...
- Page 18 TCS series The table below indicates which type of installation hardware to use with which Turbosound TCS Series enclosure. TCS-10 ♦ ♦ TCS-20 ♦ ♦ TCS-30 ♦ ♦ ♦ TCS-35 ♦ ♦ ♦ ♦ ♦ TCS-40 ♦ ♦...
- Page 19 Parts required: Omnimount or Powerdrive wall or ceiling brackets as appropriate. Ensure you have the correct bracket for the intended application and weight of the enclosure. Verify the weights of TCS series enclosures to be installed from the technical specifications section at the end of this manual.
- Page 20 4 x spring washers Ensure you have the correct Turbosound bracket for the intended application and weight of the enclosure. Verify the net weight of TCS series enclosure to be installed from the technical specifications section at the end of this manual.
-
Page 21: Flying Multiple Enclosures
They have not been designed to fly additional rows of TCS enclosures and should not be used for this purpose. The key elements in flying arrays of TCS series enclosures are laser-cut steel fly bars manufactured by Turbosound which form the basis of simple, unobtrusive and versatile flying bar assemblies to enable the rigging of 2-wide and 3-wide TCS-56/59 clusters using the minimum of additional accessories and hardware. - Page 22 TCS series • TP-55/2 TP-55/2 2-way flying assembly top plate and a BP-55/2 BP-55/2 2-way flying assembly bottom TP-55/2 TP-55/2 BP-55/2 BP-55/2 plate. It is used to connect two TCS-56/59 enclosures together with a splay angle between cabinets of up to 30º in increments of 5º...
- Page 23 TCS series Rigging Instructions for a 2-wide TCS-56/59 array Parts required: 2 x TCS-56 or TCS-59 enclosures 1 x TP-55/2 flying assembly top plate 1 x BP-55/2 flying assembly bottom plate 4 x M10 x 36mm shoulder eyebolts...
- Page 24 TCS series Rigging Instructions for a 3-wide TCS-56/59 array Parts required: 3 x TCS-56 or TCS-59 enclosures 1 x TP-55/3 flying assembly top plate 1 x BP-55/3 flying assembly bottom plate 4 x M10 x 36mm shoulder eyebolts...
- Page 25 TCS series Rigging the TCS-40 with 3-wide TCS-56/59 arrays Parts required: 3 x TCS-56 or TCS-59 enclosures 1 x TCS-40 enclosure 1 x TP-55/3 flying assembly top plate 1 x SB-40 swivel bracket 4 x M10 x 36mm shoulder eyebolts...
-
Page 26: Appendix A: Technical Specifications
TCS series APPENDIX A Technical Specifications tcs manual page 26... - Page 27 TCS series APPENDIX A Technical Specifications (continued) Due to continuing product improvement the above specifications are subject to change. tcs manual page 27...
-
Page 28: Appendix B: Warranty
Insurance is recommended, as Turbosound or its representatives are not liable for loss or damage in transit. Turbosound will pay for return freight costs should repairs be covered under warranty. - Page 29 TCS series Incidental and consequential damages Turbosound's liability is limited to the repair or replacement, at our option, of any defective product, and shall not be liable for any incidental and consequential damages including, without limitation, injury to persons or property or loss of use.
-
Page 30: Appendix C: Use Of Thread Locking Compounds
TCS series APPENDIX C Use of thread locking compounds When assembling flying hardware to TCS series loudspeaker enclosures it is advisable to use thread-locking compounds to eyebolts and other bolts in order to avoid any possibility of loosening. The recommended thread-locking compound is Loctite 222. - Page 31 TCS series Notes tcs manual page 31...
- Page 32 Turbosound Ltd. Star Road, Partridge Green West Sussex RH13 8RY England Tel: +44 (0)1403 711447 Fax: +44 (0)1403 710155 web: www.turbosound.com...
