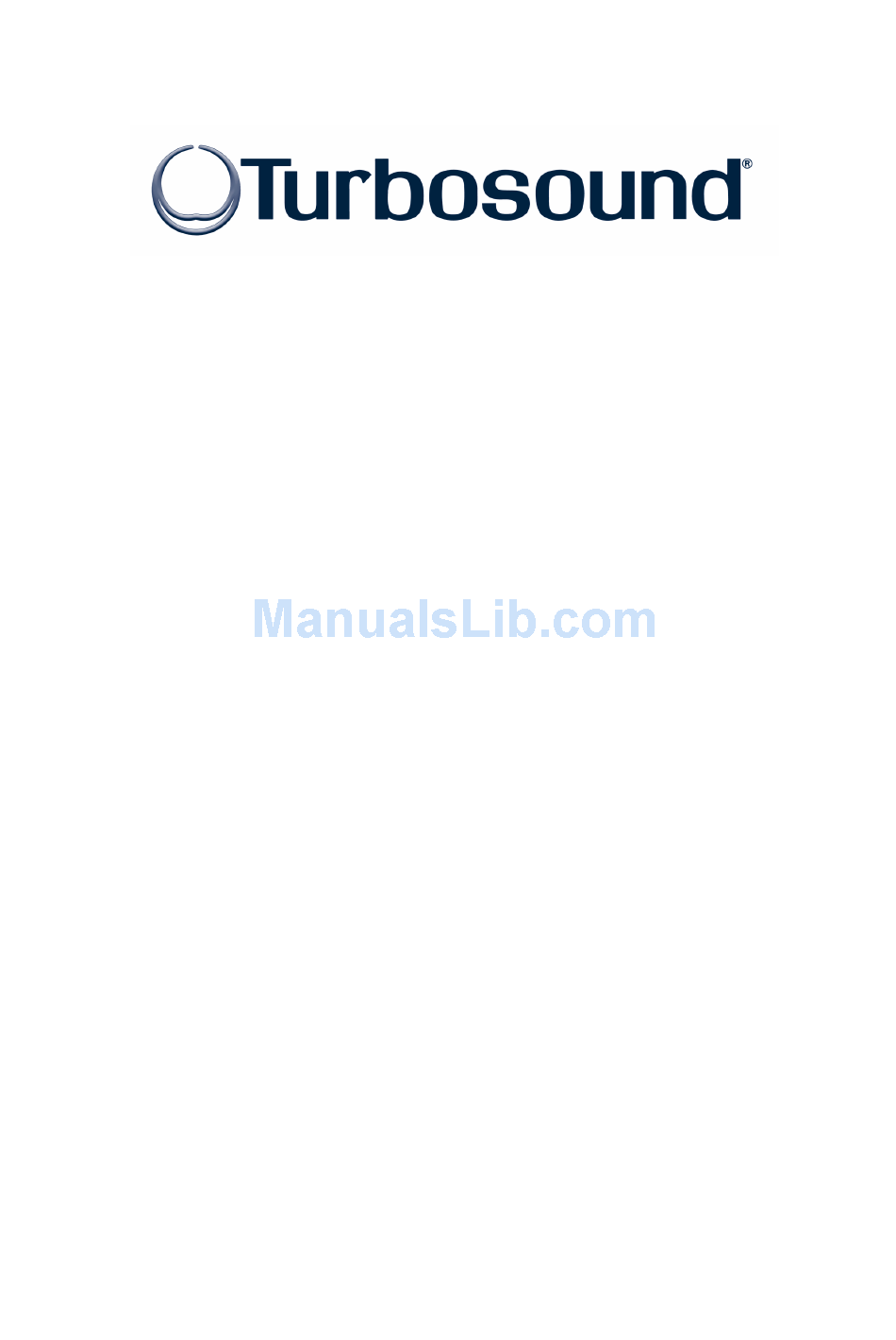

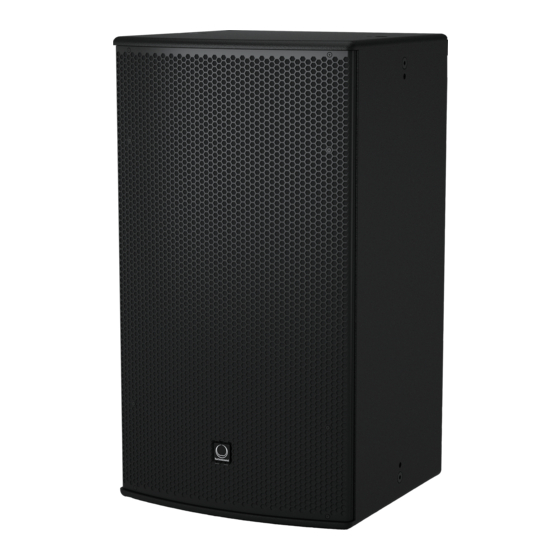

- Page 1 TCS SERIES USER MANUAL Turbosound Ltd. Star Road, Partridge Green West Sussex RH13 8RY UK Tel: +44 (0)1403 711447 Fax: +44 (0)1403 710155 web: www.turbosound.com Issue 1.3 October 2005 Copyright © 2005 Turbosound Ltd...
- Page 2 user manual TCS series tcs manual page 2...
-
Page 3: Table Of Contents
Flying single enclosures... 17 Installation of a single TCS series enclosure using eyebolts ... 20 Installation of a single TCS series enclosure using Turbosound or Omnimount hardware... 20 Installation of a single TCS series enclosure using WB-10, WB-20, W-55, CB-10, CB-55 wall and ceiling brackets ... - Page 4 user manual TCS series Incidental and consequential damages ... 30 Limitation of implied warranties ... 30 Appendix C ... 31 Use of thread locking compounds ... 31 Notes ... 32 tcs manual page 4...
-
Page 5: Thanks
All TURBOSOUND products are carefully engineered for world class performance and reliability. If you would like further information about this or any other TURBOSOUND product, please contact us. Detailed product information is available on our web site at www.turbosound.com We look forward to helping you in the near future. -
Page 6: Introduction
♦ Internal rigging points enable a wide variety of installation methods: with standard eyebolts; OmniMount hardware; and optional Turbosound wall and ceiling brackets. ♦ High quality components are used throughout the TCS range. Cast frame low frequency drivers give the combined benefits of high strength and low weight, while high frequency drivers are all selected for consistent and reliable performance. -
Page 7: Product Range Summary
It uses two 5” LF drivers and a 100° x 60° HF horn. The cabinet is fitted with M6 internal fixings for permanent installations using standard eyebolts and optional Turbosound wall and ceiling brackets. user manual... - Page 8 TCS series applications. The cabinet is fitted with M10 internal steel rigging points for permanent installations using standard eyebolts or optional Turbosound wall and ceiling brackets. tcs manual page 8 The TCS-35 is a compact trapezoidal passive 2-way loudspeaker with a single 8”...
- Page 9 The TCS-108 is a compact front loaded vented subwoofer with a high efficiency 8” low frequency driver. Its design allows multiple configurations adaptable to differing venue requirements by assembling units together with the supplied external brackets. The cabinet is fitted with M10 internal rigging points for permanent installations using standard eyebolts.
-
Page 10: System Requirements
If subwoofer enclosures are used in a bi-amplified system in conjunction with TCS series 2-way enclosures, additional amplifier channels and external electronic crossovers will be required. Turbosound LMS series digital management systems are recommended for this purpose. -
Page 11: System Configurations
System Configurations Many different system configurations of TCS series loudspeaker enclosures are possible to suit various installation requirements, ranging from cafes, bars and restaurants to theme parks, theatres and houses of worship. Listed below are a few common examples. ♦ Full range system for small venues 2 x TCS-59 wide dispersion enclosures 1 x TMC-750 power amplifier... - Page 12 user manual TCS series ♦ Full range system for medium venues 4 x TCS-56 medium dispersion enclosures 4 x TCS-118 or TCS-215 sub-bass enclosures 1 x LMS-D6 loudspeaker management system 1 x TMC-750 power amplifier 1 x TMC-1250 power amplifier ♦...
-
Page 13: Lms-D6 Loudspeaker Management System
Delay of up to 650mS can be independently set for each output with a minimum increment of 2.6µS. ♦ Comprehensive standard specification includes 20 user memories, and Turbosound’s pre set memories. ♦ The LMS-D6 provides exceptional audio quality with a full >110dB dynamic range, high sampling rate and minimal filtering. -
Page 14: Loudspeaker Connections
user manual TCS series Loudspeaker Connections TCS series enclosures are provided with a recessed connector panel housing a single Neutrik Speakon NL4MP connector wired in parallel with a 4-way terminal strip, or in the case of the TCS-12M and TCS-15M wedge monitors via two Neutrik Speakon NL4MP connectors wired in parallel. -
Page 15: Connecting Cables
Connecting Cables Heavy duty loudspeaker cable should always be used, with a minimum wire size of 12 gauge (1.5mm ), and preferably 10 gauge (2.5mm short as possible. This helps to avoid wasting amplifier power in the resistance of the cable. -
Page 16: Flying And Lifting
If you are in any doubt contact your Turbosound dealer who will be able to refer you to an experienced rigging company. All the sets and parts have been type tested and will be covered by “certificates of conformity”... -
Page 17: Flying Single Enclosures
Single enclosures may be flown using a variety of different methods: ♦ Standard eyebolts (available from Turbosound or third party suppliers) attached to the rigging points provided on the top and back of the cabinet. The rigging point at the rear of the cabinet is used to alter the downward angle of the enclosure. - Page 18 TCS series ♦ Optional Turbosound WB-10 WB-60, WB-100 and CB-100 wall and ceiling brackets for use with many full range and mid-high cabinets including the TCS-10, TCS-20, TCS- 30, TCS-35, TCS-40, TCS-56 and TCS-59. ♦ Optional Turbosound swivel brackets, which can be used to mount TCS-20, TCS-30 and TCS-40 enclosures to walls or ceilings.
- Page 19 The table below indicates which type of installation hardware to use with which Turbosound TCS Series enclosure. TCS-20 ♦ TCS-30 ♦ ♦ TCS-35 ♦ ♦ TCS-40 ♦ ♦ TCS-56 ♦ TCS-59 ♦ TCS-108 ♦ TCS-118 ♦ TCS-215 ♦ ♦ ♦...
-
Page 20: Installation Of A Single Tcs Series Enclosure Using Eyebolts
Angle the cabinet as necessary using the rigging point on the back. Installation of a single TCS series enclosure using Turbosound or Omnimount hardware Parts required: Turbosound or Omnimount wall or ceiling brackets as appropriate. Ensure you have the correct bracket for the intended application and weight of the enclosure. -
Page 21: Installation Of A Single Tcs Series Enclosure Using
4 x flat washers 4 x spring washers Ensure you have the correct Turbosound bracket for the intended application and weight of the enclosure. Verify the net weight of TCS series enclosure to be installed from the technical specifications section at the end of this manual. - Page 22 The key elements in flying arrays of TCS series enclosures are laser-cut steel fly bars manufactured by Turbosound which form the basis of simple, unobtrusive and versatile flying bar assemblies to enable the rigging of 2-wide and 3-wide TCS-56/59 clusters using the minimum of additional accessories and hardware.
- Page 23 • TP-55/2 2-way flying assembly top plate and a BP-55/2 2-way flying assembly bottom plate. It is used to connect two TCS-56/59 enclosures together with a splay angle between cabinets of up to 30º in increments of 5º TP-55/2 • TP-55/3 3-way flying assembly top plate and a BP-55/3 3-way flying assembly bottom plate.
-
Page 24: Rigging Instructions For A 2-Wide Tcs-56/59 Array
user manual TCS series Rigging Instructions for a 2-wide TCS-56/59 array Parts required: Set the cabinets out on the floor with the approximate desired horizontal splay angle. Remove the countersunk screws from the rigging points on the top of the cabinets. Set the TP-55/2 flying assembly top plate on the cabinets, aligning the slots with the enclosure rigging points. -
Page 25: Rigging Instructions For A 3-Wide Tcs-56/59 Array
Rigging Instructions for a 3-wide TCS-56/59 array Parts required: 3 x TCS-56 or TCS-59 enclosures 1 x TP-55/3 flying assembly top plate 1 x BP-55/3 flying assembly bottom plate 4 x M10 x 36mm shoulder eyebolts 8 x M10 x 36mm hex head bolts 12 x flat washers 12 x spring washers Set the cabinets out on the floor with the approximate desired horizontal splay angle. -
Page 26: Rigging The Tcs-40 With 3-Wide Tcs-56/59 Arrays
user manual TCS series Rigging the TCS-40 with 3-wide TCS-56/59 arrays Parts required: Assemble the array as described in steps 1 to 5 on the previous page. Invert the array and attach the SB-40 bracket to the bottom of the cabinets by removing the countersink screws and replacing them with M10 x 36mm hex head bolts. -
Page 27: Appendix A
user manual TCS series APPENDIX A Technical Specifications tcs manual page 27... - Page 28 user manual TCS series APPENDIX A Technical Specifications (continued) Due to continuing product improvement the above specifications are subject to change. tcs manual page 28...
-
Page 29: Appendix B: Warranty
Insurance is recommended, as Turbosound or its representatives are not liable for loss or damage in transit. Turbosound will pay for return freight costs should repairs be covered under warranty. -
Page 30: Incidental And Consequential Damages
TCS series Incidental and consequential damages Turbosound's liability is limited to the repair or replacement, at our option, of any defective product, and shall not be liable for any incidental and consequential damages including, without limitation, injury to persons or property or loss of use. -
Page 31: Appendix C
user manual TCS series APPENDIX C Use of thread locking compounds When assembling flying hardware to TCS series loudspeaker enclosures it is advisable to use thread-locking compounds to eyebolts and other bolts in order to avoid any possibility of loosening. The recommended thread-locking compound is Loctite 222. -
Page 32: Notes
user manual TCS series Notes tcs manual page 32... - Page 33 Turbosound Ltd. Star Road, Partridge Green West Sussex RH13 8RY England Tel: +44 (0)1403 711447 Fax: +44 (0)1403 710155 web: www.turbosound.com...
