Tripp Lite PDUMV15NET Specification

100-125V
50/60Hz
5-15/20R
Low Voltage 16 Outlets
Input/Output
A Digital Load Meter
B 5-15/20R Outlets
with On/Off LEDs
C Durable Metal Case
D Removable Cord
Retention Brackets
E Removable Mounting
Brackets
F Toolless Mounting
Buttons
G 10 ft. Input Power Cord
H 5-15P Input Plug
I Network Interface
J RJ45 Ethernet Jack
K Manual Confi guration Port
L Environmental
Monitoring Port
M Network Interface
Reset Button
G
Specifi cations
Model
Voltage
Frequency
Maximum Capacity
Agency-Derated Capacity
Input Connector
Cord Length
Outlets
Primary Mounting Option
Unit Weight & Dimensions
Certifi cations
Tripp Lite has a policy of continuous improvement. Specifi cations are subject to change without notice.
PDUMV15NET

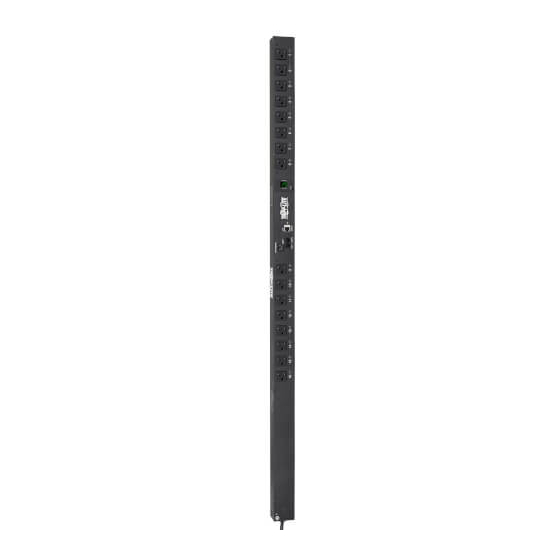

Switched Rackmount PDU
15A
15A Max Capacity
AC Input Connection: Insert 5-15P plug
into compatible 5-15R or 5-15/20R
utility, generator or UPS outlet.
Also Includes: Cable Ties,
Owner's Manual
B
E
F
H
PDUMV15NET
100-125V
50/60 Hz
15A
12A
5-15P
10 ft.
16 (5-15/20R)
0U (Vertical) Rackmount
7 lb / 4.25 x 49 x 2.25 in.
See next page for detailed unit measurements.
Tested to UL 60950-1 (US & Canada), NOM (Mexico),
FCC Class A
MODEL:
Load Meter Network
Interface
A
L
C
K
I J
Network Interface: Connect to Ethernet
for remote monitoring and individual
outlet control via SNMP, Web or Telnet.
Add optional ENVIROSENSE accessory for
temperature/humidity monitoring and
dry contact interface.
• Distributes power to 16 outlets
• Remote monitoring and control via SNMP, Web or Telnet
• Displays total load in real time
• Perfect for rackmount server, network and telecom
applications
SEE NEXT PAGE FOR DETAILED UNIT MEASUREMENTS
0U
0U Rackmount
B
D
M
1111 W. 35th Street
Chicago, IL 60609 USA
773.869.1234
www.tripplite.com
