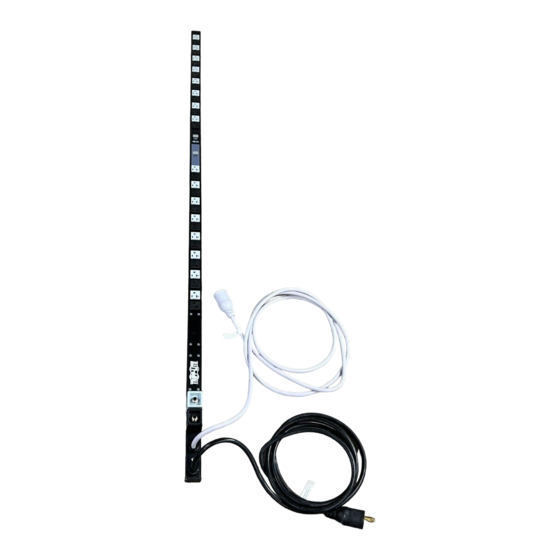

PDUMV40
Metered Rack PDU with
Dual Power Circuits

Important Safety Instructions

SAVE THESE INSTRUCTIONS
This manual contains instructions and warnings that should be
followed during the installation, operation and storage of this
product. Failure to heed these instructions and warnings will void
the product warranty.
Important Warnings
• The PDU provides convenient multiple outlets distributed across two independent power
circuits, but it DOES NOT provide surge or line noise protection for connected equipment.
• The PDU is designed for indoor use only in a controlled environment away from excess
moisture, temperature extremes, conductive contaminants, dust or direct sunlight.
• Do not connect the PDU to an ungrounded outlet or extension cords or adapters that
eliminate the connection to ground.
• The power requirement for each piece of equipment connected to the PDU must not exceed
the individual outlet's load rating.
• The total power requirement for equipment connected to each of the two independent
power circuits must not exceed the maximum load rating for that circuit.
• Do not drill into or attempt to open any part of the PDU housing. There are no user-
serviceable parts inside.
• Do not attempt to modify the PDU, including the input plugs and power cables.
• Do not attempt to use the PDU if any part of it becomes damaged.
• Do not attempt to mount the PDU to an insecure or unstable surface.
• Never attempt to install electrical equipment during a thunderstorm.
Español – p. 4 • Français – p. 8
Owner's Manual
Copyright © 2006 Tripp Lite. All rights reserved.
1111 W. 35th Street • Chicago, IL 60609 USA
(773) 869-1234 • www.tripplite.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIPP.LITE PDUMV40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tripp Lite TRIPP.LITE PDUMV40

Summary of Contents for Tripp Lite TRIPP.LITE PDUMV40

  • Page 1: Important Safety Instructions

    • Never attempt to install electrical equipment during a thunderstorm. Español – p. 4 • Français – p. 8 1111 W. 35th Street • Chicago, IL 60609 USA (773) 869-1234 • www.tripplite.com Copyright © 2006 Tripp Lite. All rights reserved.

  • Page 2: Installation

    Installation STEP 1A - Zero U Rack Configuration. Attach the three mounting clips supplied with the PDU to the rack enclosure using the included hardware. The mounting clips should be attached along a vertical plane at equidistant points which roughly correspond to the center and ends of the PDU. The exact mounting configuration may vary depending on the rack and enclosure.

  • Page 3: Warranty & Warranty Registration

    If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion. Service under this Warranty can only be obtained by Buyer delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W.

  • Page 4: Manual Del Propietario

    • No intente montar la PDU en una superficie insegura o inestable. • Nunca intente instalar equipos eléctricos durante una tormenta eléctrica. 1111 W. 35th Street • Chicago, IL 60609 USA CERTIFICADO (773) 869-1234 • www.tripplite.com UL 60950 © 2006 Tripp Lite. Todos los derechos reservados.

  • Page 5: Instalación

    Instalación PASO 1A - Configuración del rack (bastidor) de cero U. Fije los tres sujetadores de montaje suministrados con la PDU a la caja del rack (bastidor) usando los materiales incluidos. Los sujetadores de montaje deben fijarse a lo largo de un plano vertical en puntos equidistantes que correspondan aproximadamente al centro y los extremos de la PDU.
  • Page 6 (con todos los cargos de despacho o entrega pagados por adelantado) a: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609. El vendedor pagará los cargos de despacho de retorno.
  • Page 7 2. TRIPP LITE, se compromete a reparar, y en caso de que a su juicio no sea posible la reparación, a cambiar el equipo, así como las piezas y componentes defectuosos del mismo sin cargo alguno para el propietario durante el periodo de garantía, así...

  • Page 8: Importantes Consignes De Sécurité

    • Ne pas essayer de monter l’unité PDU sur une surface peu sûre ou instable. • Ne jamais essayer de d’installer un équipement électrique pendant un orage. 1111 W. 35th Street • Chicago, IL 60609 USA (773) 869-1234 • www.tripplite.com TESTÉ POUR UL 60950 Copyright 2006 Tripp Lite. Tous droits réservés.
  • Page 9 Installation ÉTAPE 1A - Configuration du bâti Zero U. Fixer les trois pattes de montage fournies avec l’unité PDU au boîtier du bâti à l’aide de la quincaillerie jointe. Il faut fixer les pattes de montage le long d’un plan vertical, à des points équidistants qui correspondent en gros au centre et aux extrémités de l’unité...

  • Page 10: Caractéristiques

    Caractéristiques Fiches d’entrée NEMA L5-20P : Les fiches d’entrée et les cordons d’alimentation associés sont codés en couleur pour correspondre à chacun des circuits d’alimentation indépendants. Adaptateurs enfichables NEMA 5-20P : Les adaptateurs convertissent les fiches d’entrée NEMA L5-20P en NEMA 5-20P. Les adaptateurs ne sont pas codés en couleur. Disjoncteurs : Si le courant tiré...

  • Page 11: Garantie

    être obtenus seulement en livrant ou expédiant le produit (avec tous les frais d’expédition ou de livraison prépayés) à : Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609. Le Vendeur paiera les frais d’expédition de retour. Appeler Tripp Lite au (773) 869-1234 avant de retourner tout équipement pour réparations.
  • Page 12 1111 W. 35th Street • Chicago, IL 60609 USA (773) 869-1234 • www.tripplite.com 200608085 93-2569...
