Install The Stand - Samsung UN46C6800UFXZA User Manual

6 series; 6800 series.
Hide thumbs

Advertisement

See separate guide for installing the stand.
Stand (1EA)

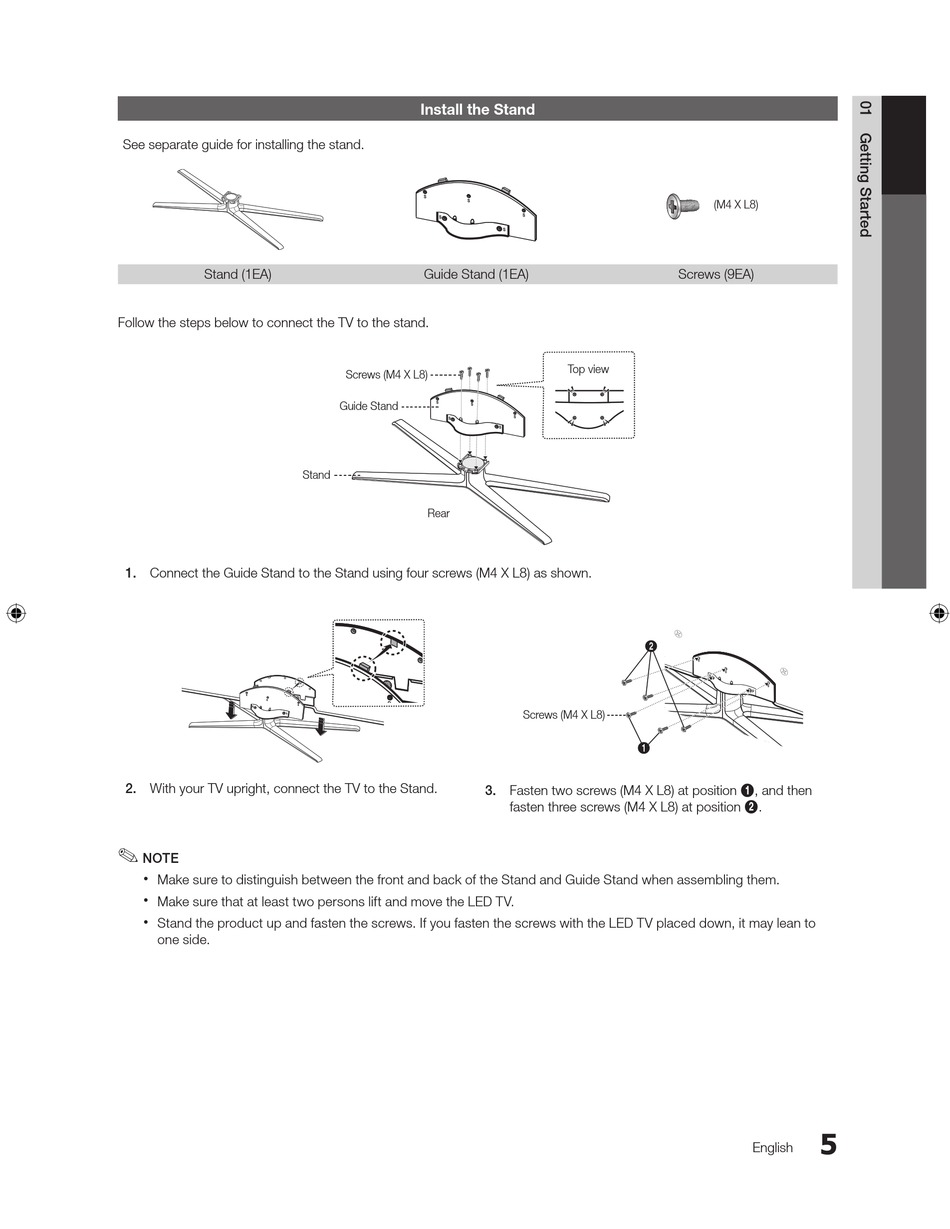

Follow the steps below to connect the TV to the stand.
1. Connect the Guide Stand to the Stand using four screws (M4 X L8) as shown.
2. With your TV upright, connect the TV to the Stand.
NOTE
x
Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
x
Make sure that at least two persons lift and move the LED TV.
x
Stand the product up and fasten the screws. If you fasten the screws with the LED TV placed down, it may lean to
one side.

Install the Stand

Guide Stand (1EA)
Screws (M4 X L8)
Guide Stand
Stand
Rear
Top view
2
Screws (M4 X L8)
1
3. Fasten two screws (M4 X L8) at position 1, and then
fasten three screws (M4 X L8) at position 2.
(M4 X L8)
Screws (9EA)
5
English
