- Page 1 Printing Product Guide 2003 - 2004 M P M M I N I P R I N T E R M E C H A N I S M E M B E D D E D U N I T...
-
Page 2: Global Network
The EP-101 heralded the start of EPSON’s multi-faceted business expansion, giving rise to many other products or “sons”. In fact, the name EPSON is a combination of the EP from the EP-101 and SON, EPSON, a name associated with unique high quality products around the world. - Page 3 These began more than ten years ago, with the declaration that the company would stop using CFCs. Other examples include the reduction of CO facilities, reduction of waste materials, and recycling. This careful attention to the environment has enabled a number of EPSON factories to acquire ISO14001 certification. JQA-E-80015...
- Page 4 Inkjet rolls, and offer the possibility of color output (not just black, red, or purple, as is the case today). EPSON’s expertise in inkjet technology, combined with its understanding of the demands of the customer’s environment, means that it is in a...
-
Page 5: Table Of Contents
You Can Get The Ideas and Power in EPSON Mini Printers Mini Printer Mechanism and TMs let you easily create new system architecture for a wide range of applications and technologies. Just look on the charts, and you can find the best one. -

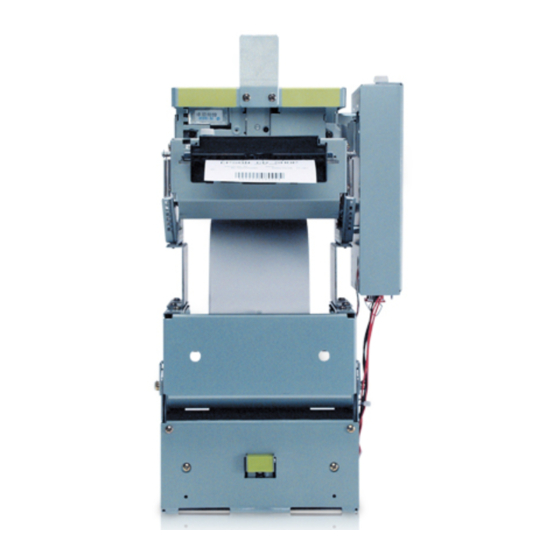

Page 6: Eu-T500 Series 6
EPSON Advanced Printer Drivers, and many new ideas and functions. EPSON Embedded Units are sure to provide you with a rich environment for self-service terminal design innovation in both hardware and applications. - Page 7 , the ever-adaptable EPSON advanced printer drivers make it so easy to develop applications software, saving you time and money. And that's not all. In addition to printer drivers, the EPSON Advanced Printer Drivers help keep your system running with an invaluable status monitor and maintenance counter.
-
Page 8: Eu-T400 Series
High Reliability and Security High reliability – MCBF: 37 million lines EPSON’s superb reliability provides long-term maintenance-free operation with an MCBF of 37 million lines. Automatic retracting function The optional Cut Sheet Retracting Module can prevent loss of personal data and enables safer coupon and receipt issuing. -
Page 9: M/Ba-T500 Series
PS-180. By attaching the connector cable unit DC-T500, you can use the EPSON standard power supply unit PS-180. This means that you do not have to design a new power supply unit for the EU and BA series by yourself. -
Page 10: T Hermal Printers
The simplicity of the paper path mechanism makes paper refills and maintenance easy. EPSON offers a wide variety of thermal printers. You're sure to find one for your application needs. - Page 11 The drop in mechanism is more convenient than ever before. Ultra thin autocutter (M-T53IIA / T123A only) EPSON’s new autocutter is extremely thin, only 6 mm. It keeps mechanism height as without. Durability of the autocutter is 0.3 million cuts.
-
Page 12: M-T245
Compact 5 V Thermal Line Printer Choice of paper path Both curved and straight paper paths are available, enabling the printer to be laid out in either configuration. High reliability in a small package Withstands heavy usage due to its sturdy steel frame. The exceptionally quiet thermal head quickly produces quality text. -
Page 13: M-150 Series
High speed, simultaneous printing of multiple copies, low running costs, easy maintenance: these are just some of the features of impact printers. Impact printers are especially suited to check endorsement and validation applications. With an extensive impact printer product line, EPSON can offer you the best model for your application. -
Page 14: M-290
SLIP PRINTER Shuttle Impact Dot M-290 Easy terminal design The M-290 is smaller and thinner than any other slip printer in the world. For terminal designers, this means greater ease and freedom of design and superior product innovation. Beautiful print quality The high-quality print is extremely clear and legible every time. -
Page 15: M-U110 Series
Mass Approx. 430 g 1 -STATION PRINTER Serial Impact Dot High-performance printer for ECR and CAT applications Fast printing Bi-directional and logic-seeking control are capable of delivering high-speed output of 4.2 lines per second (lps) for 30 columns (58mm) or 3.3 lps for 42 columns (76mm). -
Page 16: M-780
Serial Impact Dot M-780 The fastest printing in the two-station printer class The highly reliable M-780 is the fastest printer in the two-station printer class. Saves end-user’s running cost Helps save end-user running costs by using inexpensive 38-mm roll paper. -
Page 17: Specifications Specifications
(Paper Roll Equipped Model) Approx. 5.5 kg Mass Power Supply (option) Cut Sheet retracting function Factory Options Multilingual Font Set DC-T500 *Please contact your EPSON representative for unit configuration. 1 Station Printer Item Model M-T203 Printing Method Thermal line Number of total dots... - Page 18 SPECIFICATIONS SPECIFICATIONS 1 Station Printer Item Model M-T53 A Printing Method Thermal line Number of total dots 288 dots / line 6 dots / mm Resolution 48 mm Printing width Printing Speed 50 mm / sec. max. (at 7.5 V) Paper feeding pitch 0.083 mm...
- Page 19 1 Station Printer Item Model M-180 Printing Method Printing Format Font 24 columns Column capacity 1.7 (W) x 2.6 (H) mm 1.4 (W) x 2.6 (H) mm Character size Line spacing 2.0 mm Column spacing 144 dots / line Number of total dots 1.7 lines / sec.
- Page 20 SPECIFICATIONS SPECIFICATIONS 1 Station Printer Item Model M-260 Printing Method Printing Format Font Column capacity Character size 4.2 mm (In case of 7 x 7 font and 3 dots / line paper feed) Line spacing Column spacing Number of total dots Printing Speed 2.3 lines / sec.
- Page 21 8.0 x 10 lines 108.0 (W) x 96.0 (D) x 53.0 (H) mm Approx. 400 g 2 Station Printer M-780 Serial impact dot matrix 7 x 9 18 columns x 2, Validation: 42 columns 1.3 (W) x 3.1 (H) mm 4.7 mm...
-
Page 22: Inkjet Printer
(option) Factory Options MICR device Safety Standards *Interface: Dealer option: RS-485, USB, 10 Base T I/F, Please contact your EPSON representative TM-J7500 / J7600 Serial Inkjet dot matrix (180 dpi x 180 dpi) 12 x 24 / 9 x 17 Receipt: 82.5 mm: 42 / 56, 76 mm: 40 / 53,... - Page 23 186 (W) x 298 (D) x 185 (H) 5.8 kg VCCI class A, FCC class A, CE marking, AS / NZS 3548 PS-180 MICR device, Endorsement Printer (E / P) UL / CSA / TÜV (EN60950) TM-H5000II Receipt: Thermal line printing Slip: 9-pin serial impact dot matrix...
- Page 24 EMC standards Power supply (option) Factory Options Safety Standards *Interface: Dealer option: RS-485, USB, 10 Base T I/F, Please contact your EPSON representative Thermal Line Printer Thermal line printing 9 x 17 / 12 x 24 56 / 42 1.1 (W) x 2.1 (H) / 1.5 (W) x 3.0 (H)
- Page 25 123 (W) x 201 (D) x 124 (H) 0.8 kg VCCI class A, FCC class A, CE marking, AS / NZS 3548 class B – Impact Dot Matrix Printer TM-U950 9-pin, serial impact dot matrix 7 x 9 / 9 x 9 Receipt (Journal): 40 / 30, Slip: 88 / 66 1.3 (W) x 3.1 (H) / 1.6 (W) x 3.1 (H)
- Page 26 (option) Factory Options Safety Standards UL / CSA / TÜV (EN60950) *Interface: Dealer option: RS-485, USB, 10 Base T I/F, Please contact your EPSON representative Impact Dot Matrix Printer TM-U325 9-pin, serial impact dot matrix 40 / 42 or 33 / 35...
- Page 27 Impact Dot Matrix Printer TM-U230 9-pin, serial impact dot matrix 7 x 9 / 9 x 9 40 / 42 or 33 / 35 1.2 (W) x 3.1 (H) / 1.6 (W) x 3.1 (H) 95 Alphanumeric, 37 International 128 x 8 Graphic Traditional / Simplified Chinese 16 or 17.8 cpi / 13.3 or 14.5 cpi...
- Page 28 EPSON worldwide site http://www.epson.com All features and specifications described are subject to change without notice. EPSON and ESC/POS are registered trademarks of SEIKO EPSON Corporation. Windows and Windows NT are registered trademarks of Microsoft Corporation in the United States and/or other countries.
