- Page 1 BE817 IFF5050FF INSTALLATION AND USER INSTRUCTIONS You must read these instructions prior to using the appliance and retain them for future reference.
-
Page 2: Table Of Contents
Contents Introduction & safety warnings................2 Electrical requirements ..................3 Transportation instructions.................4 Installation instructions - guidelines ..............5 Getting to know your fridge / freezer..............6 Suggested arrangement of food in the fridge / freezer ........7 Temperature control and adjustment ..............8 Getting Started....................9 Storing frozen food.....................9 Freezing fresh food ..................10 Making ice cubes .....................10 Defrosting ......................11... -
Page 3: Introduction & Safety Warnings
• This fridge/freezer must only be used for its intended purpose i.e the storing and freezing of edible foodstuff. • Do not dispose of the appliance on a fire. At Belling, the care and protection of our environment is an ongoing commitment. This appliance which is among the latest range introduced is particularly environment friendly. -
Page 4: Electrical Requirements
Should the mains lead of the appliance become damaged or should it need replacing at any time, it must be replaced by a special purpose made mains lead which can only be obtained from a Belling Authorised Service Agent. WARNING! THIS APPLIANCE MUST BE EARTHED If the fitted moulded plug is not suitable for your socket, then the plug should be cut off and an appropriate plug fitted. -
Page 5: Transportation Instructions
Do not allow children to play with the appliance or tamper with the controls. Belling declines to accept any liability should the instructions not be followed. • This appliance is not intended for use by persons (including children) with... -
Page 6: Installation Instructions - Guidelines
INSTALLATION INSTRUCTIONS 1. The space in the room where the appliance is installed must not be smaller than 10 cubic metres. 2. See for detailed Installation Instructions including reversing door opening direction. 3.This appliance has been designed to operate in ambient temperatures up to 32 degrees C (90 degrees F) and is equipped with Advanced Electronic Temperature Control System [AETCS] which ensures that at the advised setting [4 - four on the knob] the frozen food in the freezer will not defrost even if the... -
Page 7: Getting To Know Your Fridge / Freezer

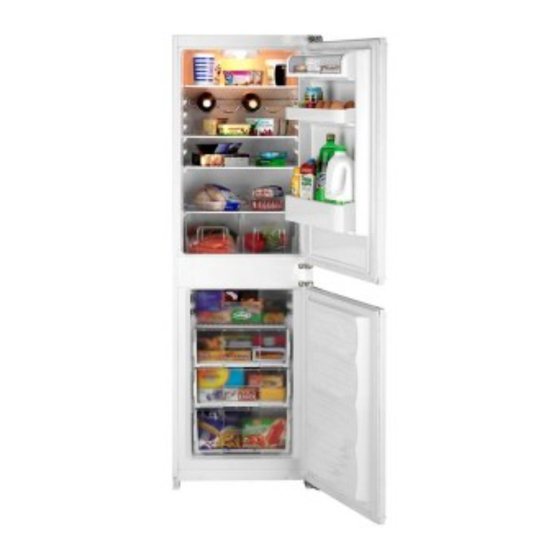

Getting to know your appliance DAIRY COMPARTMENT TEMPERATURE SETTING EGG TRAY KNOB INTERIOR LIGHT DOOR SHELF WINE RACK CABINET SHELVES BOTTLE SHELF DEFROST WATER COLLECTION CHANNEL SALAD CRISPER FREEZER FAN FAST FREEZE COMPARTMENT FROZEN FOOD COMPARTMENTS... -
Page 8: Suggested Arrangement Of Food In The Fridge/Freezer
SUGGESTED ARRANGEMENT OF FOOD IN THE FRIDGE/FREEZER Arrangement Examples (See diagram) 1. Baked, chilled cooked food, dairy products, cans. 2. Wine, 3. Meat, sausages, cold cuts. 4. Fruit, vegetables, salads. 5. Frozen food and freezing of fresh food. 6. Frozen food. 7. -
Page 9: Temperature Control And Adjustment
TEMPERATURE CONTROL AND ADJUSTMENT Operating temperatures are controlled by the setting knob (see diagram) located on the ceiling of fridge compartment. Settings may be made from min, 1 ... 6, max, max being the coldest position. When the appliance is switched on for the first time, the setting knob should be adjusted so that after 24 hours, the average fridge temperature is no higher than +5 C (+41 F). -
Page 10: Getting Started
GETTING STARTED Before you start using the fridge/freezer check that: 1. The interior is dry and air can circulate freely at the rear of the cabinet. 2. Clean the interior as recommended under "CLEANING AND CARE." 3. Insert the plug into the wall socket and switch on the electricity supply. •... -
Page 11: Freezing Fresh Food
FREEZING FRESH FOOD Please observe the following instructions to obtain the best results. Do not freeze too large a quantity at any one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible. Do not exceed the freezing capacity of your appliance in 24 h which is 4 kg (9 lb) Placing warm food into the freezer compartment causes the refrigeration compressor to operate continuously until the food is frozen solid. -
Page 12: Defrosting
DEFROSTING A) FRIDGE COMPARTMENT The fridge compartment defrosts automatically. The defrosting water runs to the drain tube via a collection container at the back of the appliance (1). (see diagram) During defrosting water droplets may form at the back of the fridge compartment where concealed evaporator is located. -
Page 13: Cleaning And Care
CLEANING AND CARE ** We recommend that you switch off the appliance at the socket outlet and pull out the mains plug before cleaning. ** Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning. ** Use luke warm water to clean the cabinet of the appliance and wipe it dry. -
Page 14: Replacing The Interior Light Bulb
REPLACING THE INTERIOR LIGHT BULB (See diagram) Should the light fail to work, proceed as follows. 1. Switch off at the socket outlet and pull out the mains plug. • You may find it useful to remove shelves for easy access. 2. -
Page 15: Do's And Don'ts
DO'S AND DON'TS Clean and defrost your appliance regularly (See "Defrosting") Keep raw meat and poultry below cooked food and dairy products. Take off any unusable leaves on vegetables and wipe off any soil. Leave lettuce, cabbage, parsley and cauliflower on the stem. Wrap cheese firstly in greaseproof paper and then in a polythene bag excluding as much air as possible. -
Page 16: Energy Saving Tips
ENERGY SAVING TIPS 1- Ensure your appliance is installed in a well ventilated area. If the ambient temperature is low (but in no case lower than 5 degrees C), then the energy saving will be more. In this case, check temperatures of fridge and freezer compartments with an accurate thermometer and lower the thermostat setting (towards 1) if necessary. -
Page 17: Reversing The Doors
REVERSING THE DOORS Top Door 1.Unscrew top hinge (4). 2.Carefully remove the top door. 3.Unscrew lower hinge (6) 4.Remove plastic plugs (10 &11). 5.Refit top hinge (4) as lower hinge (14) on the left hand side. 6.Replace top door 7.Refit lower hinge (6) as top hinge (16) on the left hand side. Lower door 1.Unscrew top hinge (7) 2.Carefully remove the lower door. - Page 18 REVERSING THE DOORS...
- Page 19 min. 200 cm 86.5 min. 35 mm min. 200 cm...
- Page 20 min.35 mm 200 cm 2 200 cm 2...
- Page 22 18 mm 1 mm...
- Page 23 2 mm 2 mm 2 mm Ensure 2 mm gaps are obtained, adjust if necessary.
-
Page 24: Guarantee Details
• The cost of functional replacement parts, but excluding consumable items. • The labour costs of a Belling approved repairer to carry out the repair. What is not covered? • Transit, delivery or accidental damage or misuse and abuse. -
Page 25: How To Obtain Service
on the last page it will help us assist you when reguesting problem solving section This product bears the selective sorting symbol for waste electrical and electronic Recycling equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. -
Page 26: Tecnical Data
Technical data BE817 PERFORMANCE Frost Free Fridge Freezer Energy efficiency class Energy consumption - Kwh/year Net storage - vol fresh food ltrs (cu.ft.) 155 lt. (5.5) Net storage - vol frozen food ltrs (cu.ft.) 62 lt. (2.2) Total net vol - ltrs (cu.ft.) 217 lt. -
Page 27: Wiring Diagram
WIRING DIAGRAM... -
Page 28: Customer Care
Enter appliance numbers here for future reference: Model No Serial No Please ensure you have the above details (Model No and Serial No) to hand when calling Belling Customer Care. They are essential to booking your call. @dimpco.ie Service email: service @ dimpco.ie...
