Summary of Contents for Belling BE807

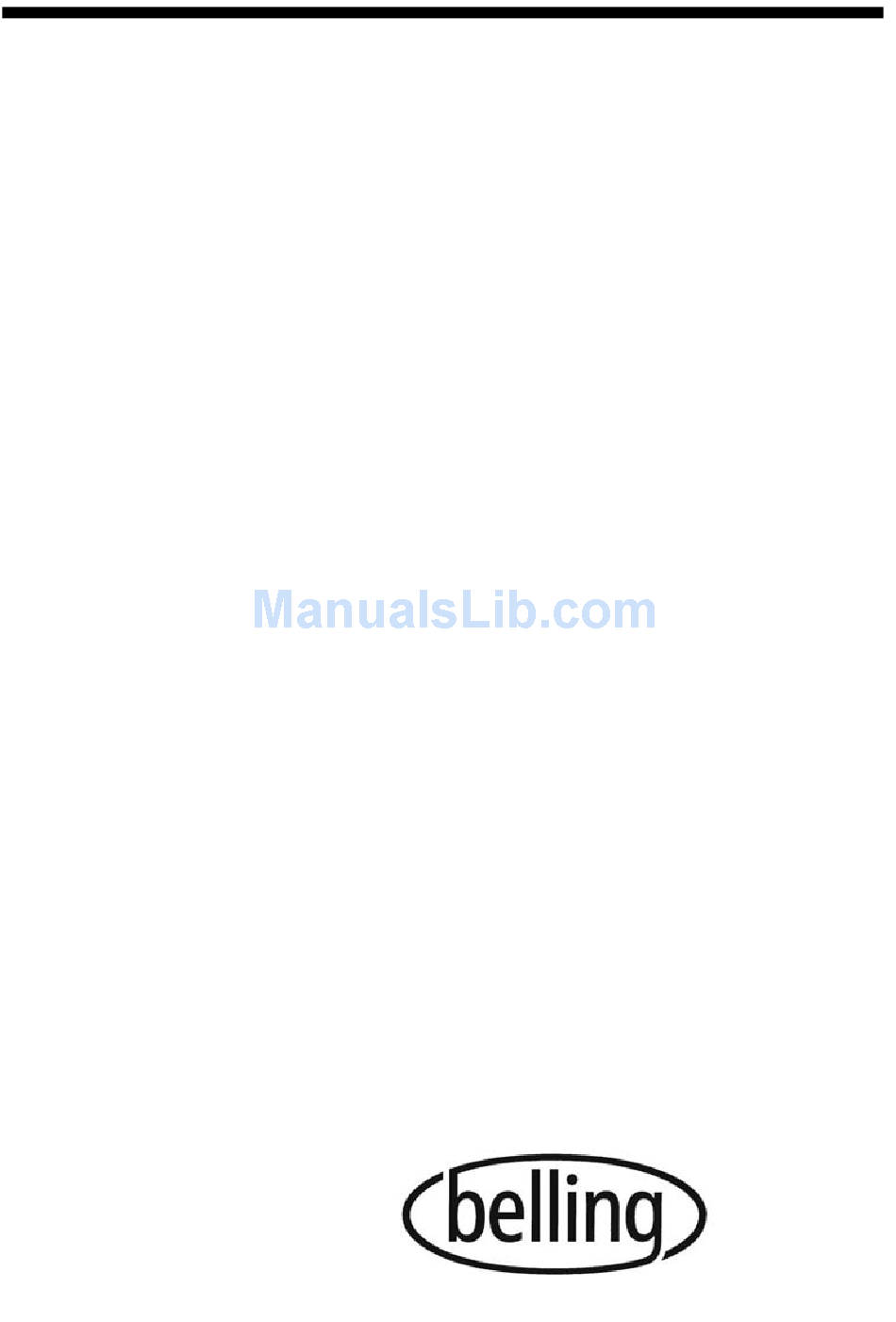

- Page 1 BE807 BE811 Integrated fridge/freezer INSTALLATION AND USER INSTRUCTIONS Instructions for Use...
-
Page 2: Table Of Contents
Integrated fridge/freezer Thank you for purchasing a Belling product. Please read this instruction book thoroughly before attempting to use the product. Please read these instructions carefully before installing or using this appliance. This appliance should be mounted and installed in compliance with these instructions, current standards and regulations. -
Page 3: Required Air Circulation
Installation Dimensions and Required Air Circulation The rear wall of the appliance gets warm during the operation of the appliance and water evaporates from the drain pan on the compressor. You must therefore provide for adequate air circulation on the rear of the appliance. •... -
Page 4: Reversing The Door Opening
Reversing the door opening If you find the door opening direction of your appliance inconvenient, you can reverse it. The necessary holes on the opposite side of the appliance cabinet have been made in the factory and plugged. • Remove the top hinge cover of the refrigerator door. Remove the door by unscrewing the hinge (the door is supported only by the bottom hinge) and remove the hinge washer. - Page 5 1 Top hinge cover of the refrigerator door 7 Bottom hinge of the freezer door 2 Top hinge of the refrigerator door 8 Bottom hinge pivot of the freezer 3 Top fixing strip door 4 Bottom hinge of the refrigerator door 9 Slider guide 5 Top hinge of the freezer door 10 Corner cap with a hole...
-
Page 6: Installing The Appliance
Installing the Appliance WARNING Before mounting the appliance into the kitchen unit, disconnect the power supply and set the thermostat knob to STOP (0) position. • Push the appliance for some 38 mm into the kitchen unit and allow at least 4 mm free space on both sides between the appliance and the side walls of the kitchen unit (Fig. - Page 7 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Instructions for Use...
- Page 8 Connection to Power Supply Connect the appliance with the cable and plug to a suitable 13 amp socket which is properly earthed. Required nominal voltage and frequency are indicated on the rating plate. The connection to the mains supply and earthing have to be made according to current standards and regulations.
-
Page 9: User Instructions
User Instructions Integrated fridge/freezer This integrated fridge/freezer is for domestic use only. The upper part of the appliance is the refrigerator and is used for storing fresh foods at temperatures of 0°C and higher. The lower part is the freezer and is used for freezing fresh foods and storing frozen foods for longer periods of time (up to one year, depending on the kind of foods you store). -
Page 10: Before Use
Before Use • Before connecting the appliance to the mains supply, let it stand for about 2 hours, to reduce possibilities of malfunctions in the cooling system due to transport and handling. • Clean the appliance thoroughly, especially inside (See Cleaning and Maintenance). - Page 11 Important • If you have bought this appliance to replace an old one equipped with a lock that cannot be opened from inside (lock, bolt), make sure that the lock is broken. This will make it impossible for children to lock themselves inside the appliance and suffocate.
-
Page 12: Disposing Of The Appliance
Disposing of the Appliance • To minimise the risk of injury to children please dispose of your product carefully and safely. Remove both doors. Remove the mains cable (where fitted) by cutting off flush with the appliance and always ensure that no plug is left in a condition where it could be connected to the electricity supply. -
Page 13: Description Of The Appliance
Description of the Appliance Refrigerator (A) The refrigerator is used for storing fresh foods for few days. Shelf (1) The shelves can be placed on the guides inside the appliance. They are secured against pulling out. If you want to remove a shelf, slightly lift up the back part and pull it out. - Page 14 Freezer (B) Freezer is used for freezing fresh foods and for storing already frozen foods. Freezing Compartment (4) is used for freezing fresh foods. Storing Compartment (5) is used for storing packages of frozen foods. Defrost Water Outlet (6) (See Cleaning and Maintenance). Instructions for Use...
-
Page 15: Operation Control
Operation Control The appliance is controlled with the thermostat knob, situated in the upper right of the refrigerator. Turn the knob clockwise from STOP (0) position towards 7 and backwards. Temperature Selection • Higher settings on the knob (towards 7) mean lower temperatures (colder) in all compartments of the appliance. -
Page 16: Storing Fresh Foods
Storing Fresh Foods Proper use of the appliance, adequately packed food, correct temperature and taking into account hygienic precautions will substantially influence the quality of the food stored. • Foods to be stored in the refrigerator should be properly packed as to prevent mixing various moisture degrees and odors (in polyethylene bags or sheet, aluminium foil, wax paper), or stored in covered containers or bottles. -
Page 17: Freezing Fresh Foods
Fresh Food Storage Time in the Refrigerator Article of food Storage time (days) 10 11 12 13 14 Butter Eggs Meat: fresh uncut chopped smoked Fish Marinade Vegetables Cheese Sweets Fruit Prepared dishes Legend: + recommended storage time = possible storage time Freezing Fresh Foods •... -
Page 18: Storing Frozen Foods
• The switch is on, when the coloured mark is visible or is at position I, and off, when you don't see the mark or at position 0. • The next time you want to freeze fresh foods, repeat the freezing procedure and be careful that packages with fresh foods do not touch frozen packages. -
Page 19: Defrosting Frozen Food
Defrosting Frozen Food Partially thawed or defrosted foods should be used as soon as possible. Cold air preserves the food but it does not destroy microorganisms which rapidly activate after defrosting and make foods perishable. Partial defrosting reduces the nutritional value of foods, especially of fruits, vegetables and ready-made meals. -
Page 20: Maintenance And Cleaning
Maintenance and Cleaning Automatic Defrosting of the Refrigerator There is no need to defrost the refrigerator, because ice depositing on the inner back wall is defrosted automatically. Manual Defrosting of the Freezer When the frost and ice layer in the freezer is 3-5 mm thick, you should clean the freezer. - Page 21 • Do not forget to clean also the defrost water receptacle above the refrigerator compressor (do not remove the receptacle). After cleaning, connect the appliance to power supply and reload the packages. Switch Off the Appliance When Not In Use If you do not intend to use the appliance for a longer period, set the thermostat knob to the STOP (0) position, disconnect the power supply, take out the foods and defrost and clean the appliance.
-
Page 22: Trouble-Shooting Guide
Trouble-Shooting Guide The Appliance Fails to Operate After connecting to the Mains Supply • Check the supply in the outlet socket and make sure the appliance is switched on (thermostat in operating position). Continuous Operation of the Refrigerating System • The door was frequently opened or it was left opened for too long. •... -
Page 23: Bulb Replacement
The Freezer Door is Hard to Open If you want to open the door that has just or recently been closed, you may find it hard to open. The reason why this happens is, that when you open the door, warm air gets into the appliance and when it is cooling, the underpressure seals the door. -
Page 24: Calling For Service
Before contacting a service agent, please note the following details about your appliance. Date of Purchase _____________ Also note your Postcode _______ Model number ________________ Serial Number _______________ Belling Appliances Ltd., Mexborough, South Yorkshire S64 Part No. GBE807001/11/01 HZDI 2526 648116 (121) en Instructions for Use...
