Related Manuals for Belling BR98WH
Summary of Contents for Belling BR98WH

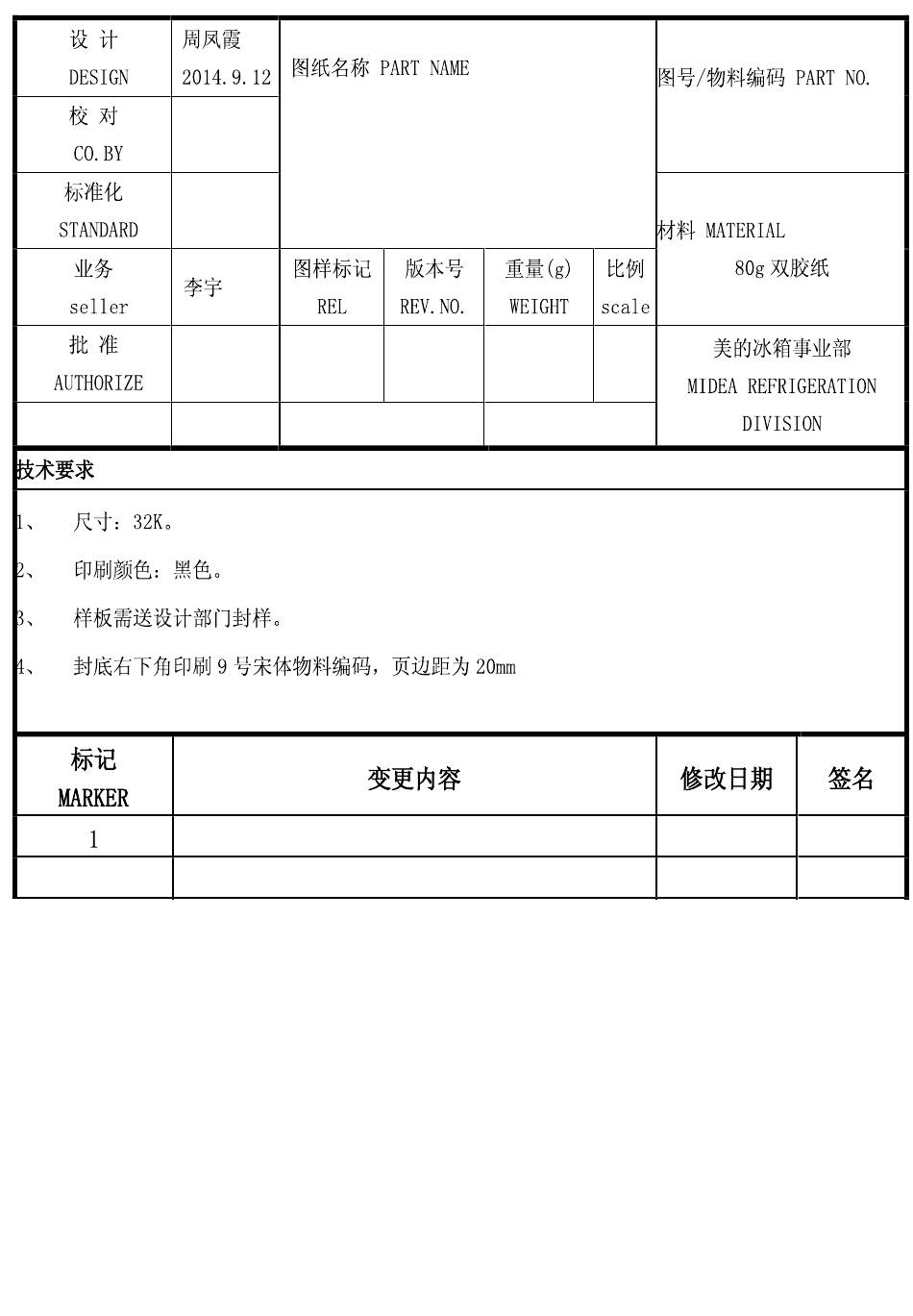

- Page 1 Belling BR98WH 16131000A00714 (52001004000F CE-BC100-J) 说明书 此次更改在完善图纸增加封底一维码，即日起开始执行 2017.6.1 严岩...
-
Page 2: Refrigerator-Freezer
Instruction Manual REFRIGERATOR-FREEZER MODEL: BR98WH... -
Page 3: Instructions For Installation
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. -
Page 4: Cautions For Safety
to avoid being damaged, dampened and rusted. Cautions for Safety 1.Before the refrigerator is plugged in chech in the electric voltage to be used fit is the same as the rated voltage. The power plug should have its independent socket, adapter may cause the socket overheat. - Page 5 WARNING: Keep flammable materials and vapors, such as gasoline, away form refrigerator-freezer. Failure to do so can result in death, explosion, fine or burns. To ensure proper ventilation for your refrigerator-freezer, allow for 200mm space on each side between walls, 200mm space between back of your refrigerator-freezer and the wall, and 300mm space between counter top and the roof or ceiling.
- Page 6 The dimensions of refrigerator are shown in the figure below Instructions for Use 1.When operating the refrigerator for the first time, run it without loading any food until it autos tops at the desired temperature. Usually it takes 2 or 3hours,then set the thermostatic dial at the setting desired and put foods in the refrigerator.
-
Page 7: Cautions For Use
When defrosting remove all food and set the thermostat at “OFF” position. Put the drip tray under the evaporator to collect melted water. After the frost has melted, discard the melted water and dry up the interior of refrigerator. The refrigerator can then be restarted by turning its thermostat to the desired setting. -
Page 8: Maintenance
Maintenance 1.While cleaning the refrigerator. pull out the electric power plug, rub carefully with a piece of cloth soaked with natural cleanser then wipe with clean water. The abrasive cleaning power, alkali cleansers, chemical cloth, thinner, alcohol, acid petroleum product and hot water are not suitable for cleaning the refrigerator, they may damage the painting cover and plastics. - Page 9 compartments to become cold. 4.The surface of the compressor becomes hot: The surface of the compressor may become hot under normal operation. Don’t touch it with hands. Methods of inspecting malfunction If any case of malfunction happens, please inspect and dispel it according to the methods shown in the following table.
- Page 10 Food frozen in Is the thermostatic dial set to the correct position? the refrigerator Have the foods stuff been put too crowded? Compartment Is the refrigerator installed firmly? Noises Has the refrigerator been struck by some other objects? Compressor Are the foods stored too much at one setting? Cannot stop Are the doors opened too frequently or too long? automatically...
- Page 11 it as soon as possible. Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance). For household refrigerating appliances, in normal temperature conditions, please arrange the thermostat at the middle setting. Before loading the appliance with packages of fresh foods, make sure they are cooled to ambient temperature.
- Page 12 Correct Disposal of this product Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
- Page 13 条码仅供参参考，实际扫码按正确的14位新物料编码生成 (文字部份固定不变，前后无空格，黑色印刷） 码制与其它要求按冰箱事业部最新公文要求 SIZE:60*20mm xxxxxxxxxxxxxx:14位新物料编码...
Need help?
Do you have a question about the BR98WH and is the answer not in the manual?
Questions and answers
What number is the coldest
The coldest temperature setting for the Belling BR98WH is achieved by turning the thermostat to the highest setting, not "OFF". The exact numeric value is not provided, but the thermostat should be turned to the desired (coldest) setting after defrosting.
This answer is automatically generated
