ZIR36ND–GE Monogram 36" Built-In All-Refrigerator

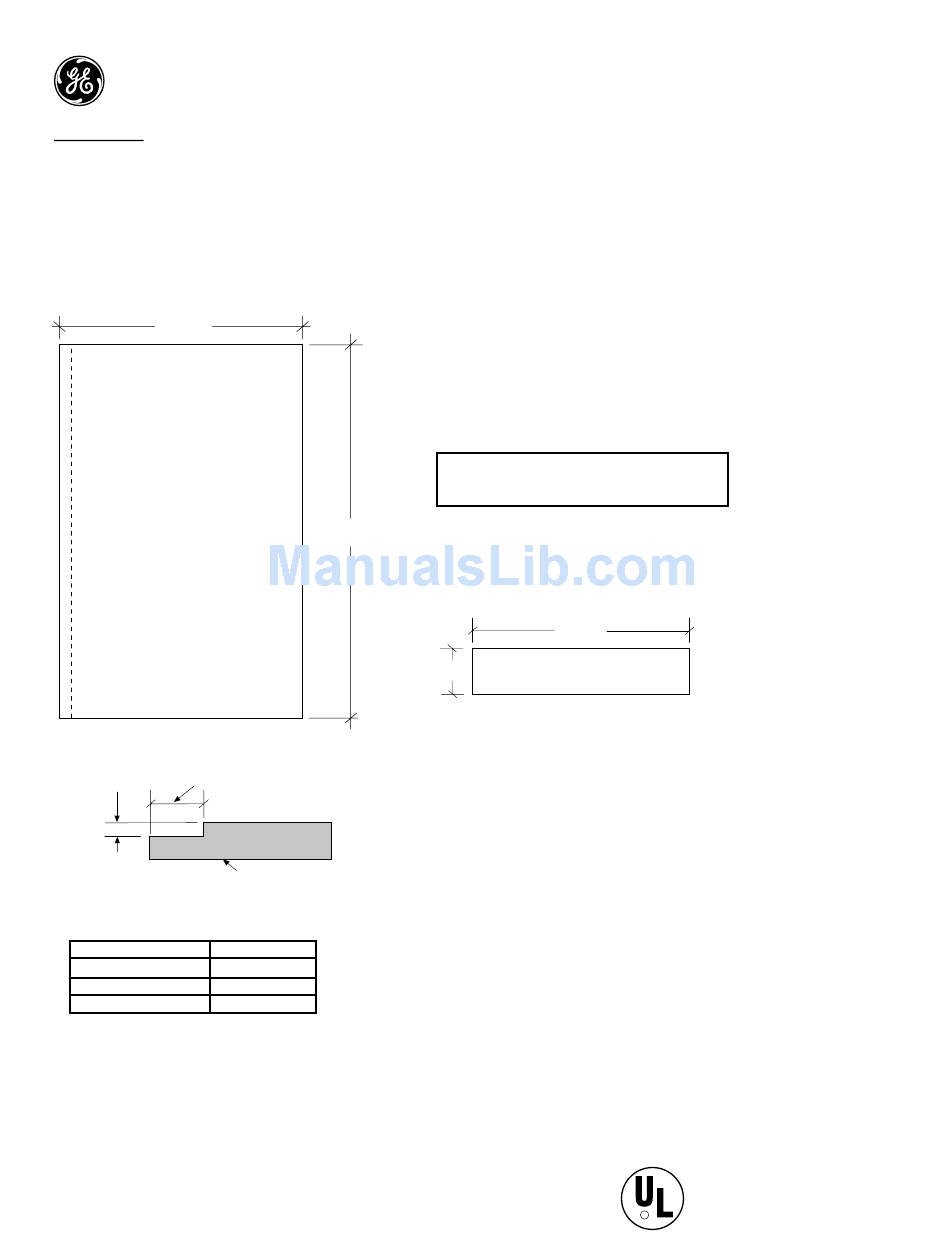

Custom Door Panel Dimensions Using Standard Trim
Using Trim Kit ZKTR36LH or ZKTR36RH
3/4" thick panel with custom handle
35 1/4 "
3/4" Thick
Custom Panel
With Custom
Handle
Rout back side of panel as shown
on the handle side
1-13/16"
1/4"
max
Appearance Side
Installation Height
Dimension A
83-1/2"
84"
84-1/2"
Important: Maintain 1-1/2" min. gap between top of door
and bottom of grille panel.
Specification Created 8/00
ZIR36N Refrigerator
ZIF36N Freezer
• The ZKTR36LH (or ZKTR36RH) trim kit installed together with a ZKHTR1 custom
68-15/16
7-1/2"
8-1/2"
8-3/4"
handle kit provides for the installation of 3/4" thick custom door and grille
panels with a custom handle of your choice. Order ZKHTRSS1 for a tubular
stainless steel handle. Cut panels to size, rout the handle side of the panel as
shown below and install.
Important: Maximum panel is 50 pounds
Custom Grille Panel
35 1/4"
A
3/4" Thick Panel
Grille Panel height can vary to fill installation height.
For answers to your Monogram,
GE Profile Performance Series,
™
GE Profile
™
or GE appliance questions, call
GE Answer Center
®
service, 800.626.2000.
