Monogram.

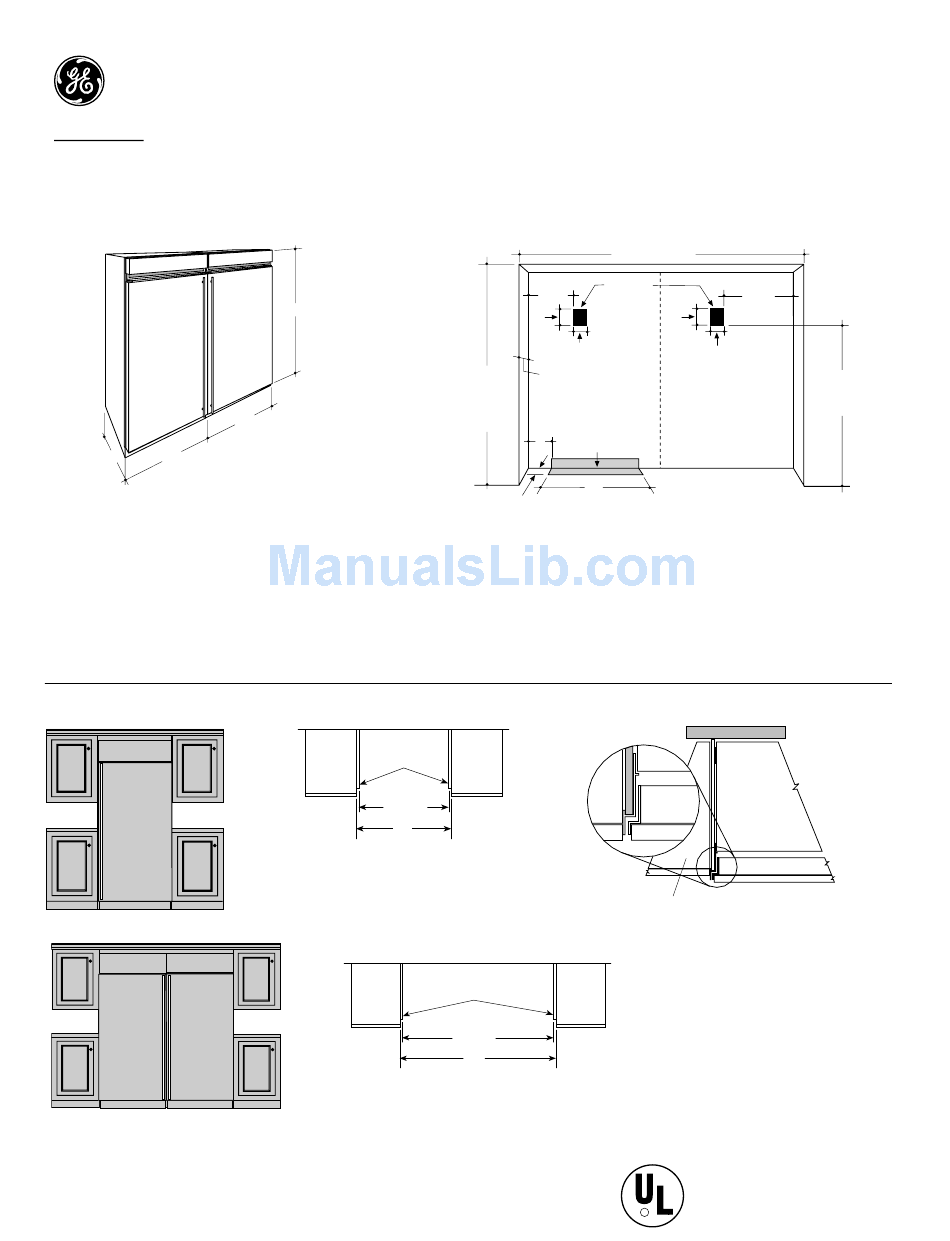

ZIR36ND–GE Monogram 36" Built-In All-Refrigerator
Side By Side Installation of Freezer and Refrigerator
24-3/4"
36"
For a complete food storage center, install a Monogram
Freezer and Refrigerator side by side. For even more
capacity, install two refrigerators and one or two
freezers. Order ZFC1 Trim Kit to cover the side trim
and/or gap between the two products.
• The electrical and water locations must be located as
shown for either type of installation. A separate 115V,
60Hz. 20 amp power supply is recommended for each
product.
Installation Between Base and Wall Cabinet
Refrigerator or Freezer
Refrigerator and Freezer
installed side-by-side
ZFC1 Trim Kit is recommended to cover side trim
and/or gap between the two products.
Specification Created 8/00
84"
36"
1/4" Thick
Side Panels
Finished Dim.
35-1/2"
Rough-In Dim.
36"
Finished Dim.
Rough-In Dim.
*Finished Width
Electrical
7 1/2"
7"
5"
24 3/4" Total
84 1/2" max
Depth
83 1/2" min
Finished
Opening
5"
Water Supply
26"
3 1/2"
Freezer
*72" min. for a flush installation
71-1/2" min. for a semi-flush installation
Note: Additional cutout width may be required when side
panels are used. Add side panel thickness to the finished
cutout to calculate rough-in width.
1/4" Thick
Side Panels
71-1/2"
72"
23 1/2"
7"
5"
Refrigerator
Refrigerator
Cabinet
Refrigerator door
Cabinet
Note: 1/4" thick side panels
can be inserted into the case
trim, making the rough-in the
same as the outside trim
width, 36".
For answers to your Monogram,
GE Profile Performance Series,
™
GE Profile
™
or GE appliance questions, call
GE Answer Center
®
service, 800.626.2000.
Listed by
Underwriters
Laboratories
R
Wall View
74" From Floor
to Bottom
of Electrical
®
