Monogram.
™
ZIR36ND–GE Monogram 36" Built-In All-Refrigerator

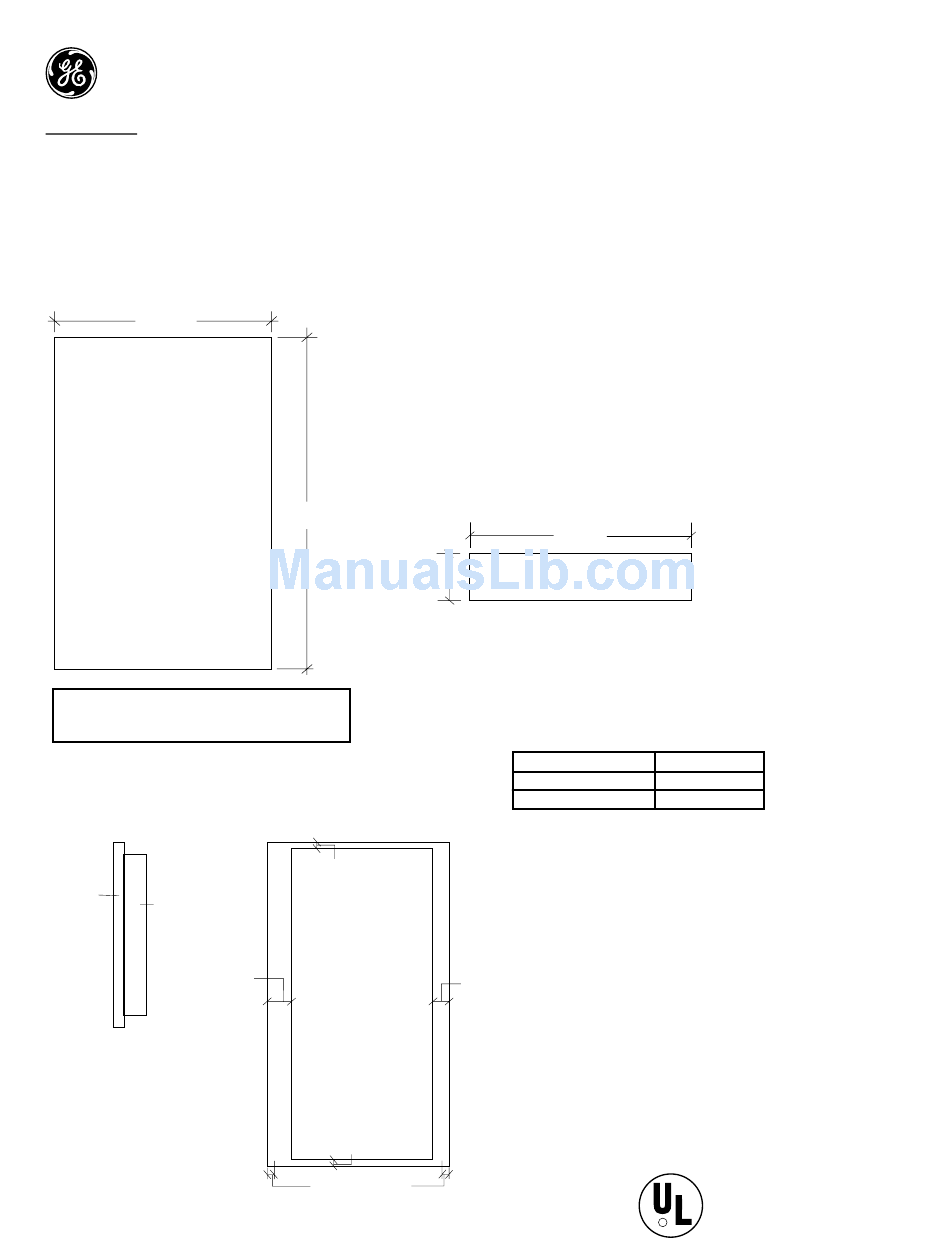

Custom Door Panel Dimensions Using Standard Trim
1/4" thick panels or
Panels secured to 1/4" thick backing
35-1/16"
1/4" Thick
Custom Panel
Important: Maximum panel is 50 pounds
Raised Panel on 1/4" Thick Backing
Using Standard Handles
1/4"
Appearance
Thick
Panel
Backing
2" Clearance
handle Side
Specification Created 8/00
ZIR36N Refrigerator
ZIF36N Freezer
• 1/4" Panel: Cut panels to size.
• Custom handle with 1/4" door panel requires Trim kits ZKHR1 or ZKHRSS1
for tubular stainless steel handles.
Standard Trim with Panels secured to 1/4" thick backing
• Applying a raised panel design to a 1/4" thick backing (screws or glued):
Cut 1/4" thick panels to size. Fabricate the raised panel to permit at least
2" fingertip clearance of the standard handle. 1-1/4" clearance from the
hinge side to avoid striking adjacent cabinetry and 5/16" from the top and
bottom edges to allow for the trim flange.
Note: ZKHTR1 custom handle kit cannot be used in this configuration.
68-7/8"
8"
The grille panel frame is factory assembled for 84"
installation height. If installation height varies, order
ZGC2 trim kit that provides optional side trim pieces. Cut
grille panel to sizes shown below.
5/16" Clearance
Raised Panel
1-1/4"
on 1/4" Thick
Clearance
Backing With
hinge side
Standard
Handles
5/16" Clearance
5/16" Clearance
Custom Grille Panel
35 1/8"
1/4" Thick Panel
Installation Height
Panel Height
83-1/2"
84-1/2"
For answers to your Monogram,
GE Profile Performance Series,
GE Profile
™
GE Answer Center
R
7-1/2"
8-1/2"
®
™
or GE appliance questions, call
®
service, 800.626.2000.
Listed by
Underwriters
Laboratories
