Intel Desktop Board DH55PJ Technical Product Specification
2.2.1

Back Panel Connectors

Figure 9 shows the location of the back panel connectors for the board.
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
38
Item Description
A PS/2 keyboard/mouse port
B USB ports
C VGA port
D DVI-D connector
E USB ports
F LAN
G USB ports
H Audio line in
I Audio line out
J Mic in

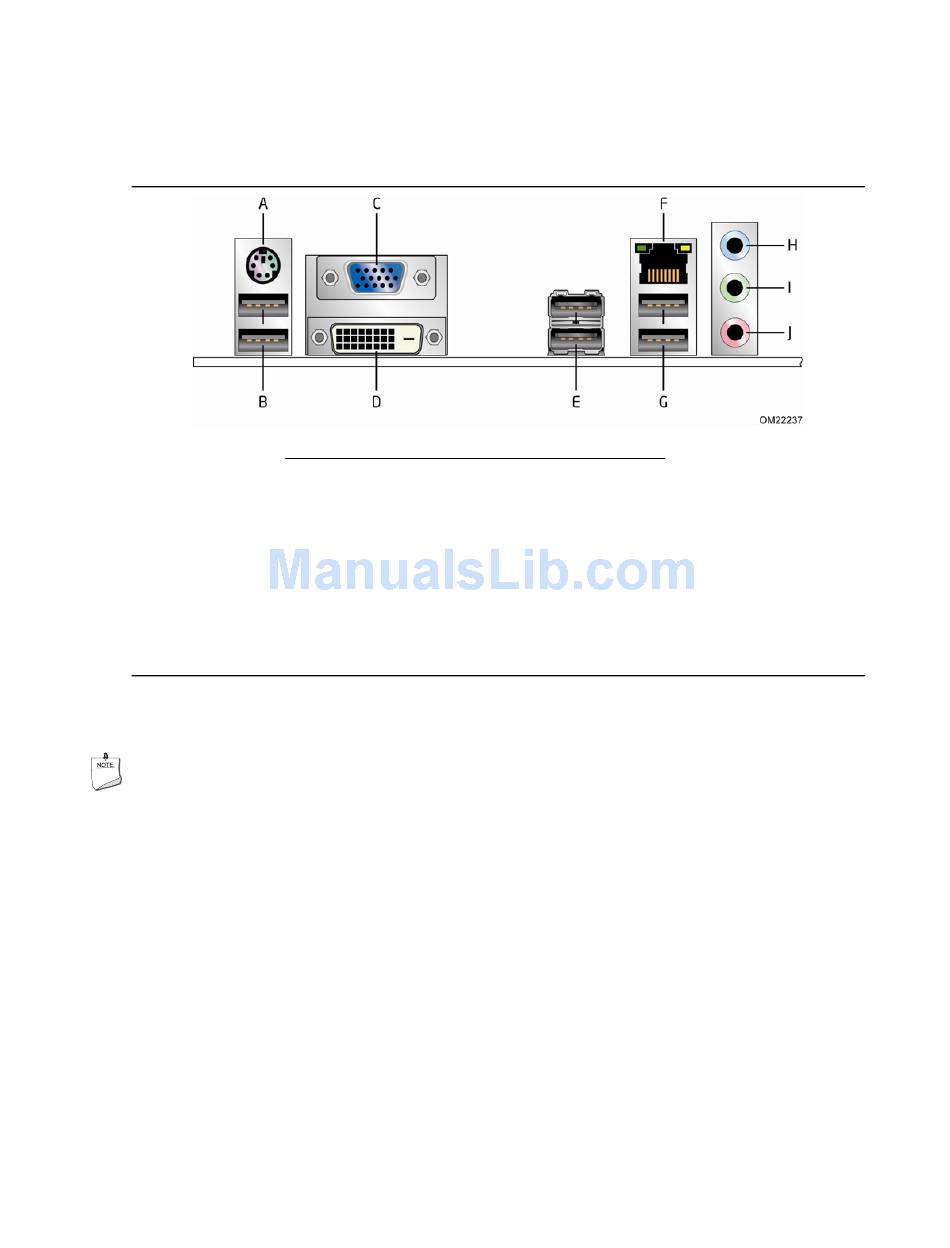

Figure 9. Back Panel Connectors
