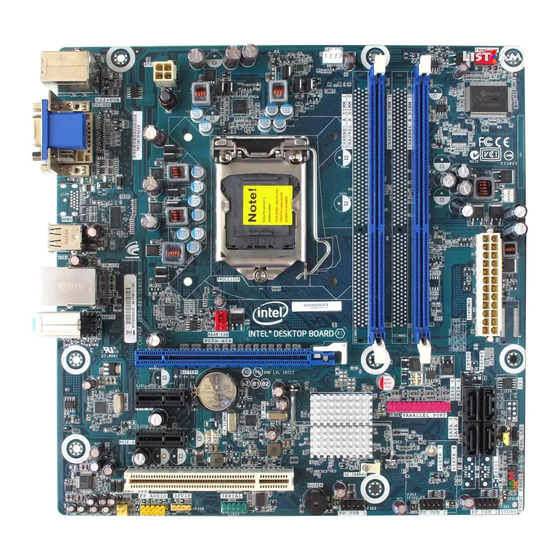

Intel® Desktop Board
DH55PJ
Specification Update
December 2011
Order Number: E96959-005
The Intel
Desktop Board DH55PJ may contain design defects or errors known as errata, which may cause the product to deviate
®
from published specifications. Current characterized errata are documented in this Specification Update.
