Technical Reference
2.4
Mechanical Considerations
2.4.1
Form Factor
The board is designed to fit into a MicroATX form-factor chassis. Figure 14 illustrates
the mechanical form factor for the board. Dimensions are given in inches
[millimeters]. The outer dimensions are 9.60 inches by 9.60 inches
[243.84 millimeters by 243.84 millimeters]. Location of the I/O connectors and
mounting holes are in compliance with the ATX specification.

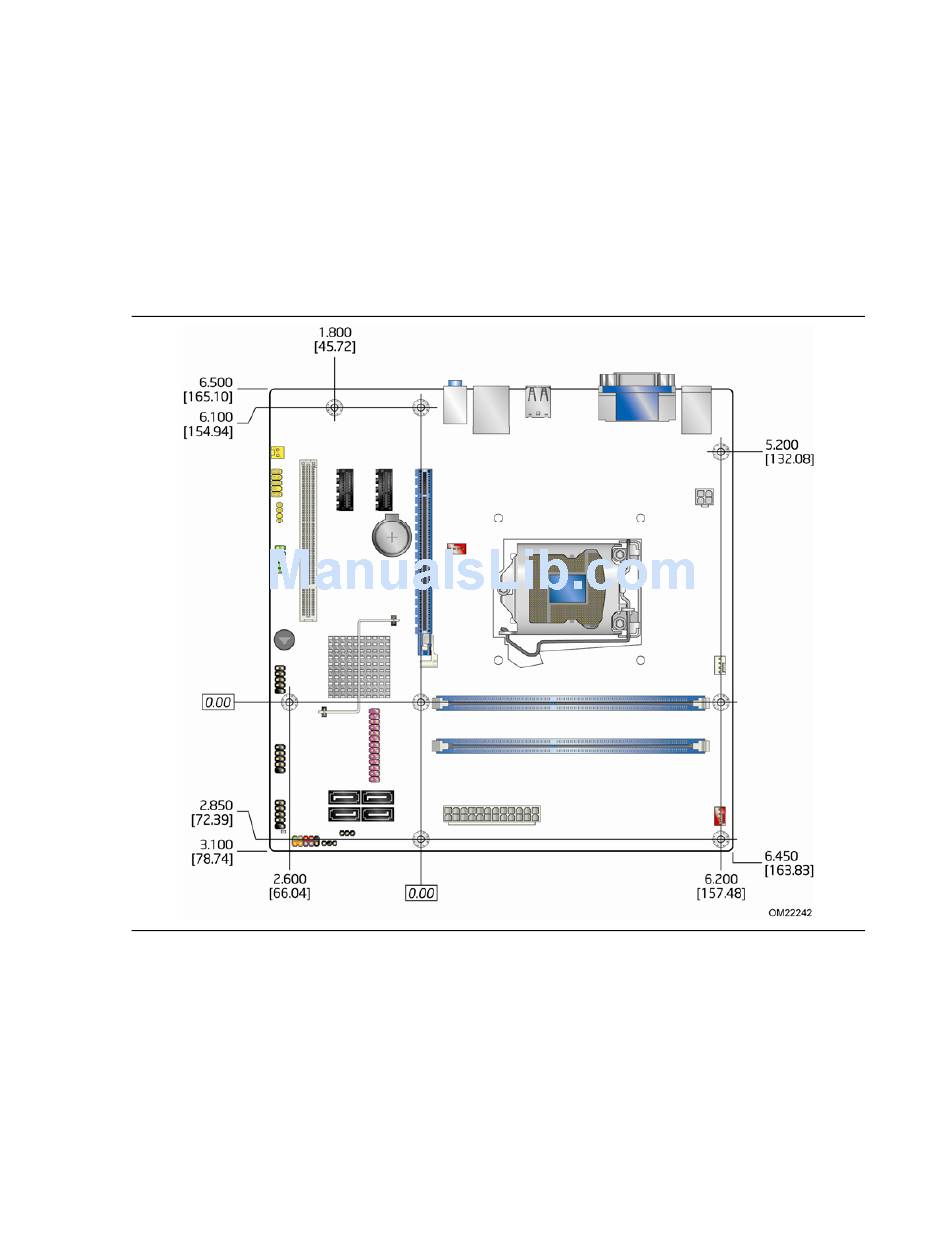

Figure 14. Board Dimensions
51
