4048–00x

HVPS Card Removal

1. Remove the top cover. See
on page 4-8
2. Remove the right side cover. See
Removal" on page 4-13
3. Disconnect the HVPS cable.

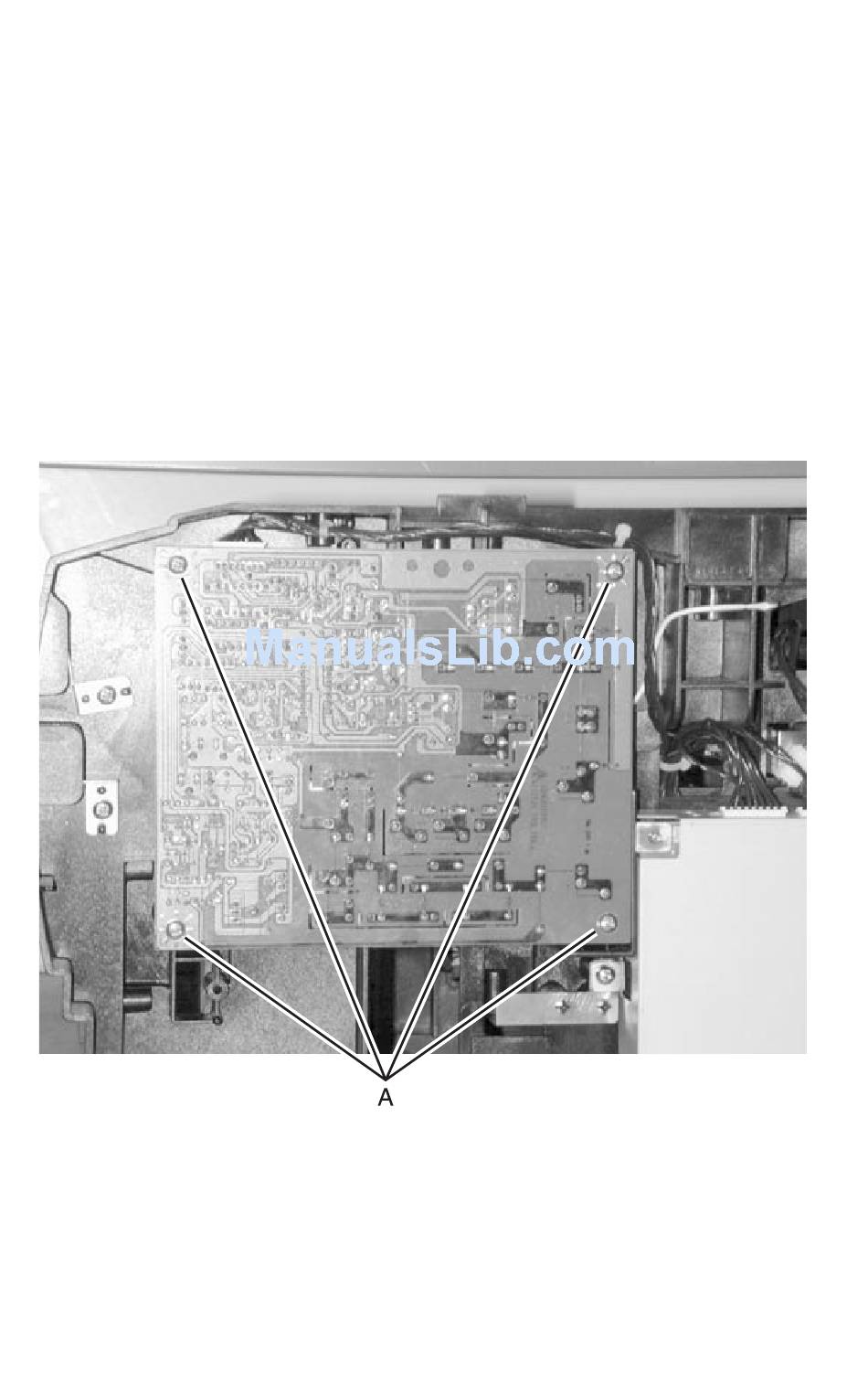

4. Remove the four screws [A].
5. Disconnect the charge roll cable.
6. Remove the HVPS card.
4-56
Service Manual
"Top Cover Assembly Removal"
for more information.
for more information.
"Right Side Cover
