Summary of Contents for Steamfast MODEL SF-246

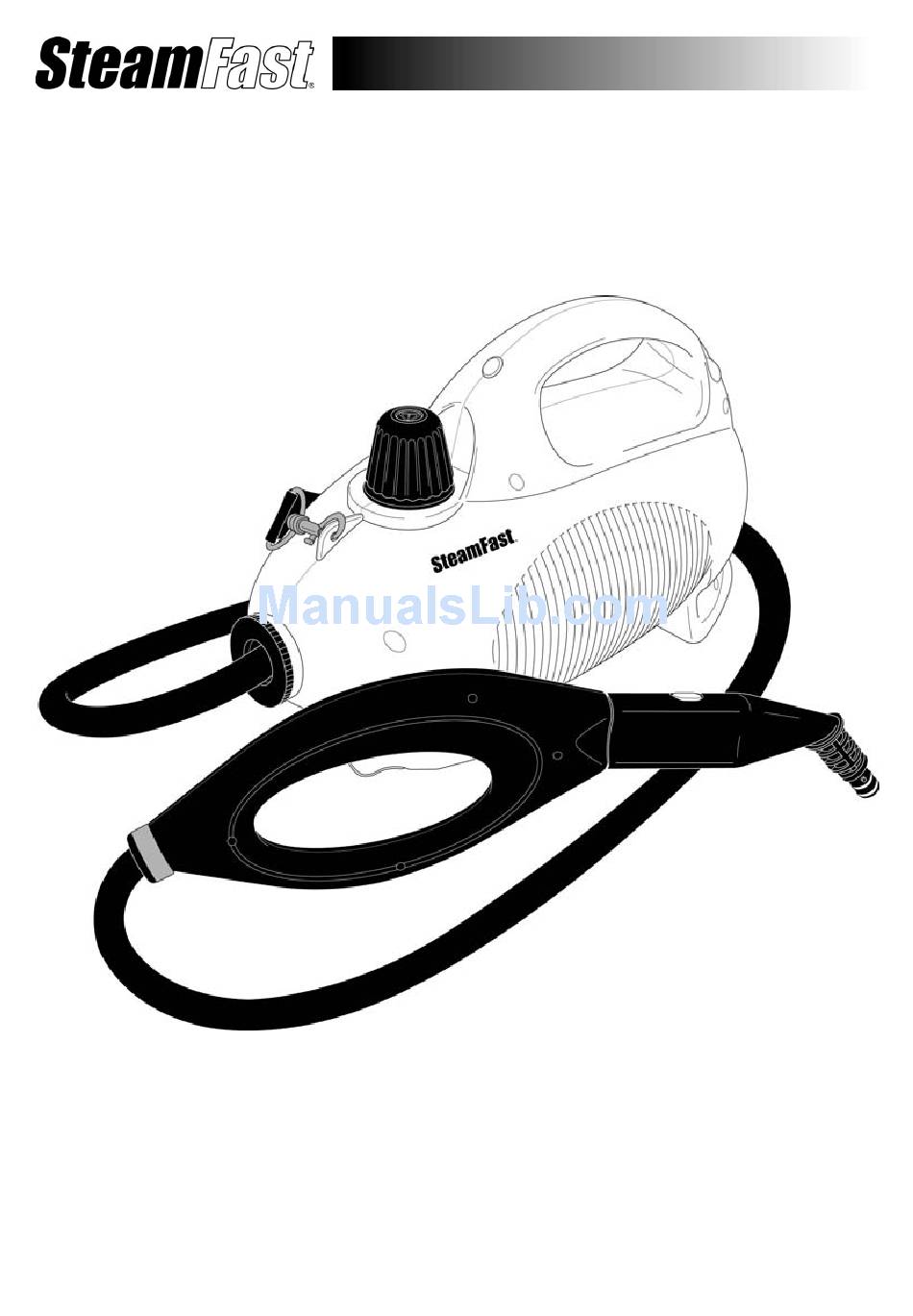

- Page 1 MODEL SF-246 Portable Power Steam Cleaner by Top Innovations Please read all instructions before use. Mail in your warranty registration card. KEEP YOUR RECEIPT FOR WARRANTY PURPOSES.
- Page 2 Portable Power Steam Cleaner is easy to clean and store. Top Innovations would like to invite you to visit our Customer Support Web site at: www.SteamFast.com On this Web site you will find helpful tips on ways in which you can utilize your Portable Power Steam Cleaner, along with other general guidelines to assist you in maximizing the power of steam.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: This appliance utilizes a grounded (three-prong) plug. This plug will fit in a polarized wall outlet only one way. If the plug does not fit fully in the outlet, contact a licensed electrician to install a proper outlet. - Page 4 IMPORTANT SAFETY INSTRUCTIONS 11. If Heating Indicator Light does not illuminate when power cord is plugged in, unit is not operating normally. Immediately turn unit off and disconnect from power supply, then refer to troubleshooting guide on Page 14 of this manual for assistance. 12.
-
Page 5: Product Information
RODUCT NFORMATION The following features and accessories are included with your Portable Power Steam Cleaner. Carefully inspect packing material for all parts listed below. To obtain possible missing parts, refer to the Customer Support section on Page 14 of this manual. &... - Page 6 RODUCT NFORMATION • The Boiler Cap (1) securely covers the Boiler Fill Hole, preventing hot steam from escaping the Boiler. The Boiler Cap must be unscrewed and removed (only when the Boiler is cooled) in order to fill the Boiler with water. •...
- Page 7 SSEMBLING THE ORTABLE OWER TEAM LEANER CONNECTING THE JET NOZZLE 1. Align Jet Nozzle with Main Steam Nozzle as shown (FIGURE 1-A). 2. Press down on the yellow locking button located on Main Steam Nozzle. While continuing to hold button down, slide Jet Nozzle onto Main Steam Nozzle. Push Jet Nozzle over button, and continue to push it on unit button snaps through hole on Jet Nozzle (FIGURE 1-B).
- Page 8 SSEMBLING THE ORTABLE OWER TEAM LEANER CONNECTING THE UTILITY HEAD 1. Align Jet Nozzle and Utility Head as shown (FIGURE 3-A). Flat edge of Nozzle will align with peg inside of Head connection. 2. Slide Jet Nozzle into Utility Head, pushing Nozzle in as far as it will go to make sure it is in proper position (FIGURE 3-B).
- Page 9 SSEMBLING THE ORTABLE OWER TEAM LEANER CONNECTING THE EXTENSION WANDS 1. Select one of the Extension Wands, and align rear end of Wand with Main Steam Nozzle as shown (FIGURE 4-A). 2. Press down on the yellow locking button located on Main Steam Nozzle. While continuing to hold button down, slide Extension Wand onto Nozzle.
- Page 10 SSEMBLING THE ORTABLE OWER TEAM LEANER ATTACHING THE CLOTH COVER 1. Wrap Cloth Cover around bottom of Utility Head, so that string-ties are positioned around rear connection of Head (FIGURE 5-A). 2. Tie string-ties together to secure Cloth Cover to Utility Head (FIGURE 5-B). FIGURE 5 CONNECTING THE SHOULDER STRAP 1.
- Page 11 SING THE ORTABLE OWER TEAM LEANER FILLING BOILER WITH WATER 1. Place Portable Power Steam Cleaner on a flat, level surface. 2. Make sure power cord is not plugged into an electrical outlet. 3. Cautiously unscrew Boiler Cap by rotating it in a counter- clockwise direction, and remove from unit to expose Boiler Fill Hole.
- Page 12 SING THE ORTABLE OWER TEAM LEANER OPERATING THE PORTABLE POWER STEAM CLEANER NOTE: Be sure that Boiler has already been filled and that all desired accessories are connected before following these steps. 1. Plug power cord into a convenient electrical outlet. Heating Indicator Light will immediately illuminate, indicating that unit is powered on and Boiler is heating.
-
Page 13: Proper Storage
& S TORAGE UIDELINES PROPER STORAGE Preparing your Portable Power Steam Cleaner for storage is quick and simple. When you have finished with your unit, follow the steps listed below. 1. Unplug power cord from electrical outlet. 2. Allow unit to completely cool (at least 30 minutes). 3. -
Page 14: Troubleshooting
For problems with your Portable Power Steam Cleaner, please refer to the troubleshooting tips located above. Additional inquiries should be directed to our Customer Support services through our Web site, www.SteamFast.com, on the Contact Us Web page. If you do not have internet access, you may also contact our Customer Support Department by telephone, at 1-800-711-6617 or 1-816-584-9700, ext. -
Page 15: One-Year Limited Warranty
If you need to request warranty service, or have any questions about coverage under this warranty, please visit the Warranty Service Request page on our Web site, www.SteamFast.com. You may also email customerservice@topinnovations.com, or phone (800) 711-6617 or (816) 584-9700, ext 130 or 131. -
Page 16: Product Serial Number
Top Innovations 6655 Troost Ave. • Kansas City, MO 64131 TEL: (800) 711-6617 / (816) 584-9700 FAX: (816) 584-9066 www.SteamFast.com customerservice@topinnovations.com PRINTED IN CHINA PRODUCT SERIAL NUMBER For your convenience, space has been provided below for you to record the serial number of your unit (located on the back or bottom of the unit) for easy reference when contacting our Customer Service Department.
