Steamfast SF-226 User Manual

Handheld steam cleaner
Hide thumbs Also See for SteamFast SF-226:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
MODEL SF-226
Handheld Steam Cleaner
by Top Innovations, Inc.
Please read all instructions before use.
Mail in your warranty registration card.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SteamFast SF-226 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steamfast SteamFast SF-226

Summary of Contents for Steamfast SteamFast SF-226

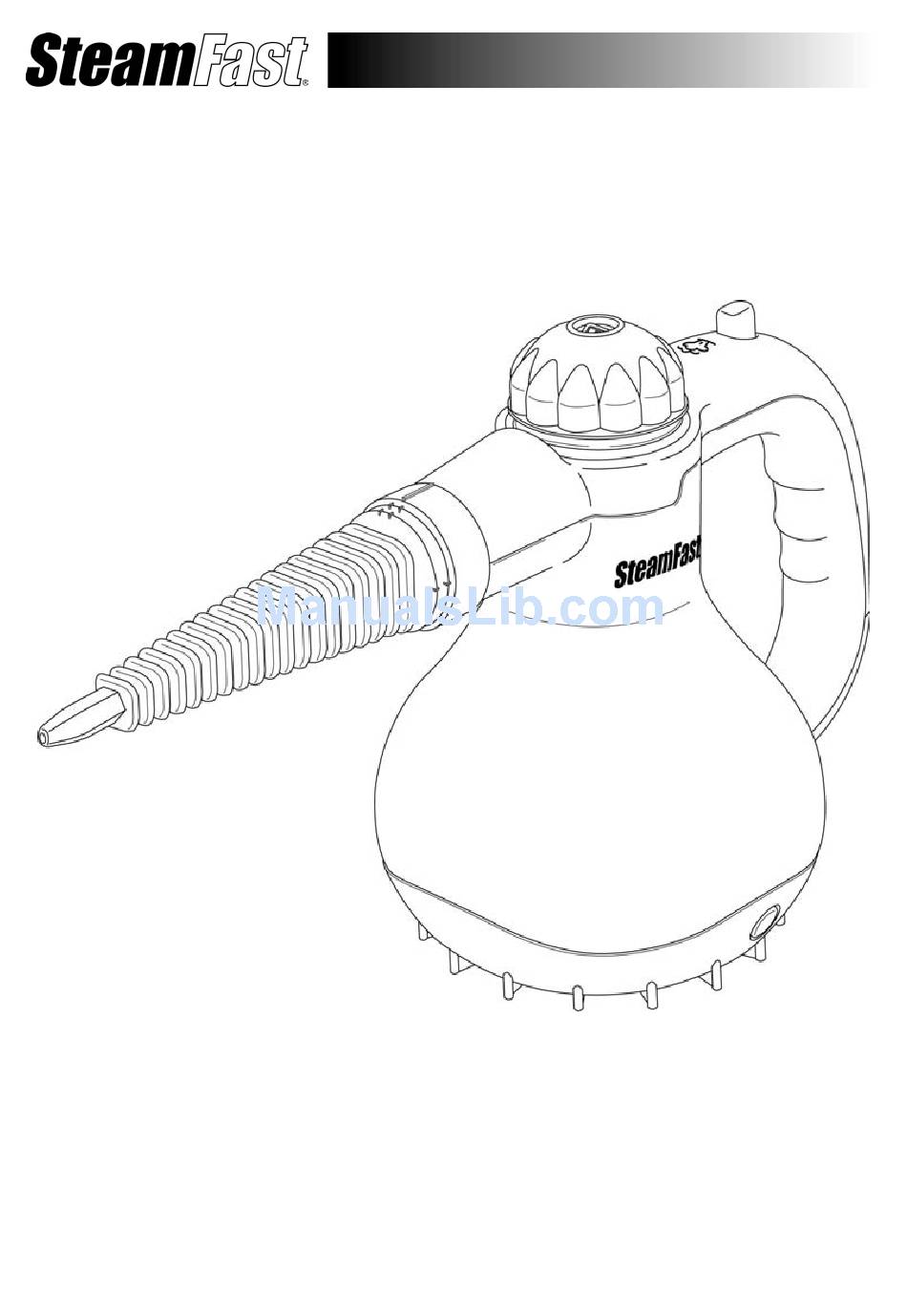

  • Page 1 MODEL SF-226 Handheld Steam Cleaner by Top Innovations, Inc. Please read all instructions before use. Mail in your warranty registration card.
  • Page 2 Handheld Steam Cleaner’s light weight and compact size make it quick and convenient to store. Top Innovations, Inc. would like to invite you to visit our Customer Support Web site at: www.SteamFast.com On this Web site you will find additional information about many other exciting products that...

  • Page 3: Important Safety Instructions

    Incorrect reassembly can cause a risk of electrical shock when unit is used. 8. Close supervision is required for any appliance being used near children, pets and plants. Do not leave unit unattended while plugged in. Top Innovations, Inc.
  • Page 4 20. Do not allow power cord to touch hot surfaces during use. Wrap cord loosely around unit when storing. 21. Always allow Handheld Steam Cleaner to cool completely (at least 30 minutes) before storing. SAVE THESE INSTRUCTIONS! FOR HOUSEHOLD USE ONLY Top Innovations, Inc.
  • Page 5 Customer Support section on Page 14 of this manual. & A EATURES CCESSORIES Steam Nozzle Boiler Cap Steam Button Handle Heating Indicator Light Boiler (internal) Jet Nozzle Wide Nozzle Nylon Utility Brushes (2) Brass Utility Brush Squeegee Measuring Cup Cloth Cover Top Innovations, Inc.
  • Page 6 (6 oz. / 177 ml.). • The Cloth Cover (13) stretches over the Wide Nozzle and is designed to absorb excess moisture, helping to prevent water spotting. This allows effective steaming of fabrics and upholstery. Top Innovations, Inc.
  • Page 7 Twist until you feel it “lock” into place and it will move no further. Note that single guide line on top of Steam Nozzle aligns between dual guide lines on Jet Nozzle / Wide Nozzle (FIGURE 3-B). FIGURE 3 Top Innovations, Inc.
  • Page 8 (FIGURE 5-B). This prevents heated steam from escaping and causing injury. FIGURE 5 3. To remove Utility Brush, make sure unit is unplugged and has had sufficient time to cool down. Then simply grasp Brush and firmly pull until it disconnects from Jet Nozzle. Top Innovations, Inc.
  • Page 9 1. Stretch Cloth Cover around Wide Nozzle (FIGURE 7). Cloth Cover should fit snugly enough to stay in place while steaming. 2. Connect Wide Nozzle to Steam Nozzle as normal (refer to Page 7 for more details). FIGURE 7 Top Innovations, Inc.
  • Page 10 NOTE: In order to prevent excessive water dripping in steam, do not exceed the Boiler’s maximum capacity of 6 oz. (177 ml.). 8. Replace Boiler Cap, screwing it in a clockwise direction to tighten. Make sure it is screwed on securely to prevent hot water or steam from escaping. Top Innovations, Inc.
  • Page 11 Page 10 to refill Boiler. 7. Once you are finished using your Handheld Steam Cleaner, immediately unplug power cord form electrical outlet. Refer to Page 12 for proper cleaning and storage procedures. Top Innovations, Inc.

  • Page 12: Proper Storage

    7. Allow water-vinegar solution to soak in Boiler for roughly 30-45 minutes. 8. Drain water-vinegar solution out of Boiler into a sink or tub. 9. Thoroughly rinse Boiler with fresh water until vinegar odor dissipates, then replace Boiler Cap. Top Innovations, Inc.
  • Page 13 Water level in Boiler is running Refer to Filling Boiler with intermittent. low. Water procedure on Page 10 for refilling instructions. Mineral build-up in unit. Refer to Removing Mineral Build-Up procedure on Page 12 for cleaning instructions. Top Innovations, Inc.

  • Page 14: Customer Support

    For your convenience, space has been provided below for you to record the serial number of your unit (located on the back or bottom of the unit) for easy reference when contacting our Customer Service Department. __________________ - _____________________________________ NOTES ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ Top Innovations, Inc.

  • Page 15: One-Year Limited Warranty

    (If outside USA, additional shipping charges may apply) Top Innovations, Inc., warrants this product to be free from defects in material and workmanship for a period of (1) one year from the date of purchase. This warranty does not cover damage caused by misuse, negligence, use by improper current or voltage, commercial use, use contrary to operating instructions or disassembly, repair or alteration by any person other than Top Innovations, Inc.
  • Page 16 Top Innovations, Inc. 6655 Troost Ave. • Kansas City, MO 64131 TEL: (800) 711-6617 / (816) 584-9700 FAX: (816) 584-9066 www.SteamFast.com customerservice@topinnovations.com PRINTED IN CHINA V080513...
