Summary of Contents for StarTech.com IDE1810U2Z

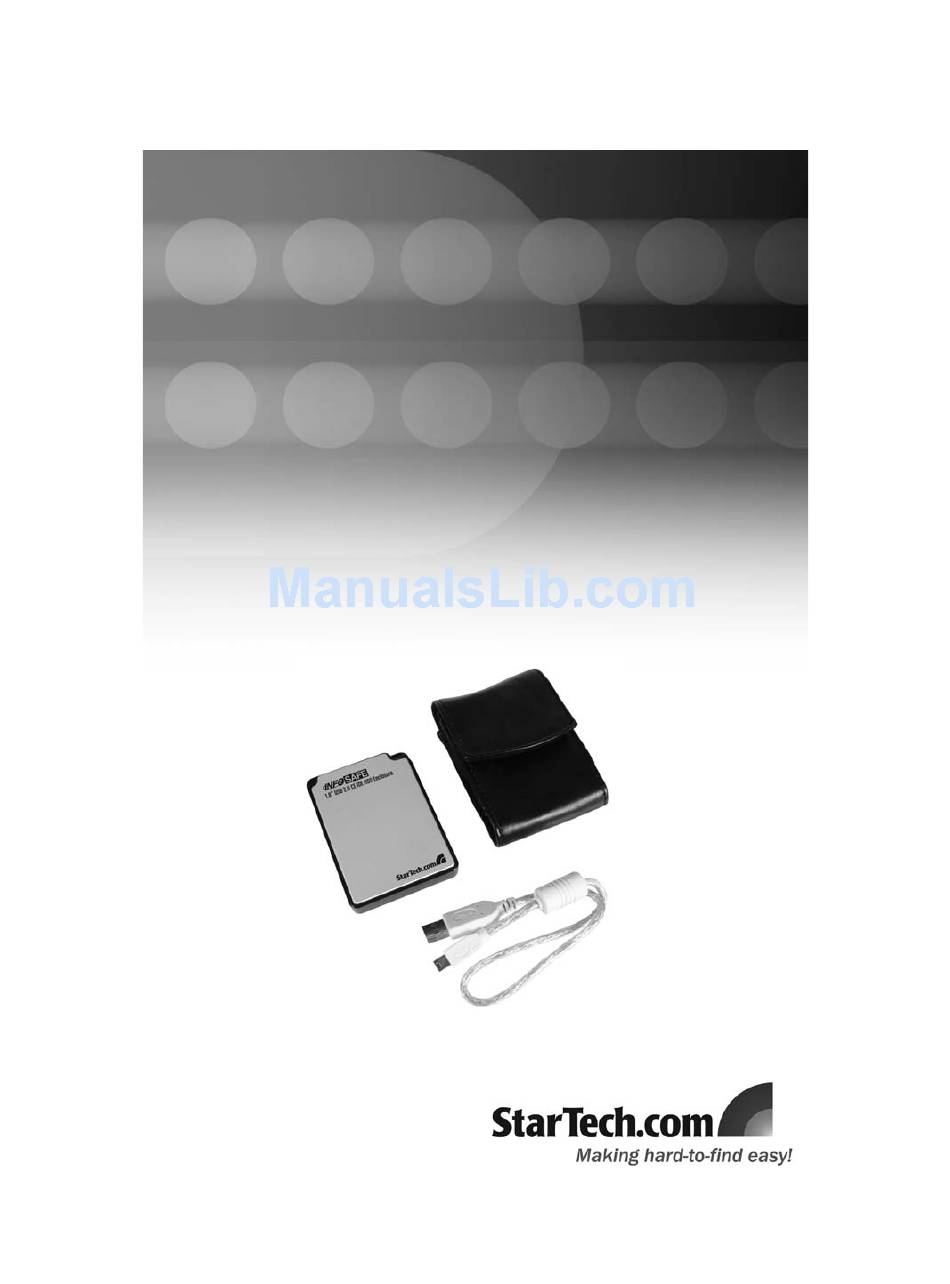

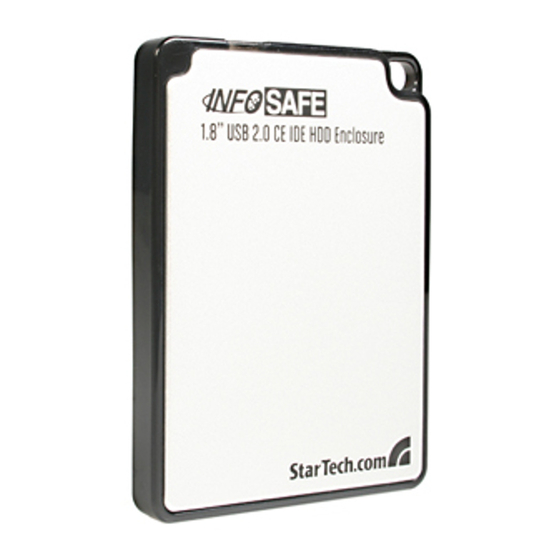

- Page 1 CE IDE Hard Enclosure 1.8" USB 2.0 CE IDE Hard Drive Enclosure IDE1810U2Z Instruction Manual Actual product may vary from photo...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
- Page 3 Instruction Manual T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s Introduction ........... . .1 Features .
- Page 4 I I n n t t r r o o d d u u c c t t i i o o n n Thank you for purchasing a StarTech.com 1.8" USB 2.0 CE IDE Hard Drive Enclosure. Ideal for convenient data offloads or additional storage for notebook computers while...
- Page 5 Instruction Manual I I n n s s t t a a l l l l a a t t i i o o n n Please note: IDE1810U2Z includes two enclosure frames that can be used to house the hard drive, depending on the physical size of the drive. Prior to installation, please note which frame is suitable to accomodate the hard drive you will be using, allowing enough room within the enclosure to safely contain the hard drive and the necessary CE ATA connector.
- Page 6 Instruction Manual Insert the Hitachi ZIF cable into the slot, ensuring the blue tab is facing upward, in relation to the ZIF connector. Once the cable has been firmly placed, gently press the tab (brown) back in place, in order to secure the cable. Once secured, advance to step #4.
- Page 7 Instruction Manual 7. Insert the circuit board (removed in step #3) into the enclosure by aligning the USB connector (provided by the circuit board) with the USB port (provided by the frame), and gently applying pressure to the bottom of the circuit board until it is locked in place: 8.
- Page 8 Instruction Manual C C o o n n n n e e c c t t i i n n g g t t h h e e E E n n c c l l o o s s u u r r e e t t o o a a C C o o m m p p u u t t e e r r 1.
- Page 9 L L i i m m i i t t a a t t i i o o n n o o f f L L i i a a b b i i l l i i t t y y In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their...
- Page 10 United States, Canada, the United Kingdom and Taiwan. Visit www.startech.com for complete information about all our products and to access exclusive interactive tools such as the Parts Finder and the KVM Reference Guide.
