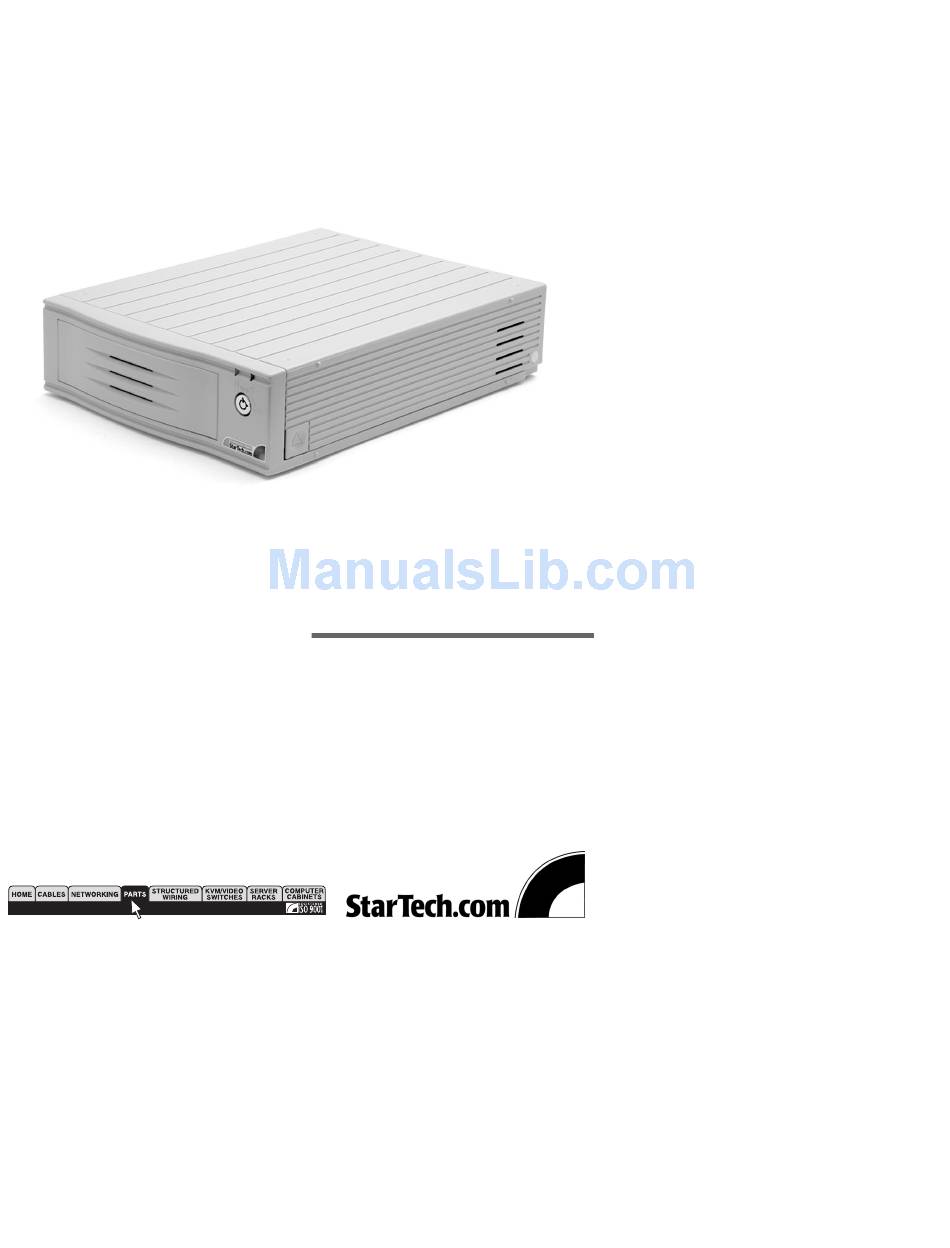

- Page 1 IDE Drive Case External 5.25" FireWire IDE CD Drive Case Installation Manual IDECASE525F...
-
Page 2: General Description
General Description The IDECASE525F is designed to connect your IDE devices onto the IEEE 1394 bus. It provides an ideal interconnect for multimedia applications. The IDECASE525F is 10 to 15 times faster than parallel or USB IDE cases and supports full IEEE-1394 FireWire transfer rates of 400Mbits/sec (50Mbytes/sec). - Page 3 Parts Description Overview 1) 5V12V power 6)Power LED 2) Cover 7) Lock pin 3) Power shield plate 8) Key lock 4) Wire cover box 9) Front pane 5) HDD monitoring LED 10) Front panel frame...
- Page 4 Top View 1) Working indicator 4) Audio output 2) ID switch 5) Cooling fan 3) 40-pin cable (IDE) Back View 1) Power input 3) USB connector 2) Power switch 4) Audio output (for CD-ROM only)
- Page 5 & power then fasten the enclosed screws on both sides of the interior side panels, securing the device into place. (To install drive drawers that are 3.5 inches you require an adapter bracket, such as the StarTech.com BRACKET) c) For other devices, read the instructions on your device manual.
-
Page 6: Driver Installation
4. Follow the on screen prompts. Limitation of Liability In no event shall the liability to StarTech.com Ltd. (or its officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of related to the use of the product exceed the actual price paid for the product.
