Stanton M.203 User Manual

2-channel scratch mixer
Hide thumbs
Table of Contents

Advertisement

Quick Links

M.203
2-Channel Scratch Mixer
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Stanton M.203

Summary of Contents for Stanton M.203

  • Page 1 M.203 2-Channel Scratch Mixer User Manual...

  • Page 2: Important Safety Instructions

    Important Safety Instructions 1. Read Instructions – All the safety and operating instructions should be read before this product is operated. 2. Retain Instructions – The safety and operating instructions should be retained for future reference. 3. Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to. 4.

  • Page 3: Table Of Contents

    4.1. Front Panel Controls ..............................7 4.1.1. Fader Start ................................7 4.1.2. Selecting and Reversing the Crossfader Curve ....................7 4.1.3. Selecting the Meter Source ..........................7 5. Troubleshooting ................................8 Registration Card ................................9 Stanton Warranty ................................10 Specifications ................................... 11...

  • Page 4: Introduction

    Introduction Introduction Welcome to the M.203! Thank you for purchasing the M.203. Before starting, please check that the package your M.203 came in contains: • M.203 unit • Power Supply • RCA Cable (1) • User Manual Now that you have checked that everything was included in the box, let’s talk about this exciting unit. Overview The M.203 is a 2-channel performance mixer with build quality and features that make it a leader in this price class.

  • Page 5: Connecting The M.203

    Connecting the M.203 Connecting the M.203 Before starting to connect the M.203, please read the Important Safety Instructions page and the following guidelines: Study this setup diagram (Figure 2.1). Make sure all faders are at "zero,” the Master knob is turned all the way counterclockwise, and all devices are Off.

  • Page 6: M.203 Description

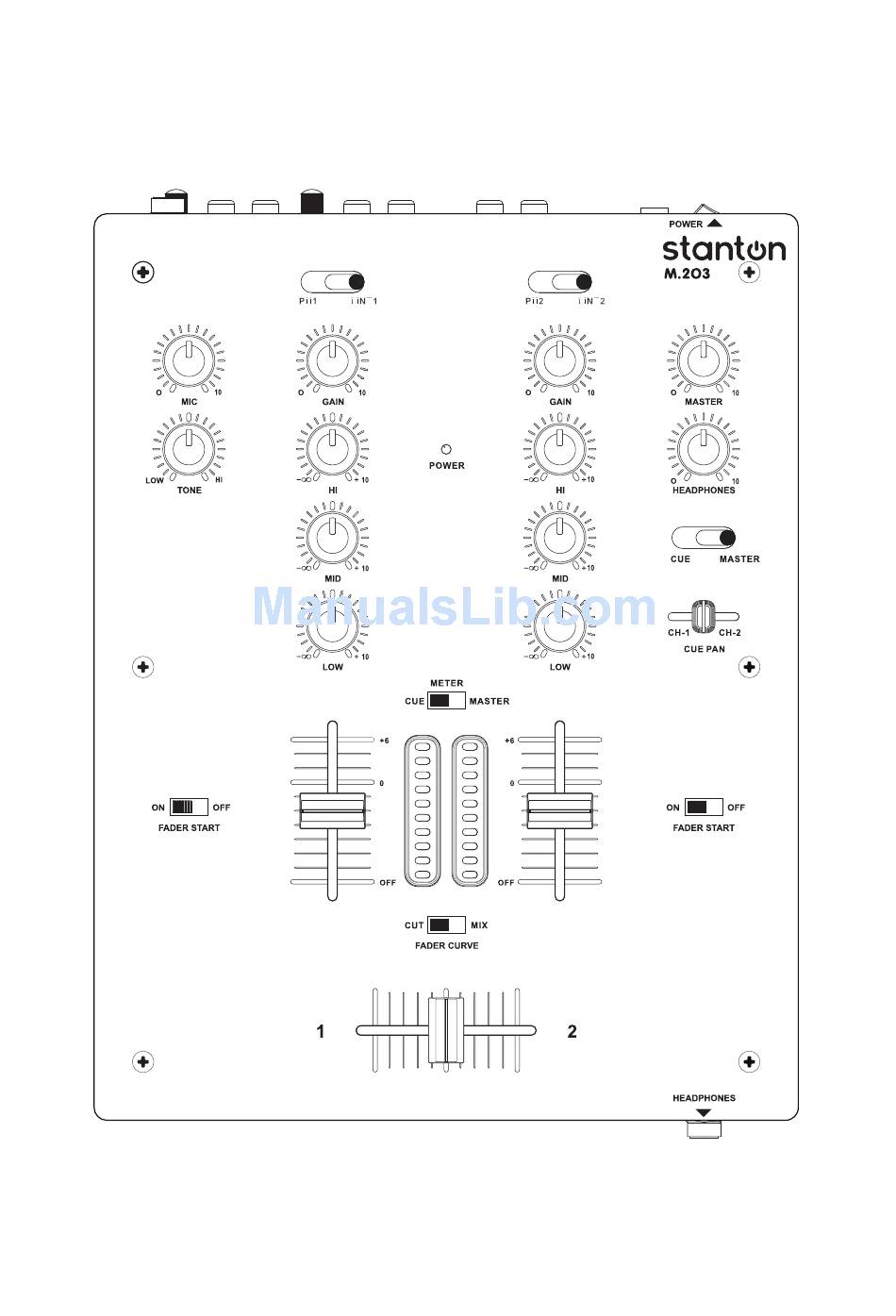

    M.203 Description M.203 Description Top Panel (Figure 3.1) Figure 3.1...
  • Page 7 M.203 Description Note Since Channels 1 (PH1/LN1) & 2 (PH2/LN2) contain the same controls and functionality; we will only describe them once and duplicate the numbering: 1. Mic Volume (gAIN): Adjusts the volume of the MIC input. 2. Mic Tone: Adjusts the tonal balance of the MIC input, with either a Low Boost/High Cut or High Boost/Low Cut. 3.

  • Page 8: Front Panel

    M.203 Description (Front Panel) M.203 Description - Front Panel (Figure 3.2) Figure 3.2 1. Headphone Output: Standard 1/4” headphone output connector.

  • Page 9: Rear Panel

    2. DC IN: Input connection for the included power supply. While the power is switched OFF, plug the power supply into the mixer first, and then plug it into the outlet. Only use the supplied or official replacement Stanton® power supply.

  • Page 10: Using The M.203

    Fader start enables the Crossfader on the M.203 mixer to start and stop playback on a CD player. To use this function you need a CD player (like Stanton’s C.324) with the Fader Start feature and its related cable. You can use this feature to trigger playback on a deck that might be just out of physical reach or to do a fader based beat juggle between 2 decks.

  • Page 11: Troubleshooting

    Troubleshooting Troubleshooting Problem / Symptom Possible Cause / Solution No Sound. Is the power ON? Based on your connections, check that you have properly set the Input Selector Switch. Make sure that the Input Gain, Channel Fader, and Master output are turned up. Make sure the channels are properly assigned to the Crossfader.

  • Page 12: Registration Card

    Return Authorization Number (RA#) PRIOR to shipping your product to us. Warranty Service outside the United States: To initiate a warranty repair, please contact the authorized Stanton dealer from whom you purchased your product, and follow the dealer’s return policy.

  • Page 13: Stanton Warranty

    Stanton dealer's return policy. Stanton assumes no risk and shall be subject to no liability for damages or loss resulting from the specific use or application made of the merchandise. Stanton's liability for any claim, whether based on breach of contract, negligence, infringement of any rights of any party, or product liability, and relating to the merchandise shall not exceed the price received by Stanton from your purchase of such merchandise.

  • Page 14: Specifications

    Specifications Specifications 1. POWER: AC 100 – 240 V, 50/60 Hz, 16 W 2. DIMENSIONS (H x W x D) 108.2 mm x 250 mm x 352.6 mm 10.82 cm x 25 cm x 35.26 cm 3. WEIgHT: 9.25 lbs / 4.2 kg 4.
  • Page 15 M.203 and STR8.150 are trademarks or registered trademarks of the Stanton Group. All other trademarks are property of their respective owners, who are in no way affiliated with Stanton DJ or SC System products. All information included in the User Manual is subject to change without notice.
