Summary of Contents for Stanton M.505

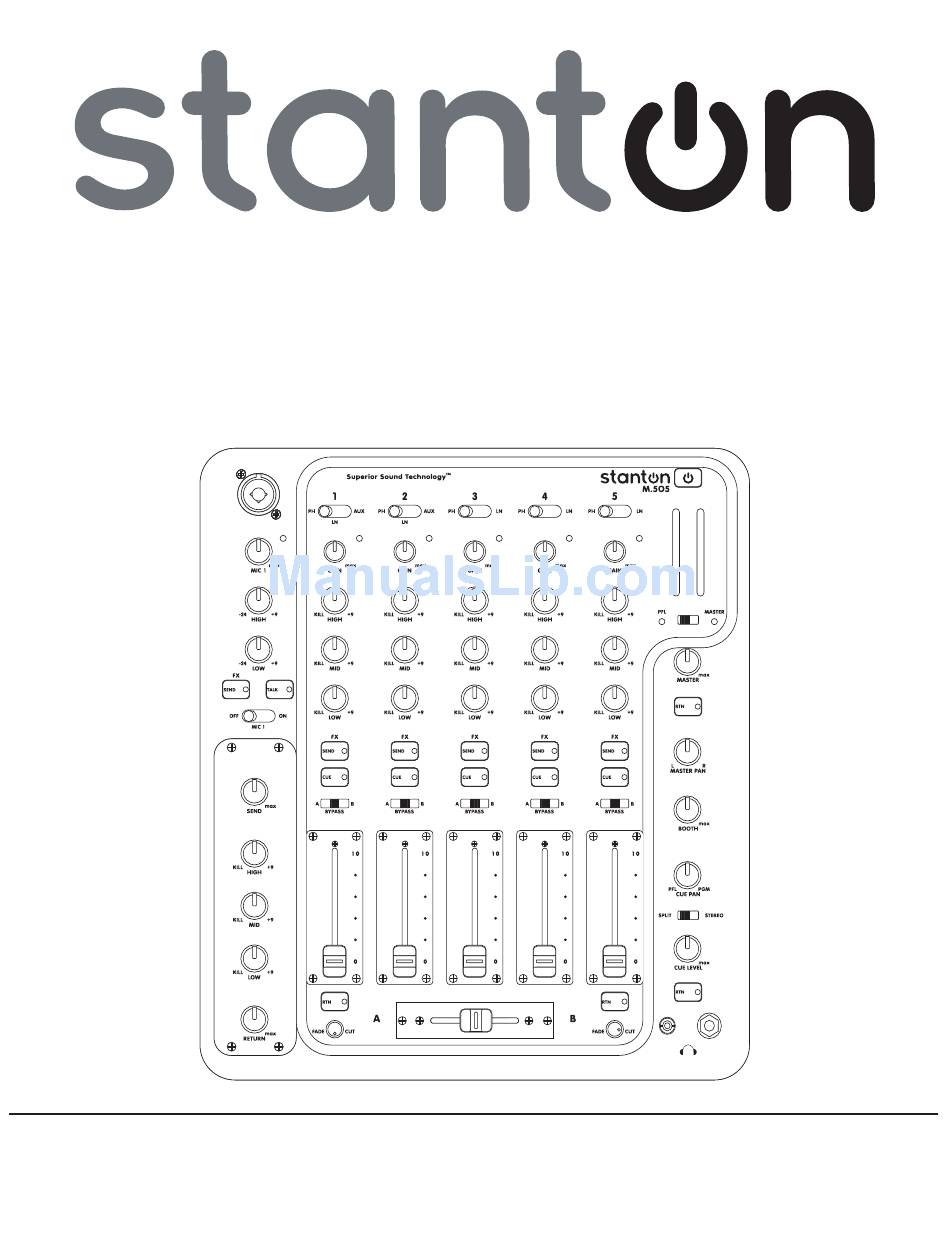

- Page 1 M.505 5-CHANNEL CLUB MIXER S TA N TO N M A G N E T I C S , I N C . i n f o r m a t i o n @ s t a n t o n d j . c o m • + 1 9 5 4 . 6 8 9 . 8 8 3 3...

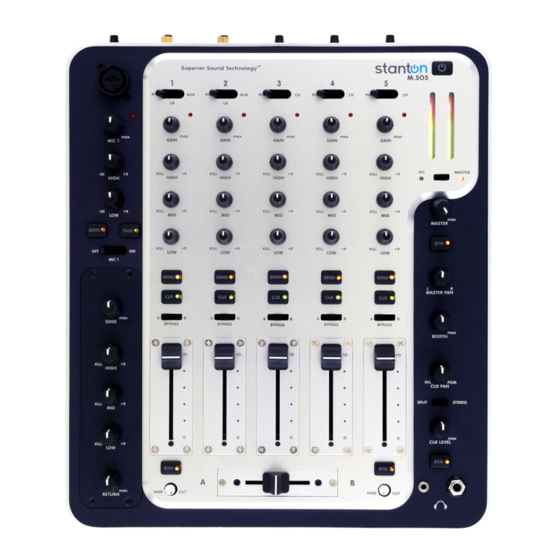

- Page 2 Congratulations and thank-you for purchasing the latest addition to the growing Stanton family. Sporting a new attitude, and a fresh, modern look, the M.505 is a 5-channel mixer loaded with features and innovations giving club and mobile DJs a complete, powerful, yet simple tool to mix, create, and perform their best. Thoughtfully designed and engineered to give you the most intuitive and instinctual experience possible, the M.505 is packed with features in a logical layout with quali-...
-
Page 3: Description Of Features
DESCRIPTION OF FEATURES 1. Mic 1 Input: Combo connector to plug-in XLR or TRS (tip, ring, sleeve) 1/4” microphone cables. 2. Mic 1 Level: Controls the level of the microphone connected to (1) mic 1 Input. 3. Mic 1 EQ: Adjusts the high and low frequencies of the signal coming from mic 1. Note: Any changes made to EQ set- tings will affect the overall output level of the microphone. -
Page 4: Description Of Functions
DESCRIPTION OF FUNCTIONS 10. Input Selection: Each input channel features several input sources. These selector switches let you toggle between the various sources. All channels have a phono and line input. Channels 1-2 also have an AUX input which can be switched from mic to line. - Page 5 DESCRIPTION OF FUNCTIONS 26. Master Output Pan: Pans the master output left to right. 27. Effects Master Return: Returns the wet signal from the outboard sound processor to the master output. 28. Master Output Level: Controls the overall output level of the mixer. 29.
- Page 6 DESCRIPTION OF FUNCTIONS 38. Channel Trims: In similar fashion as the master trim, the input trims are used to attenuate the audio coming into each channel. Again, this is useful in club settings to restrict DJs who may be unfamiliar with the unit from overloading the inputs. 39.
-
Page 7: Getting Started
USING EFFECTS The M.505’s send and return circuit was designed to enable DJs to use the crossfader as a wet/dry mix control. • Once you have connected your effects box as indicated above, select the channel you want to process by pressing the SEND (13) button. -
Page 8: Specifications
SPECIFICATIONS Line Inputs...5 x Stereo RCA -10 dBV 10 k Ohm unbalanced Aux Inputs...2 x XLR/Combo -10 dBV 10k Ohm balanced Phono Inputs...5 x Stereo RCA -50 dBV 47k Ohm unbalanced Mic Inputs...3x XLR/Combo -50 dBV 1.2k Ohm Balanced Return Inputs...2 (1/4"), -10 dBV / 10 kOhm Send Outputs...2 (1/4"), -10 dBV Master Outputs...2x RCA -10 dBV unbalanced <100 Ohms Master Outputs...2x XLR Male +4 dBu Balanced <100 Ohms... -
Page 9: Block Diagram
BLOCK DIAGRAM... -
Page 10: Warranty And Return Policy
Stanton dealer’s return policy. Stanton assumes no risk and shall be subject to no liability for damages or loss resulting from the specific use or applica- tion made of the merchandise. Stanton's liability for any claim, whether based on breach of contract, negligence, infringe- ment of any rights of any party, or product liability, and relating to the merchandise shall not exceed the price received by Stanton from your purchase of such merchandise.
