Summary of Contents for Stanton M.212

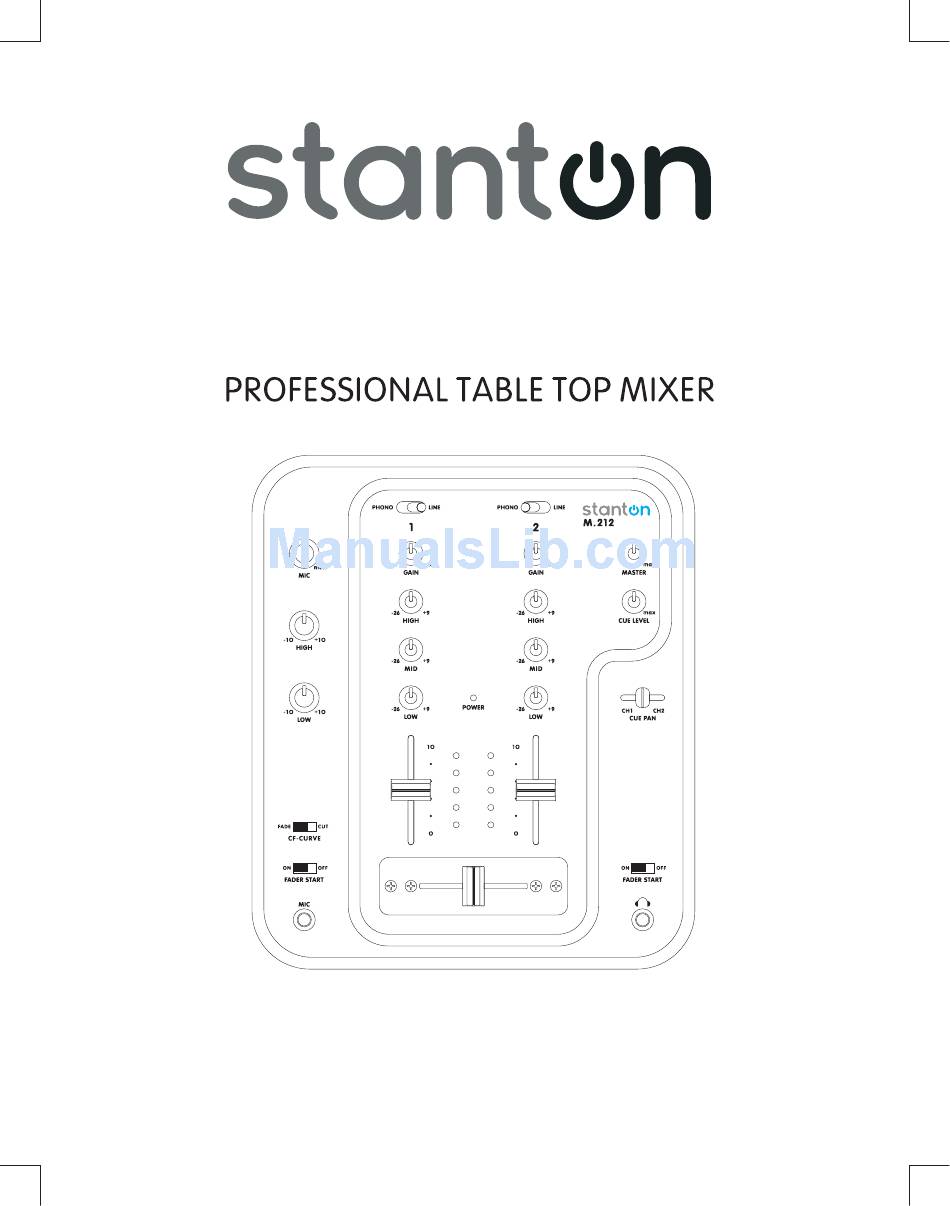

- Page 1 M.212 USER’S MANUAL...
-
Page 2: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS Read Instructions – All the safety and operating instructions should be read 14. Servicing – The user should not attempt any service to the appliance beyond before this product is operated. that described in the operating instructions. All other servicing should be Retain Instructions –... -
Page 3: Main Features
INTRODUCTION Thank you for purchasing Stanton’s newest innovation in professional tabletop mixer. The M.212 mixer was designed to bring style and reliability to the mobile or club DJ at an affordable cost. MAIN FEATURES 2 bend EQ w/ input GAIN control per channel. -
Page 4: Control Overview
CONTROL OVERVIEW TOP PANEL 9. Headphone Input - Insert your ¼” headphone plugs here. 1. Channel Gain - Adjusts the pre-fader volume for cleaner sound. Reduce the channel gain if you notice the level 10. Fader Start On/Off Switch - When the unit has been indicators flashing red. -
Page 5: Rear Panel
CONTROL OVERVIEW REAR PANEL DC 6V 16. Power Switch - Turns unit off and on. 17. Power Connector - Plug in the included power supply here. 18. Fader Start Control Jacks - Connect these jacks to the Fader input jacks of the CD player using the 3.5mm stereo mini cord. 19. -
Page 6: Quick Setup Diagram
QUICK SETUP DIAGRAM Review this setup diagram. Make sure all faders are at "zero" and all devices are off. First, connect all input sources and processors. Next, connect your microphone and monitor headphones. Finally, connect the stereo outputs to the power amplifier(s) and/or audio receivers such as tape decks. Plug your mixer into AC power. -
Page 7: Specifications
SPECIFICATIONS Input / output impedance & sensitivity: (Master 0 dBV output, load= 100k ohm, Max, Gain, EQ flat) Line 10k ohm /-14 dBV (200 mV) +/-2 dB Phono 47k ohm /-50 dBV (3.16mV) +/-2 dB Mic 2.2k ohm /-60 dBV (1mV) +/-2 dB Master 1k ohm Phones 33 ohm / 0 dBV (1V) ±2 dB Max. -
Page 8: Warranty And Return Policy
Stanton dealer in the country where the purchaser is located or the country in which the merchandise was received. Any returns to a non-authorized dealer or to an authorized Stanton dealer not in the same country as the merchandise was intended to be sold or as set forth above will void this warranty.
