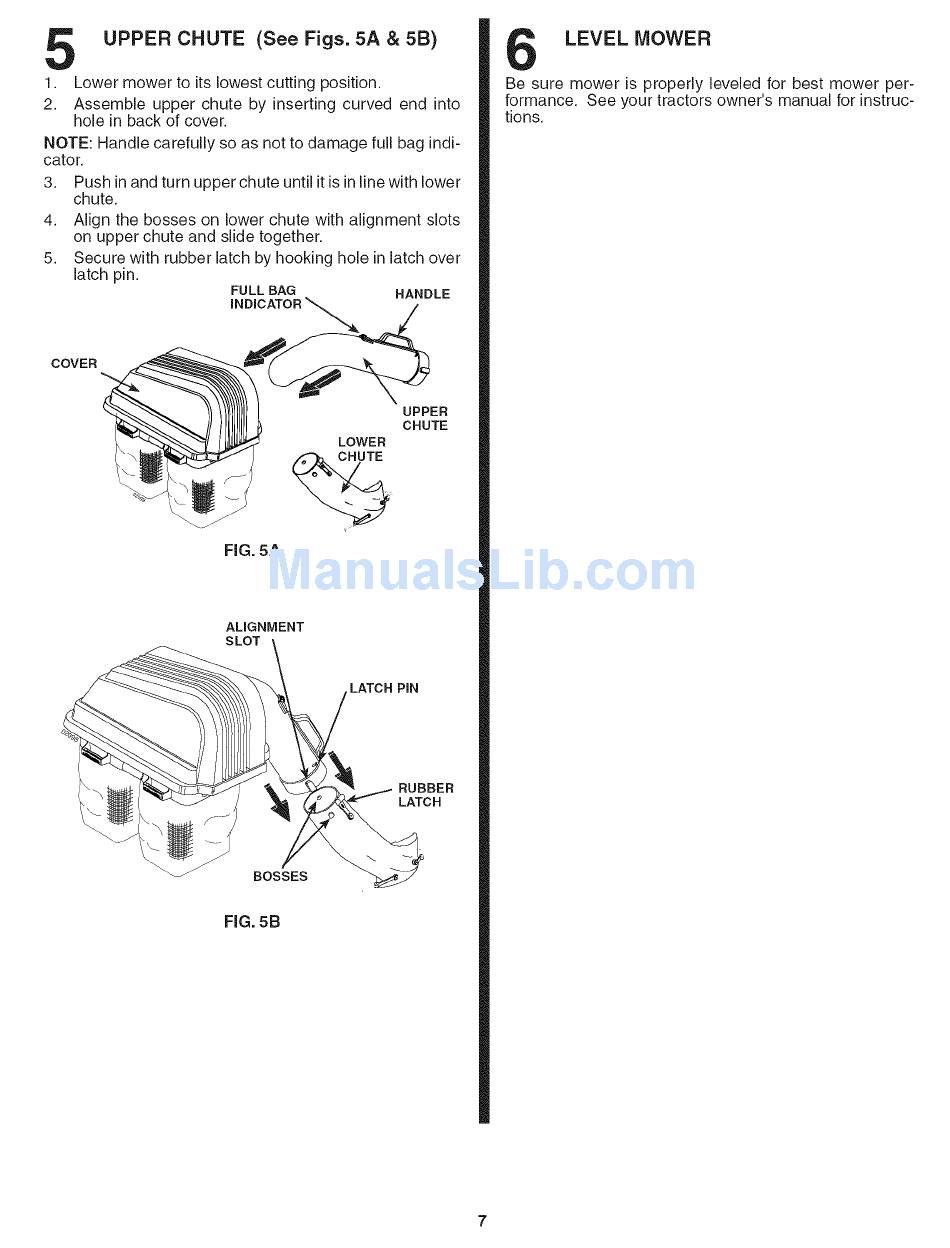

UPPER
CHUTE
(See Figs. 5A & 5B)
1.
Lower mower to its lowest cutting position.
2.
Assemble upper chute by inserting curved end into
hole in back of cover.
NOTE: Handle carefully so as not to damage full bag indi-
cator.
3.
Push in and turn upper chute until it is in line with lower
chute.
4.
Align the bosses on lower chute with alignment slots
on upper chute and slide together.
5.
Secure with rubber latch by hooking hole in latch over
latch pin.
FULL BAG
HANDLE
COVER
FiG. 5A
UPPER
CHUTE
ALIGNMENT
SLOT
LATCH PIN
RUBBER
LATCH
BOSSES
FiG. 5B
LEVEL
MOWER
Be sure mower is properly leveled for best mower per-
formance. See your tractors owner's manual for instruc-
tions.
