Craftsman 917.248900 Owner's Manual page 5

Grass catcher 38" mower
Hide thumbs

Advertisement

Table of Contents

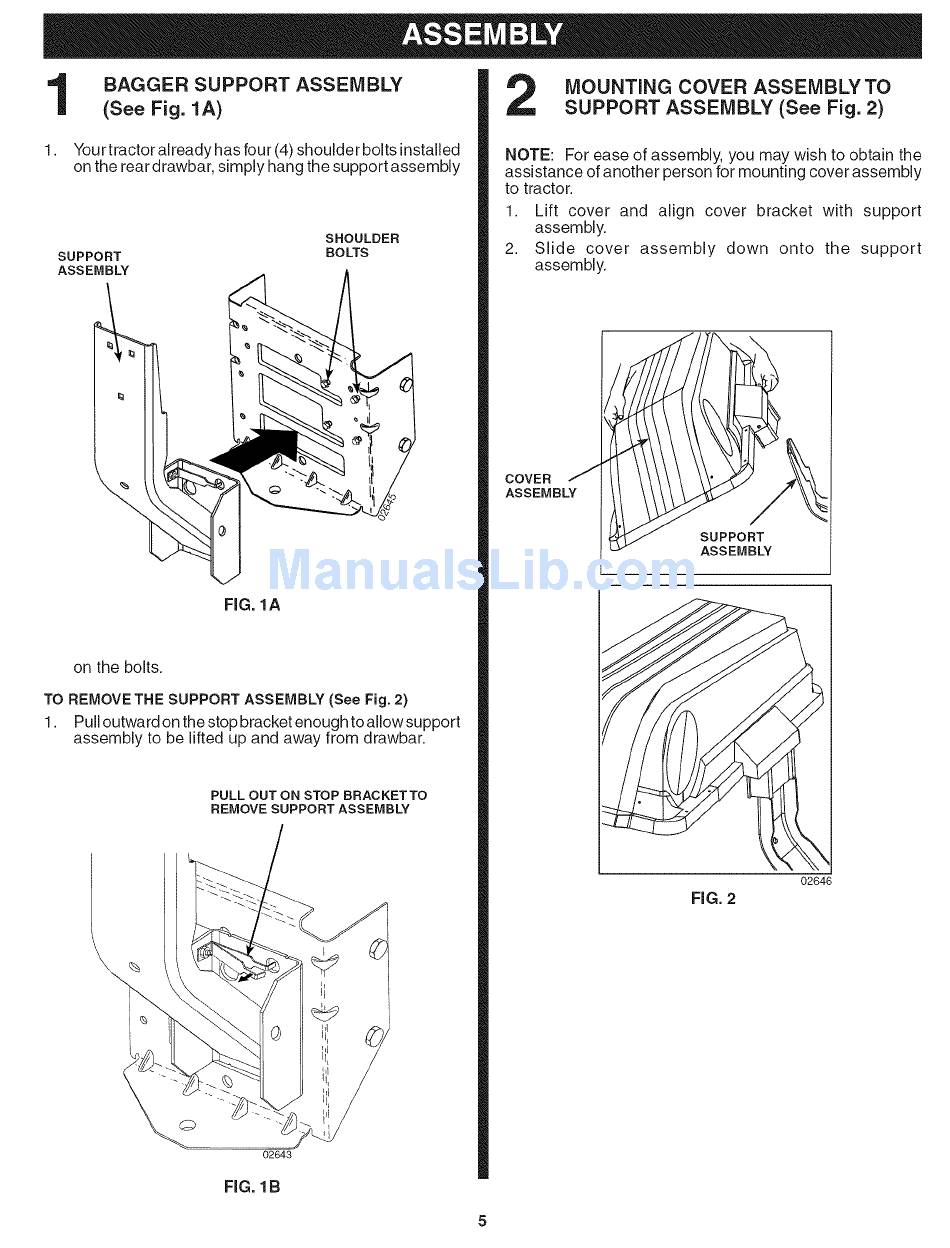

BAGGER SUPPORT ASSEMBLY
(See Fig. 1A)
Your tractor already has four (4) shoulder bolts installed
on the rear drawbar, simply hang the support assembly
SUPPORT
ASSEMBLY
SHOULDER
BOLTS
FIG. 1A
on the bolts.
TO REMOVETHE SUPPORT ASSEMBLY (See Fig. 2)
1.
Pull outward on the stop bracket enough to allow support
assembly to be lifted up and away from drawbar.
PULL OUT ON STOP BRACKETTO
REMOVE SUPPORT ASSEMBLY
02643
MOUNTING
COVER ASSEMBLY
TO
SUPPORT
ASSEMBLY
(See Fig. 2)
NOTE: For ease of assembly, you may wish to obtain the
assistance of another person for mounting cover assembly
to tractor.
1.
Lift cover and align cover bracket
with support
assembly.
2.
Slide
cover
assembly
down
onto
the
support
assembly.
COVER
J
ASSEMBLY
/
SUPPORT
ASSEMBLY
02646
FIG. 2
FIG. 1 B
