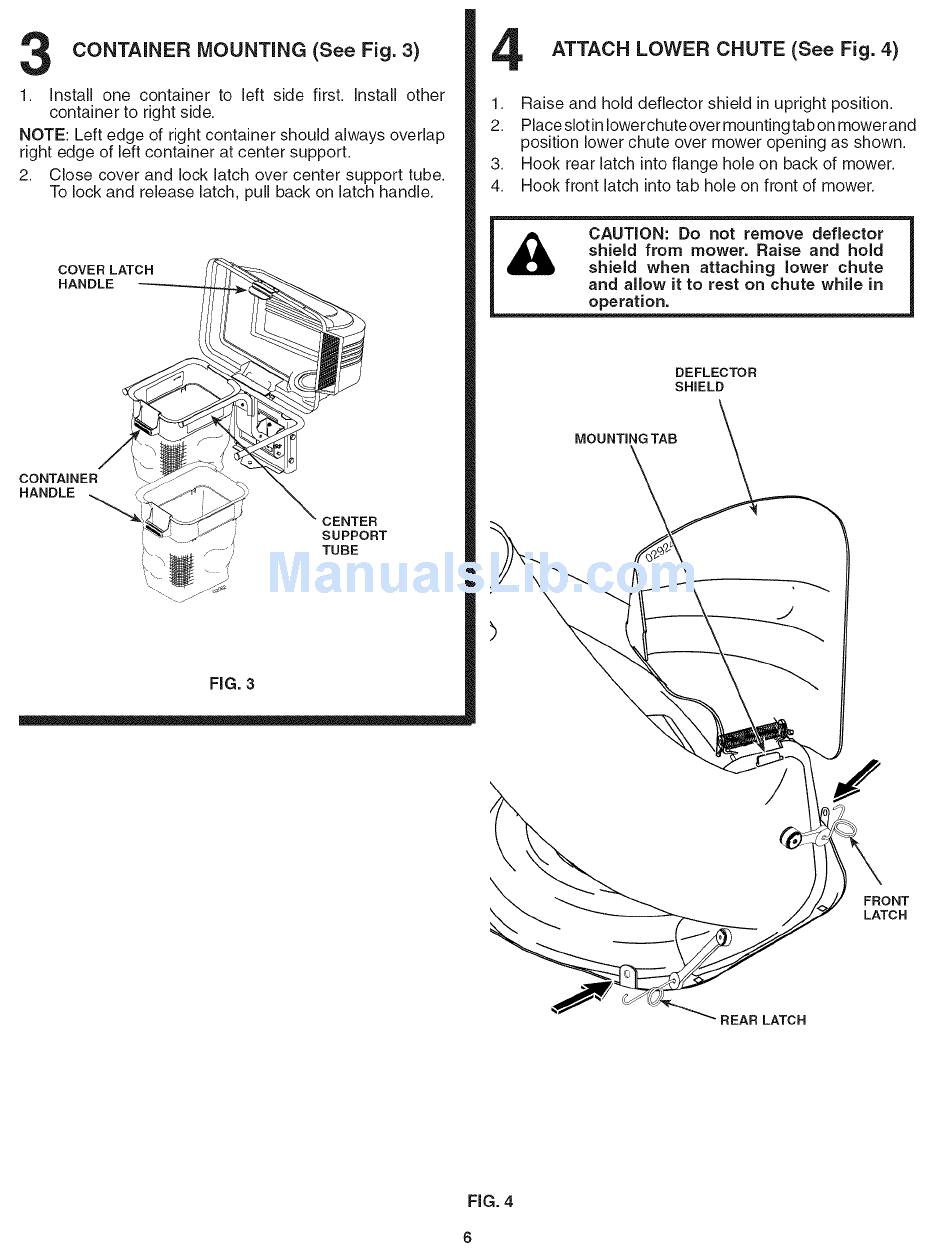

CONTAINER MOUNTING
(See Fig. 3)
1.
install one container
to left side first, install other
container to right side.
NOTE: Left edge of right container should always overlap
right edge of left container at center support.
2.
Close cover and lock latch over center support tube.
To lock and release latch, pull back on latch handle.
COV , AT
CONTAINER
HANDLE
F
i
CENTER
SUPPORT
TUBE
FIG. 3
ATTACH LOWER CHUTE
(See Fig. 4)
1.
Raise and hold deflector shield in upright position.
2.
Place slot iniowerchute over mounting tab on mowerand
position lower chute over mower opening as shown.
3.
Hook rear latch into flange hole on back of mower.
4.
Hook front latch into tab hole on front of mower.
CAUTION:
Do not remove deflector
shield
from
mower.
Raise and hold
shield when
attaching
lower
chute
and allow it to rest on chute while in
operation.
DEFLECTOR
SHIELD
MOUNTING TAB
FRONT
LATCH
REAR LATCH
FIG. 4
