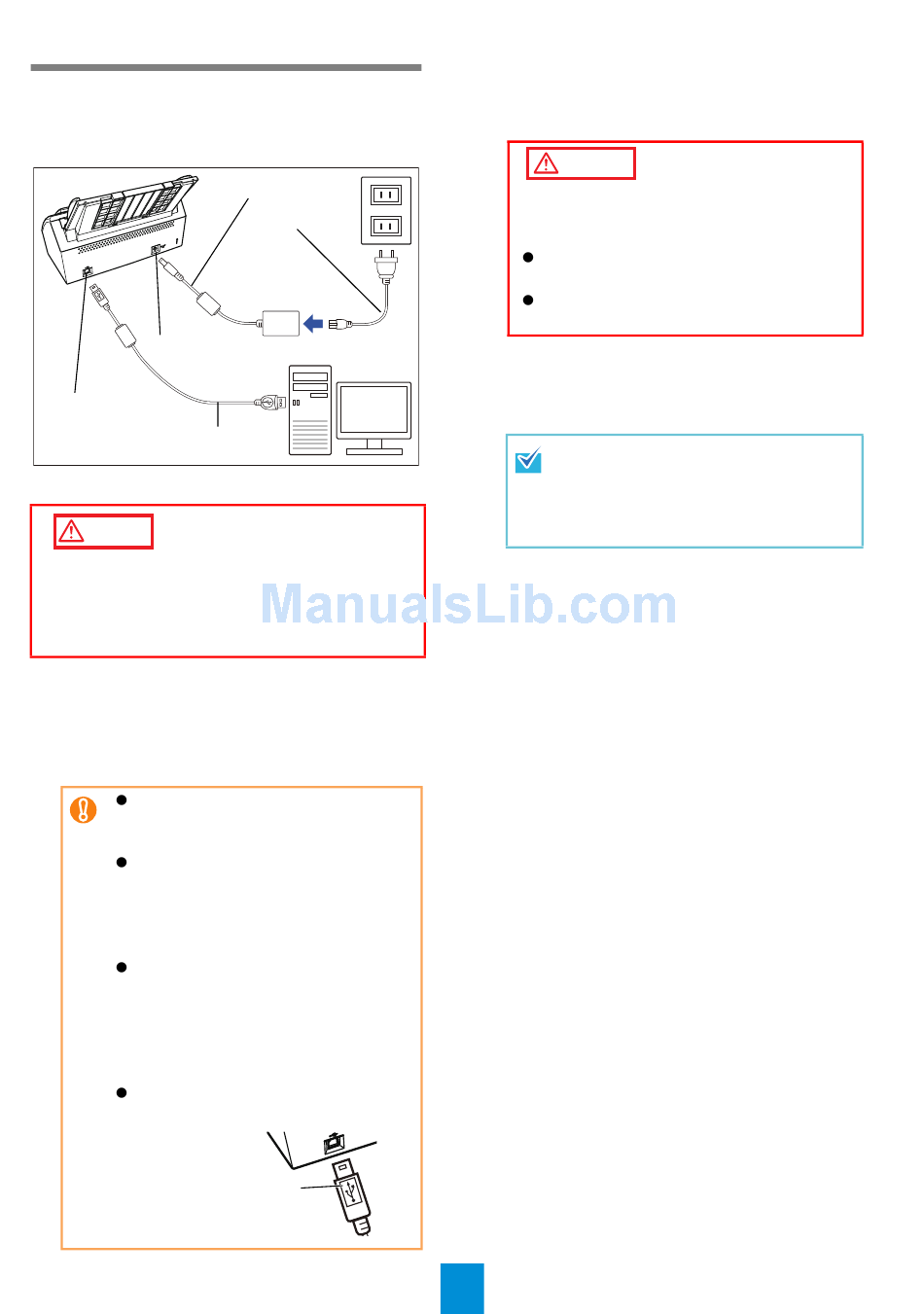

Connecting the Cables

The following describes how to connect the cables
between the scanner and your computer.
4
2
Power Connector
USB Connector
USB Cable
CAUTION
Do not use AC adapters other than the one
supplied with this scanner. Doing so may
cause damage to the scanner.
Manufacturer: Sanken Electric Co., Ltd.
Model number: SED80N2-24.0
1.
Make sure that the computer is turned off.
2.
Connect the USB cable with the USB
connector of the scanner and the USB port
of the computer.
Be sure to use the USB cable which
comes as an accessory with this
scanner.
When connecting to an USB hub,
use the first stage USB hub that is
closest to the computer. If you use
the second or later hub stages, the
scanner may not operate correctly.
If you connect the scanner with USB
2.0, it is required that the USB port
and the hub be compliant with USB
2.0. The scanning speed slows down
when you connect the scanner with
USB 1.1.
Connect the USB cable with the side
showing the USB mark facing up.
USB mark should
face up
AC Adapter
AC Cable
4
3
2
1
3.
Connect the AC cable with the AC adapter
(hereinafter referred to as "the power
cable").
WARNING
Be sure to use the supplied power cable.
The following cases may cause electrical
shock or malfunction.
Using a power cable other than that
supplied
Using the supplied power cable for other
devices
4.
Connect the power cable to the power
connector of your scanner and to the AC
outlet.
When you plug the AC cable into an
outlet, the [Power] button of the
operator panel on the scanner will
flash once. Note that this is an initial
diagnosis and not a malfunction.
