Summary of Contents for Envision EN-8500

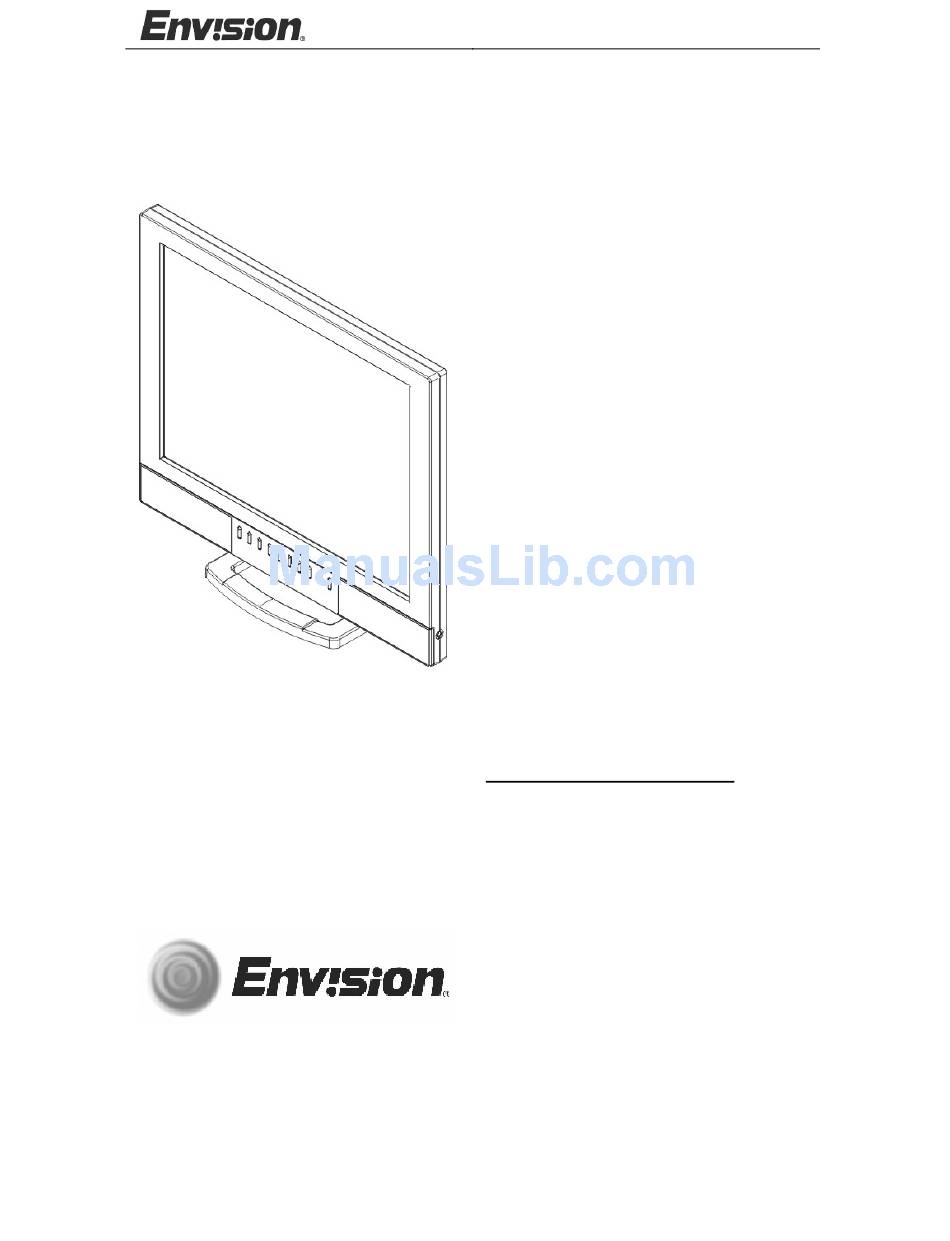

- Page 1 EN-8500 EN-8500 18” LCD Monitor With TV Tuner User’s Manual By Envision Peripherals, Inc. www.envisionmonitor.com Before operating your monitor, please read this manual thoroughly.
-
Page 2: Table Of Contents
TECHNICAL SUPPORT (FAQ) …………………………………………. ERROR MESSAGES …………………………………………………….. RESOLUTION TABLE ……………………………………………………. HOW TO INSTALL INF & ICM FILE ……………………………………. SPECIFICATIONS ……………………………………………………….. FACTORY PRESET TIMING TABLE …………………………………… D-SUB CONNECTOR PIN ASSIGNMENT …………………………….. V-CHIP ……………………………………………………………………… WARRANTY STATEMENT ………………………………………………. EN-8500 14-15 17-21 23-24 27-28 30-31 32-33... -
Page 3: For Your Safety
As an NERGY Partner Envision Peripherals, Inc. has determined that this product meets the WARNING: To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. -
Page 4: Safety Precautions
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V AC, Min.6A. The wall socket shall be installed near the equipment and shall be easily accessible. EN-8500... -
Page 5: Special Notes On Lcd Monitor
The life of the fluorescent light used in the LCD monitor is approximately 30,000 hours. Contact your dealer or EPI service center for replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. EN-8500... -
Page 6: General Notes
Never spay the glass cleaner directly on the monitor. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the case & panel. As a safety precaution, always unplug the monitor before cleaning it. These damages are not covered under the EN-8500... -
Page 7: Before You Operate The Monitor
18” TFT Color LCD Monitor with TV Tuner • Composite & S-Video Inputs • PIP (Picture-in-Picture) • Crisp, Clear Display for Windows • Recommended Resolutions: 1024 X 768 @60Hz ® • EPA E NERGY • Ergonomic Design • Space Saving, Compact Case Design EN-8500... -
Page 8: Package Contents
CHECKING THE CONTENTS OF THE EN-8500 PACKAGE The product package should include the following items: EN-8500 LCD Monitor with TV Tuner Quick Start Guide Remote Control with Batteries Power adaptor & Power Cord Driver Disk Containing Windows 95/98/ME/2000/XP INF & ICM Files... -
Page 9: Installation Instructions Power Cord
IEC 60227 (designation H05VV-F 3G 0.75mm or H05VVH2-F2 3G 0.75mm ) shall be used. Alternative a flexible cord be of synthetic rubber according to IEC 60245 (designation H05RR-F 3G 0.75mm ) shall be used. EN-8500... -
Page 10: Installation Instructions (Cont)
Connect the antenna or Cable TV to the monitor’s TV input port. Connect the power cord to the AC power outlet. Connect the other end to the monitor’s power adapter. Caution: If the AC outlet is not grounded (with three holes), install the proper grounding adapter (not supplied). EN-8500... -
Page 11: Preparing To Install The Optional Wall Mount Arm
Turn the power OFF then dis-connect the cables from the monitor before performing the procedure below. Lay the monitor face down on a soft surface. Press the “FOLD” button on the base of the monitor. Fold the base so it is flush against the back of the monitor. EN-8500... -
Page 12: Attaching The Optional Wall Mount Arm
Insert the cables into the slot on the back of the monitor. NOTE: The Envision EN-8500 is in compliance with the most current revision of the VESA 100mm Flat Panel Monitor Physical Mounting Interface Standard, “FPMPMI Standard”. It is also compatible with the Ergotron line of mounting and arm solutions. -
Page 13: Connecting Other Video & Audio Sources
AUDIO-L: RCA Audio Left input (white) AUDIO-R: RCA Audio Left input (red) VIDEO: RCA Composite Video input (yellow) S-VIDEO: S-Terminal Video input LINE-OUT: Audio line output PC-IN: PC Audio line input 12VDC: DC input Audio amplified output Kensington Security Slot (7mm * 3 mm) EN-8500... -
Page 14: Adjusting The Viewing Angle
Careful attention is required not to catch your fingers or hands when you change the angle. • The “FOLD” button on the base is for shipping or wall mount use, pls don’t press the button when adjusting the tilt angle. EN-8500... -
Page 15: Operating Instructions
PC & PIP Modes: Automatically adjust the H/V POSITION, CLOCK & FOCUS to optimal value. OSD Mode: EXIT from OSD menu. Or return to previous menu when an OSD sub-menu is active. 6. REMOTE SENSOR Sensor for the remote control. EN-8500... - Page 16 FUNCTION when OSD menu is already active. 8. A-SEL PIP Mode: Audio source select (PIP audio or PC audio) 9. V-SEL ALL Modes: Video source select 10. Power Indicator Green: Power ON AMBER: OFF Mode 11. Power Switch All Modes: Switch monitor ON/OFF. EN-8500...
-
Page 17: Remote Control
EN-8500 OPERATING INSTRUCTIONS (cont) REMOTE CONTROL... -
Page 18: Osd Functions
Press the MENU key again to activate the highlighted function. • Press the VOL & VOL to adjust the selected function. • Press the Auto key to return the main menu or to exit from the OSD. EN-8500 60Hz SELECT: SELECT: Input Source... - Page 19 PC video signal. TV Mode : Display the signal from the TV to full screen. S-VIDEO Mode : Display the signal from the S-VIDEO to full screen. VIDEO Mode : Display the signal from the VIDEO to full screen. EN-8500...
-
Page 20: Screen Controls
Adjust the color from redish white to bluish white. Bluish white color. Redish white.color Adjusts Red intensity. Adjusts Green intensity. Adjusts Blue intensity. EXIT Replace all the item in OSD menu with the Factory default value. And re-do auto-configuration. EXIT EN-8500... - Page 21 Adjust the richness of color Adjust VIDEO sharpness. Replace all the item in VIDEO adjust menu with the Factory default value. Activating this in TV Mode will also set the V-Chip pin number to the default value of “0000”. EXIT EN-8500...
-
Page 22: V-Chip Set Up
．on/off ．caption/text ．channel 1/2 ．field 1/2 ．box/shadow EXIT Function Descriptions Adjust the PIP H.POSITION Adjust the PIP V.POSITION Adjust PIP Size SMALL/STANDARD/LARGE Adjust the PIP Border COLOR PIP Audio Source Select – PC, TV, S-VIDEO or VIDEO EXIT EN-8500... -
Page 23: Plug And Play
EN-8500 PLUG AND PLAY Plug & Play DDC1/2B Feature This monitor is equipped with VESA DDC1/2B(Display Data Channel) capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 24: Technical Support (Faq)
Missing one of the primary colors (RED, GREEN, or BLUE) EN-8500 Possible Solution *Check if the Power Switch is in the ON position *Power Cord should be connected *Check if the PC system is Plug & Play compatible *Check if the Video Card is Plug &... - Page 25 For FOCUS and CLOCK adjustment use “dot-pattern” or win 95/98/2000 shut-down mode pattern . EN-8500 *Adjust pixel frequency (CLOCK) and FOCUS or press hot-key (AUTO) *Adjust RGB color or select color...
-
Page 26: Error Message & Possible Solution
70Hz 720 × 400 70Hz 640 × 480 72.8Hz 640 × 480 75Hz 640 × 480 66.67Hz 800 × 600 56.3Hz EN-8500 VERTICAL RESOLUTION FREQUENCY 800 × 600 60.3Hz 800 × 600 72.2Hz 800 × 600 75Hz 832 × 624 74.5Hz... -
Page 27: How To Install Inf & Icm File
EN-8500 HOW TO INSTALL INF & ICM FILE FOR FIRST TIME INSTALLATION : This is a Plug & Play LCD monitor. Turn off the PC then connect the cables. Power on the PC and it will automatically detect your new monitor. -
Page 28: Specifications
Considerations Power Remote Controller Battery Distance Angle Color system Sound system TV,Video Video format EN-8500 TFT Color LCD (18”) 0.3585mm( H )x 0.3585mm( V ) -80~80° (H) –60~70° (V) 35 ms(tr+tf) 350(typ.) 340(typ.) R,G,B Analog Interface H/V TTL 30kHz – 63kHz 55-75Hz 16.7 million Colors... - Page 29 Switch Power Management Power Consumption ( Maximum ) Regulatory Compliance Monitor Dimension EN-8500 • Standby Power button • Input Video Source selected button • Input Audio Source selected button • Menu button • Auto Adjust/exit button • Volume up / down button •...
-
Page 30: Factory Preset Timing Table
1024 × 768 1024 × 768 CONNECTOR PIN ASSIGNMENT 15 - Pin Color Display Signal Cable PIN NO. DESCRIPTION Green Blue Ground Ground R-Ground G-Ground B-Ground EN-8500 HORIZONTAL VERTICAL FREQUENCY FREQUENCY 31.47kHz 31.47kHz 35.00kHz 37.50kHz 37.879kHz 46.875kHz 49.725kHz 48.363kHz 56.476kHz 60.02kHz... -
Page 31: V-Chip
EN-8500 have this feature and you can adjust the V-Chip setting via OSD. Use arrow keys on the remote controller or control buttons on the front cabinet of the monitor to change the setting. - Page 32 Chip setting, press Exit button on the remote control or auto/exit key on the front cabinet of the monitor to bring up OSD Menu. General Guidance Parental Guidance Suggested Parents Strongly Cautioned Restricted Under 17 Requires No Children Under 17 Admitted Adult Not Rated EN-8500...
