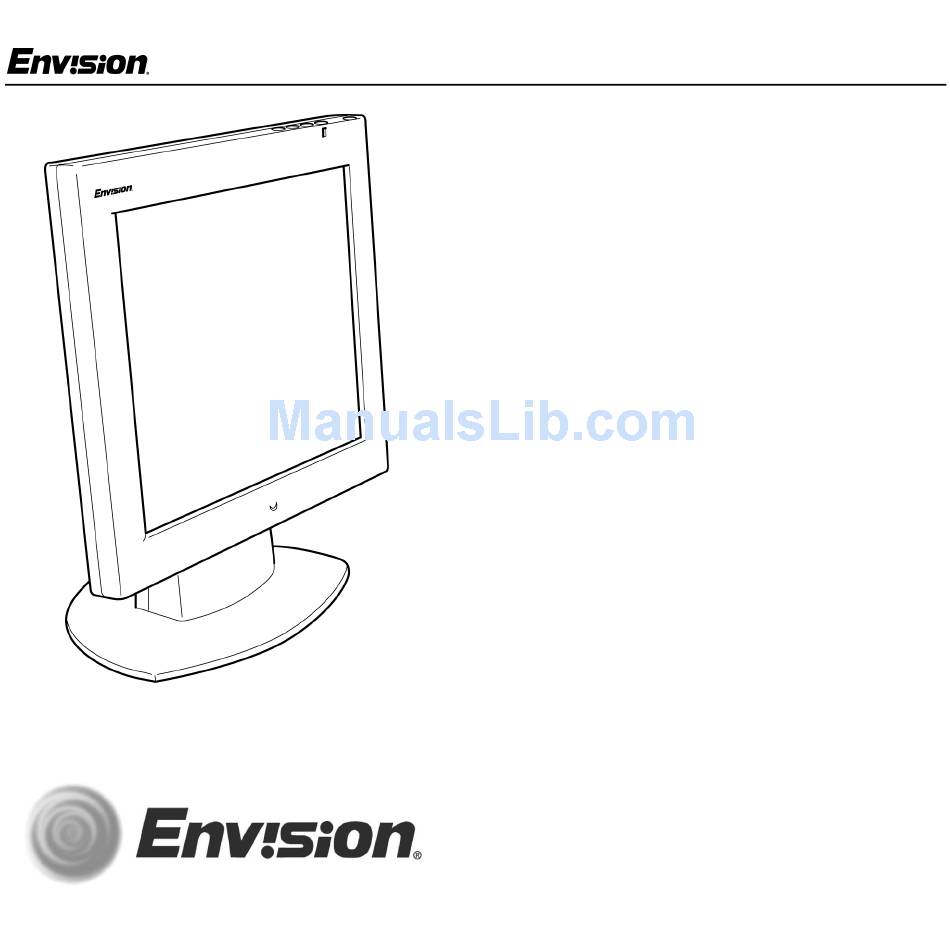

- Page 1 EN-7100e EN-7100e 17 inch TFT LCD Monitor User’s Manual by Envision Peripherals, Inc. www.ENVISIONmonitor.com Before operating your monitor, please read this manual thoroughly. EN-7100e TBC 6332 31MY02...
-
Page 2: Fcc Statement
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. EN-7100e For Your Safety Notice 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. - Page 3 Overloading can result in fire or electric shock. • For use only with power adaptor manufactured by CHI SAM ELECTRONIC, model CH-1205. EN-7100e Precautions • The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin.
-
Page 4: Special Notes On Lcd Monitors
EPI service center for replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. EN-7100e For Your Safety General Notes • Do not install the monitor near heat sources such as radiators or air ducts. -
Page 5: Before You Operate The Monitor
• Space Saving, Compact Case Design EN-7100e Package Contents The box that your monitor was shipped in should have included the following items: 1. EN-7100e LCD Monitor 2. Power Adaptor 3. Power Cord 4. Windows 95/98/2000/ME/XP INF Driver Disk 5. Quick Start Guide 6. - Page 6 AC outlet or UL-approved power strip. 4. Connect the power adaptor into the DC IN socket on the back of the monitor. EN-7100e Caution: Make sure the power cord is the correct type that is required in your area. This LCD...
-
Page 7: Connecting The Wires Using An Optional Power Cord (Not Supplied)
CEE-22 terminated connectors (see illustration above). EN-7100e Follow these steps: 1. Connect the built-in video cable into the 15-pin connector on the back of your computer and tighten the two screws. - Page 8 Follow these steps: 1. Pull the screw covers off the back of the monitor. 2. Support the base and remove the screws. EN-7100e 3. Unhook the cable into the monitor. Remove the base. 4. Remove the back cover from the panel.
-
Page 9: Install An Optional Wall Mounting Arm (Not Supplied)
3. Insert the power cable into the slot on the back of the monitor. EN-7100e Envision's Model EN-7100e is compatible with the Ergotron line of mounting and arm solutions. Contact Ergotron at 800-888-8458 or visit their web site at www.ergotron.com for more information on the many ways on which you can mount your Envision LCD monitor. -
Page 10: Adjusting The Viewing Angle
It may cause damage or breakage. • Be careful to avoid pinching your hand in the swivel base. EN-7100e How to Install INF & ICM File 1. Insert the Windows 95/98/2000/ME/XP INF Driver Disk into your floppy drive. -
Page 11: Front Panel Buttons
MENU: Press this button to open the OSD window or exit from the OSD window. EN-7100e Operating Instructions Power Indicator: A green light indicates that the monitor is on. An orange light indicates that the monitor is in Off mode. -
Page 12: Adjusting The Osd Settings
3. Press MENU to open the function’s window. 4. Press the < or > buttons to change the settings of the function. EN-7100e Operating Instructions 5. To save and exit, highlight the EXIT icon and press MENU or leave the monitor alone for 10 seconds. -
Page 13: How To Optimize The Dos-Mode
2 seconds. The screen will be automatically adjusted. If the screen is distorted (for example: the picture can't go to full screen, the background of white EN-7100e Operating Instructions pattern has vertical stripe noise, or the characters are twisted): 1. -
Page 14: Technical Support (Faq)
The panel used on this product has a total of 3,932,160 sub-pixels. So even the maximum allowed of 6 bad sub-pixels would only amount to a very small 0.00015% of the total sub-pixels. EN-7100e Technical Support (FAQ) Possible Solution EN-7100e... - Page 15 • Make sure the video cable is properly connected to the computer. If the connector is loose, tighten the connector's two screws. • Inspect the video cable and make sure that none of the pins are bent. EN-7100e Technical Support (FAQ) Possible Solution...
-
Page 16: Resolution Chart
640 x 400 640 x 350 720 x 400 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 EN-7100e Technical Support (FAQ) Possible Solution Vertical Frequency 60 Hz 800 x 600 70 Hz 800 x 600... -
Page 17: Specifications
Response time Video Separate Sync. H-Frequency V-Frequency Display Colors Dot Clock Maximum Resolution EN-7100e Appendix Plug & Play TFT Color LCD Input Connector 17.0" (43.2 cm) Diagonal Input Video Signal 0.264 mm (H) x 0.264 mm (V) Maximum Screen Size 120°... - Page 18 Dos-mode Resolution Selected 6500° K 7800° K RGB Color temp. Recall Exit EPA ENERGY STAR® Power Consumption 45 Watts (Maximum) Regulatory UL, CSA, FCC, Compliance TÜV/GS, CE EN-7100e Appendix Optimal Viewing Mode: 1280 x 1024 @ 75 Hz EN-7100e 31MY02...
-
Page 19: Factory Preset Timing Table
Factory Preset Timing Table Standard DOS-Mode SVGA SXGA EN-7100e Appendix Resolution (in pixels) 600 x 400 31.47 kHz 720 x 400 31.47 kHz 640 x 480 31.47 kHz 640 × 480 35.00 kHz 640 × 480 37.50 kHz 800 × 600 37.879 kHz... -
Page 20: Connector Pin Assignment
Connector Pin Assignment Pin Number EN-7100e Appendix Description Pin Number Green Blue Ground Ground R-Ground G-Ground B-Ground EN-7100e Description Detect Cable DDC-Serial Data H-Sync V-Sync DDC-Serial Clock 31MY02... -
Page 21: Limited 3-Year Warranty
This is a warranty statement for Envision color monitors including those sold within North America as specified. Envision Peripherals, Inc. (EPI) warrants this product to be free from defects in material and workmanship for a period of three (3) years after the original date of consumer purchase. - Page 22 EPI is not responsible for any costs associated with the transportation of products across international borders. This includes the international borders of the countries within this warranty statements. EN-7100e © 2002 Envision Peripherals, Inc. 31MY02...
