Summary of Contents for Envision EN5400

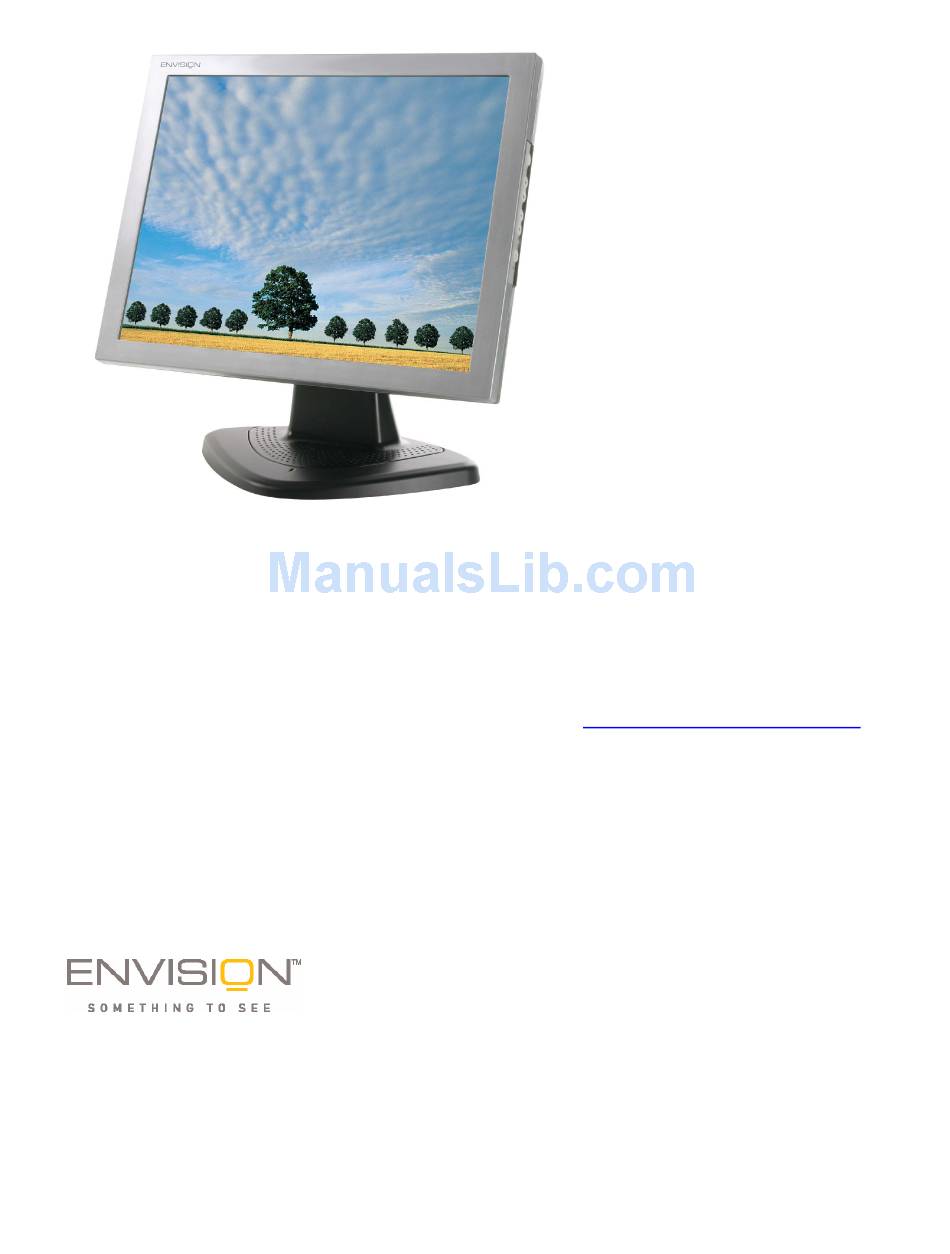

- Page 1 EN5400 15” LCD Monitor User’s Manual By Envision Peripherals, Inc. www.ENVISIONdisplay.com...
-
Page 2: Table Of Contents
LCD MONITOR USER’S MANUAL TABLE OF CONTENTS Table of Contents For Your Safety Precautions & Ergonomic Recommendations General Notes Getting Started Installation the Base and Connecting Cables Operating the Monitor Menu Table Adjusting the Viewing Angle Cleaning Supported Timing Troubleshooting Procedure... -
Page 3: For Your Safety
NERGY WARNING: To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only. ... -
Page 4: Precautions & Ergonomic Recommendations
• Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. -
Page 5: General Notes
GENERAL NOTES The following symptoms are normal with LCD monitor and do not indicate a problem. • Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. -
Page 6: Getting Started
Before unpacking your LCD Monitor, prepare a suitable workspace for your LCD Monitor and computer. You need a stable, level, and clean surface near a wall outlet. Set the LCD Monitor box in an upright position and open from the top of the box before removing the right/left cushions. -
Page 7: Installation The Base And Connecting Cables
5. Put the power cord and signal cable through the hole on the stand. 6. Connect signal cable and DC adapter connector to your Monitor. Make sure the cable heads are securely connected. 7. Replace the plastic rear cover back at the top of the stand. -
Page 8: Operating The Monitor
Monitor OPERATING THE MONITOR The LCD monitor has been preset at the factory with the Timing shown in Appendix to create optimal picture. Users are also able to adjust the picture to the desired brightness and sharpness by following the instructions. -
Page 9: Auto Adjustment
OSD function allows the user to easily adjust the display to the desired quality. Structure of OSD The Adjustment of Monitor’s Screen Display There are two ways to adjust the monitor’s screen, i.e. auto adjustment and manual adjustment. Auto adjustment Power ON the LCD monitor and computer. -
Page 10: Menu Table
LANGUAGE DISPLAY MODE Adjusting the Viewing Angle Your LCD Monitor is designed to allow you to adjust it to an optimal viewing angle. NOTE Do not touch the screen while changing the viewing angle. It may damage the screen. Make sure not to catch your fingers while changing the viewing angle. -
Page 11: Cleaning
Cleaning ARNING If you dropped any material or liquid such as water onto the monitor when cleaning, unplug the power cable immediately and contact your dealer or the nearest service center. Always make sure your hands are dry when unplugging the power cable. -
Page 12: Troubleshooting Procedure
Troubleshooting Procedures If the LCD monitor fails to function correctly, please follow the following steps for a possible solution. Perform the adjustments according to Operating the Monitor. Refer to the following items if you cannot find a proper item listed in the Operating the Monitor or if the problem remains. -
Page 13: Conformity And Compliance
Radio Interference Regulation of the Canadian Department of Communications. CE MARKING DECLARATION OF CONFROMITY The LCD monitor complies with the requirements of related European standards, which include: Emission: EN 55022, EN 61000-3-2, EN-61000-3-3 Immunity: EN 50082-1...
