Summary of Contents for Envision EN-5200e

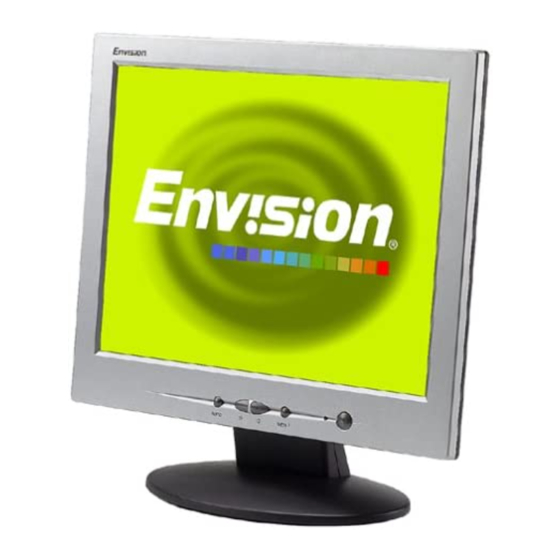

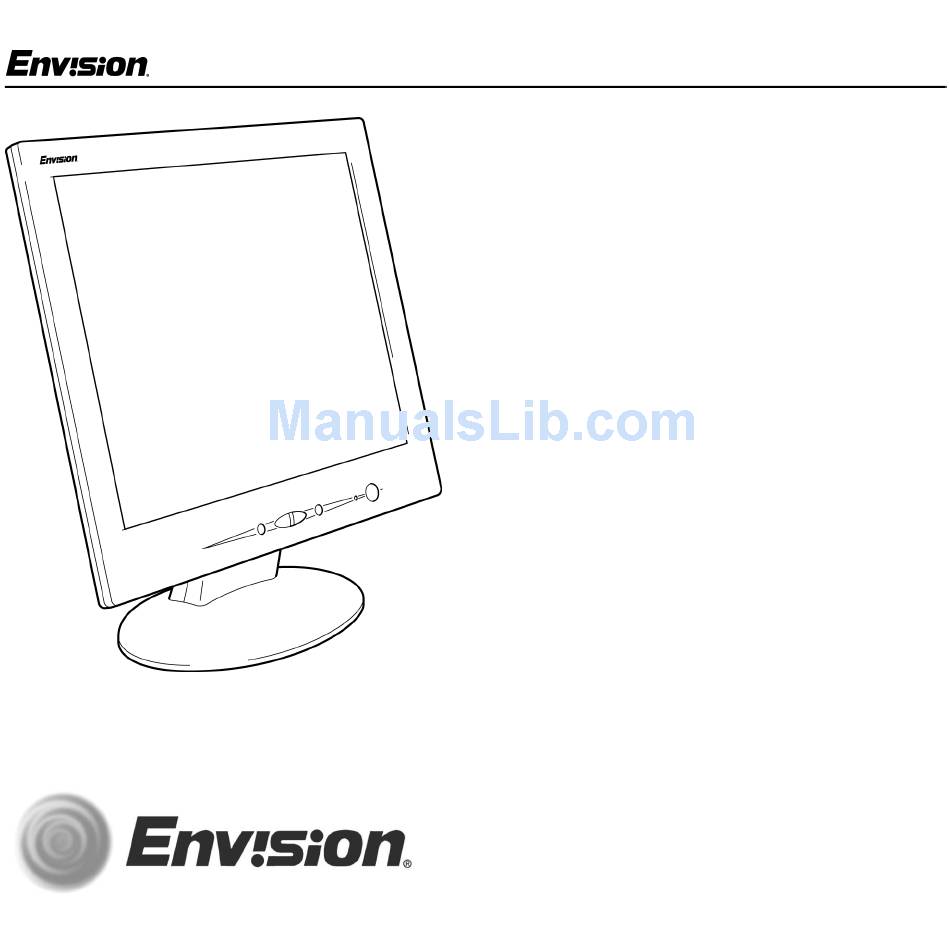

- Page 1 EN-5200e EN-5200e 15 inch TFT LCD Monitor User’s Manual by Envision Peripherals, Inc. www.ENVISIONmonitor.com Before operating your monitor, please read this manual thoroughly. EN-5200e 31MY02...
-
Page 2: For Your Safety
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. EN-5200e For Your Safety Notice 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. - Page 3 • For use only with the included power adapter (Output 12Vdc) which have UL, CSA listed license. EN-5200e For Your Safety • The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. As a safety feature, this plug will only fit into a grounded power outlet.
-
Page 4: Special Notes On Lcd Monitors
EPI service center for replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. EN-5200e For Your Safety General Notes • Do not install the monitor near heat sources such as radiators or air ducts. -
Page 5: Before You Operate The Monitor
EN-5200e Package Contents The box that your monitor was shipped in should have included the following items: 1. EN-5200e LCD Monitor 2. Power Cord 3. Windows 95/98/2000/ME/XP INF Driver Disk 4. Quick Start Guide 5. Booklet (Containing Warranty & Safety... - Page 6 3. Connect the Power Adapter to your monitor. 4. Plug the other end of the power cord into a grounded AC outlet or UL-approved power strip. EN-5200e Caution: Make sure the power cord is the correct type that is required in your area. This LCD...
-
Page 7: Adjusting The Viewing Angle
• Hold the stand firmly when you change the monitor's angle. • You can adjust the monitor's angle from -5° to 25°. EN-5200e • Do not touch the LCD screen when you change the angle. It may cause damage or breakage. - Page 8 Before You Operate the Monitor EN-5200e Preparing To Install An Optional Wall Mounting Arm (Not Supplied) This monitor can be attached to a wall mounting arm you can purchase separately. Disconnect power before performing this procedure. Follow these step. 1. Pull the screw covers off the back of the monitor.
- Page 9 3. Insert the power cable into the slot on the back of the monitor. NOTE: The Envision EN-5200e is compatible with the Ergotron line of mounting and arm solutions. Visit their website at www.ergotron.com for more information on the many ways on which you can mount your AOC LCD monitor.
-
Page 10: Front Panel Buttons
MENU: Press this button to open the OSD window or exit from the OSD window. EN-5200e Operating Instructions Power Indicator: A green light indicates that the monitor is on. An orange light indicates that the monitor is in Off mode. -
Page 11: Adjusting The Osd Settings
3. Press MENU to open the function’s window. 4. Press the < or > buttons to change the settings of the function. EN-5200e Operating Instructions 5. To save and exit, highlight the EXIT icon and press MENU or leave the monitor alone for 10 seconds. -
Page 12: Plug & Play Ddc1/2B Feature
EDID information. The DDC2B is a bidirectional data channel based on the I²C protocol. The host can request EDID information over the DDC2B. EN-5200e Operating Instructions How to Install INF & ICM File 1. Insert the Windows 95/98/2000/ME/XP INF Driver Disk into your floppy drive. -
Page 13: Technical Support (Faq)
• Inspect the video cable and make sure that none of the pins are bent. primary colors (RED, • Make sure the video cable is properly connected to the computer. GREEN, or BLUE) EN-5200e Technical Support (FAQ) Possible Solution EN-5200e... - Page 14 • Make sure the video cable is properly connected to the computer. If the connector is loose, tighten the connector's two screws. • Inspect the video cable and make sure that none of the pins are bent. EN-5200e Technical Support (FAQ) Possible Solution...
-
Page 15: Resolution Chart
640 x 480 640 x 400 640 x 350 720 x 400 640 x 480 640 x 480 640 x 480 800 x 600 EN-5200e Technical Support (FAQ) Possible Solution Vertical Frequency 60 Hz 800 x 600 70 Hz 800 x 600... -
Page 16: Specifications
Response time Video Separate Sync. H-Frequency V-Frequency Display Colors Dot Clock Maximum Resolution EN-5200e Appendix Plug & Play TFT Color LCD Input Connector 15.0" (38.1 cm) Input Video Signal (0.297 mm) (H) x (0.297 mm) (V) Maximum Screen Size 120° (H) 100° (V) - Page 17 Clock H-Position V-Position Auto-Center RGB Color temp. Reset Exit EPA ENERGY STAR® Power Consumption 25 Watts (Maximum) Regulatory UL, CSA, FCC, Compliance TÜV/GS, CE, Windows® XP Logo EN-5200e Appendix Optimal Viewing Mode: 1024 x 768 x 60 Hz EN-5200e 31MY02...
-
Page 18: Factory Preset Timing Table
Factory Preset Timing Table Standard SVGA EN-5200e Appendix Resolution (in pixels) 720 × 400 31.47 kHz 640 × 480 31.47 kHz 640 × 480 35.00 kHz 640 × 480 37.50 kHz 800 × 600 37.879 kHz 800 × 600 46.875 kHz 832 ×... -
Page 19: Connector Pin Assignment
Connector Pin Assignment Pin Number EN-5200e Appendix Description Pin Number Green Blue Ground Ground R-Ground G-Ground B-Ground EN-5200e Description Detect Cable DDC-Serial Data H-Sync V-Sync DDC-Serial Clock 31MY02... -
Page 20: Limited 3-Year Warranty
This is a warranty statement for Envision color monitors including those sold within North America as specified. Envision Peripherals, Inc. (EPI) warrants this product to be free from defects in material and workmanship for a period of three (3) years after the original date of consumer purchase. - Page 21 EPI is not responsible for any costs associated with the transportation of products across international borders. This includes the international borders of the countries within this warranty statements. EN-5200e ©2002 Envision Peripherals, Inc. 31MY02...
