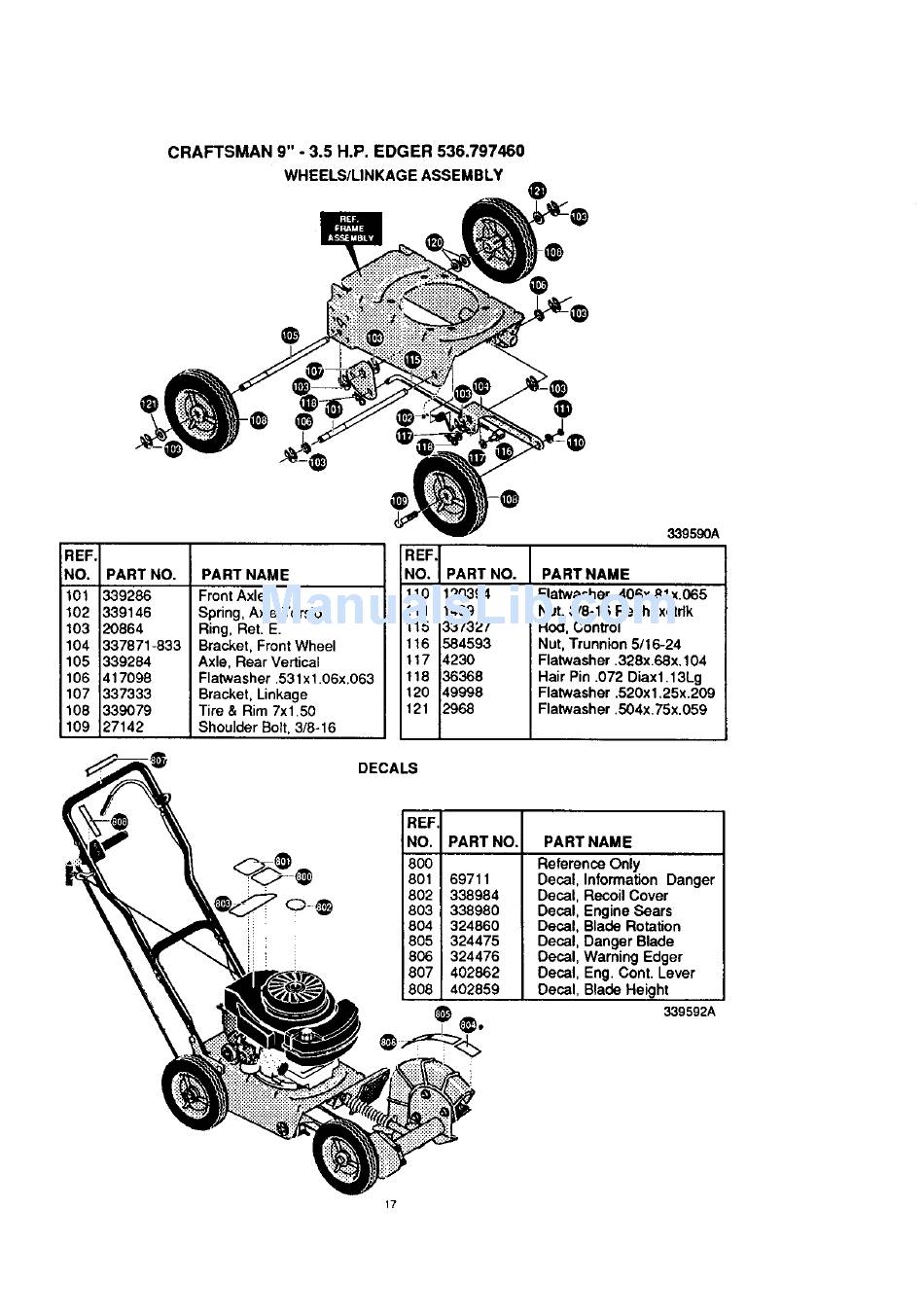

CRAFTSMAN 9" - 3.5 H.P. EDGER 536.797460
WHEELS/LINKAGE ASSEMBLY
O
REF
NO.
101
102
103
104
105
106
107
108
109
PARTNO.
339286
339146
20864
337871-833
339284
417098
337333
339079
27142
PART NAME
Front Axle
Spring, Axle Torsion
Ring, Ret. E.
Bracket, Front Wheel
Axle, Rear Vertical
Flatwasher .531 x 1.06x.063
Bracket, Linkage
Tire & Rim 7xl.50
Shoulder Bolt, 3/8-16
REF
NO. PARTNO.
110 120394
111 1499
115 337327
116 584593
117 4230
118 36368
120 49998
121 2968
DECALS
339590A
PART NAME
Flatwasher .406x.81x.065
Nut, 3/8-16 Reghexctrlk
Rod. Control
Nut, Trunnion 5/16-24
Flatwasher .328x.68x. 104
Hair Pin .072 Diaxl. 13Lg
Flatwasher .520xl .25x.209
Flatwasher .504x.75x.059
REF.
NO.
800
801 69711
802 338984
803 338980
804 324860
805 3_475
8_ 324476
807 402862
808 402859
PART NO. PART NAME
Reference Only
Decal, Information Danger
Decal, Recoil Cover
Decal, Engine Sears
Decal, Blade Rotation
Decal, Danger Blade
Decal, Warning Edger
Decal, Eng. Cont. Lever
Decal, Blade Height
339592A
17
