Summary of Contents for Carrier Infinity Control

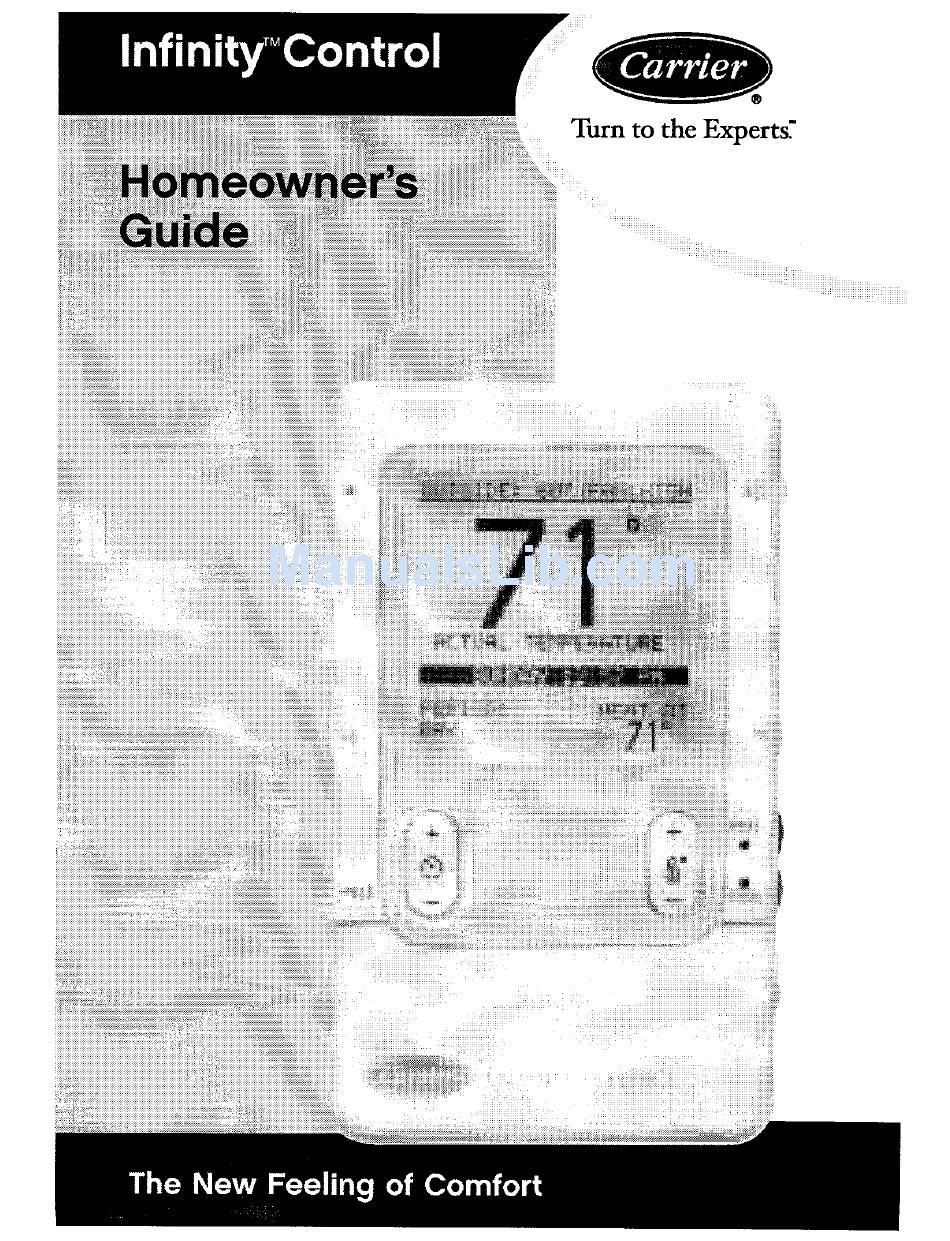

  • Page 1 ® Turn to the Expert_"...
  • Page 2 Room Temperature Day & Time We sincerely appreciate putting your trust in Carrier. Time Period displays the com- fort schedule's active period. Carrier has been delivering the finest indoor comfort Left Button provides accessory equipment since 1902.

  • Page 3: Basic Setup

    Fan Setting Fan Button chooses "high," "medium," "low," or "auto" _iiii ¸ ! ii fan mode. Desired HeatinglCooling Temperature Right Button provides system status. Heat Button selects heating operation. Cool Button selects cooling operation. Heat/Cool LEDs indicate heating or cooling operation.
  • Page 4 QUICK GUIDE INSTRUCTIONS ...2 PROGRAMMABLE FEATURES, SETUP & OPERATION ..BASIC SETUP ....Backlightiog ....Set Day. Time & Humidity ..Determining Your Comfort NORMAL OPERATION ..Schedule ....... Turn System On/Off ... Programming Your Comfort Heating ..... Schedule ....Auxiliary Heat ....

  • Page 5: Heating

    This guide provides the bos_c operations [or setting up and operotlng your tnflntty Control Set Day, Time & Desired Humidity 1 Flip down the door at the base of the ,:L,._r_, Ir'FC Infmlty" Control 2 Press the BASIC button 3 Adjust the highlighted HOUR setting using the TIME (+\-) button 4 Press SCROLL to highlight...
  • Page 6 2 Use t he TEMP (+\-) button toselect your desired temperature which will be displayed on the lower right. An override time w ill bedisplayed on the lower leftPlease note a n override time will not appear if programming has been turned off 3 You can change the override time in 15-minute increments by...
  • Page 7 grammlng or [o create cus[omlzed schedules for [he week weekend, or each day, refer to PROGRAMMABLE FEATURES SETUP & OPERATION on pages 16 - 23 of this manual One Schedule for All Days 1 Fhp down the door at the bottom of the control ALLDAYS...
  • Page 8 Pop-up Messages Your Inftnlty" Control provides important and useful maintenance and service reminders via pop-up messages on the display Accessory Maintenance Reminders: An accessory reminder lets you know when its time for maintenance of your air filter humidifier pad, UV lamp or ventilator When an accessory reminder pop-up...
  • Page 9 Set Day, Time &Desired Humidity 1Flip down the door atthe base ofthe Infinity Control. 2 Press the BASIC button. 3 Adjust the highlighted HOUR setting CURnENTTm_E_DA¥ using the TIME (+_-) button. MINUTE MONDAY 4 Press SCROLL to highlight MINUTE. l!_iTii'i_i BBBD 5 Adjust the MINUTE setting using the TIME...

  • Page 10: Turn System On/Off

    Turn On/Off System The OFF button is used to turn the system both on and off. Heating To select heating, press the red HEAT button. Heating is confirmed when the red LED adja- cent to the red HEAT button is lit. Heating operating when the red LED is gradually puls-...

  • Page 11: Cooling

    the homeowner manually activates emergency heat. Emergency heat ismanually activated by pressing the red HEAT button for four seconds. Emergency heat operation isconfirmed when the red LED a djacent tothe red HEAT button islit, p ulsing on, then o ff, continuously every 1.25 seconds.

  • Page 12: Adjust Heating Temperature

    Adjust Heating Temperature The Infinity Control allows you to adjust your indoor temperature any time, overriding your programmed settings. 1 Press the red HEAT button. Heating is confirmed when the red LED adjacent to the red HEAT button is lit. 2 Use the TEMP (+\-) button to select your desired temperature, which will be displayed on the lower right...

  • Page 13: Hold Current Temperature

    Adjust Fan S peed The Infinity Control offers the benefit of customized fan speeds during continuous fan operation. 1 Press the FAN button to adjust the fan speed between LOW, MEDIUM, HIGH or AUTO airflow. OFF is also a selection when the system has been turned off at the Infinity"...
  • Page 14 Note: You have up to 15 minutes to make changes to the temperature or duration after VACATION has been activated. Any changes made after the 15 minute period will be treated as a temporary override to vacation settings. 7 The system will automatically revert back to its normal opera- tion after the selected number...
  • Page 15 Accessory Status The a ccessory status screen allows you t ocheck the approximate usage ofyour mechanical orelectronic air c leaner, humidifier pad, and UV lamps before routine maintenance isrequired. accessory status screen also s hows your servicing dealer's name and phone number. You m ay also r eset the usage indicators your accessories from this screen.
  • Page 16 Accessory Maintenance Pop-Up Messages Accessory Pop-Up messages remind you when it's time for accessory maintenance. There can be up to five messages, depending on the accessories installed with your system: - Replace UV Lamps - Change Humidifier - Clean Air Filter - EAC - Clean or Replace Air Filter - Clean Ventilator Filter...

  • Page 17: Service Pop-Up Messages

    Service Pop-Up Messages Service Pop-Up messages remind you when it's time for routine equipment maintenance or if the system has malfunctioned. There can be up to three messages, depending on the level of service required: - Routine Maintenance Recommended - System Malfunction - Critical Malfunction ROUTINE MAINTENANCE RECOMMENDED:...

  • Page 18: Keyboard Lock-Out

    Keyboard Lock-Out You can lock t he Infinit_ Control buttons to help avoid inadvertent changes to your settings. Keyboard lock-out can ONLY be activated from the main screen. To do so, simultaneously press the "," and FAN buttons for two seconds.
  • Page 19 Backlighting I nfinity" backlight feature makes the screen easy to read, even at night or in low light conditions. High-intensity backlighting is acti- vated when a button is pushed or the door at the base of the unit is opened. The backlighting will automatically turn off or revert to a...
  • Page 20 WAKE EVENING SLEEP Time / HT / CL Time / HT / CL Time / HT / CL Time / HT _ / CL _ Monday Tuesday Wednesday Thursday Friday Saturday Sunday Programming Your Comfort Schedule The Infinity Control allows you maximum flexibility in creating a comfort schedule...

  • Page 21: One Schedule For All Days

    One Schedule for All Days You can create one schedule for all seven days of the week using the ALLDAYS screen, 1 Flip down the door at the bottom of the control. 2 Press the SCHEDULE button to access schedule screen. 3 If the text '_,LLDAYS_ appears at the top ofthe screen, you are ready to start.

  • Page 22: Weekday Schedule

    Weekdays Schedule You can program one schedule for Monday through Friday using the WEEKDAYS screen. 1 Flip down the door at the bottom of the control, 2 Press the SCHEDULE button to access the schedule screen. 3 If the word 'M/EEKDAYS" appears at the top of the screen, you are ready to start If not, press either the LEFT or RIGHT button as necessary until "WEEKDAYS"...

  • Page 23: Weekend Schedule

    Weekend Schedule You can program an identical schedule for S aturday and S unday using the WEEKEND screen. 1 Flip d own the door atthe bottom ofthe control. 2 Press the SCHEDULE button toaccess the schedule screen. 3 Ifthe word "WEEKEND" appears atthe top ofthe screen, are ready tostart.

  • Page 24: Daily Schedule

    Daily Schedule You can program adifferent schedule for e ach day o fthe week by using the SUNDAY, MONDAY, TUESDAY, WEDNESDAY, THURSDAY, FRIDAY and S ATURDAY screens. 1Flip d own the door atthe bottom ofthe control. 2 Press the SCHEDULE button toaccess the schedule screen.

  • Page 25: Copy Screen

    Copy 1To COPY adaily schedule toanother day, use t he SCROLL but- ton tohighlight the COPY function. 2 You will be prompted toselect YES tocontinue or NO toreturn tothe schedule screen. Press the RIGHT button toaccess the COPY screen. 3 Use the SCROLL button tohighlight the f irst day t owhich you wish tocopy.
  • Page 26 Programming Fan Speed You can select a different fan speed for each time period of your comfort schedule. Scheduling the fan speed follows the same basic steps as programming time and temperature settings. can create one fan schedule for ALLDAYS, WEEKDAYS, WEEKENDS, or a different schedule for each day.
  • Page 27 Fresh Air V entilation Afresh air v entilator isused toexchange stale indoor air f or f resh outdoor air. Fresh air v entilation can be customized with u p tofour settings. The s etting you choose for h eating operation can be differ- ent from the setting you choose for c ooling.
  • Page 28 Accessory Maintenance Reminders The Infinity Control can remind you when it's time to change filter, humidifier pad, UV lamps, and ventilator pre-fiker with a pop- up message. The REMINDERS screen allows you to individually turn on or off your accessory maintenance reminders depending...
  • Page 29 Lighting You c an adjust the backlighting contrast, turn o ff b acklighting alto- gether, or turn o ff t he HEAT and C OOL status lights (LED)s. 1Flip d own the door near the base ofthe Infinity Control. 2 Press the ADVANCED setup button. 3 Press the RIGHT button once to select the LIGHTING screen (2 of 5).

  • Page 30: Heating Humidity

    Heating Humidity Ifyou h ave awhole house humidifier, heat recovery ventilator (HRV) orenergy recovery ventilator (ERV) as apart ofyour system, can select your desired heating humidity setting and c hange your system controls the humidifier or fresh air v entilation. 1Flip d own the door near the base ofthe Infinity Control.

  • Page 31: Advanced Setup

    Cooling Humidity 1 Flip d own the door near the base ofthe Infinity Control. 2 Press the ADVANCED setup button. 3 Press the LEFT button three times to view the COOLING HUMIDITY screen (4 of 5). 4 Use the TEMP (+\-) button to set your desired humidity level.

  • Page 32: Vacation

    Vacation Settings You c an pre-select temperature, humidity and fan settings for y our VACATION function. These settings win t ake e ffect when you a cti- vate V ACATION operation as outlined inthe NORMAL OPERATION section of this manual, pages 7-15. 1 Flip down the door near the base of the Infinity Control.
  • Page 33 Accessory Status,,,pg, This function snows you to check the approximate usage of an air filter, humidifier pad, UV lamp(s) or ventilator pre-filter. All Days Schedule,,,pg. 4 & 18 One comfort schedule that stays the same every day of the week. Auxiliary Heat,,,pg, A supplemental heating source often found with heat pump sys-...

  • Page 34: Weekend Schedule

    Weekdays Schedule...pg, One c omfort schedule that isrepeated every weekday, Monday through Friday. Weekend Schedule,,,pg. One c omfort schedule that isrepeated on Saturday and S unday.
  • Page 35 A member United Technologies Corporation lamily. Stock Symbol _c C_Hie_ Coq_;.mon ()MUIID01 50021 2004 Manutactur_ r_orws the n_htto discolEtinuoor change al ally time, spPcificatlons c_ _lglls wit]_t notice cr w_lh_t incurlhlg obligations...
