- Page 1 ImageDIVA Touch User’s Guide...
-
Page 2: Table Of Contents
Contents User’s Guide ························································································1-1 Contents ··································································································ii Getting Ready ·············································································1-2 Overview ········································································································1-2 Trademark Acknowledgments ····································································· 1-2 System Requirements ··················································································1-3 Application Software Installation ··············································2-2 Installing the Application Software ····························································· 2-2 Uninstalling the Application Software·························································2-7 Operation of Application ····························································3-1 Application Start-Up ·····················································································3-1 Application Shutdown ··················································································3-1 Application Window······················································································3-2 Scan Mode ·····································································································3-3 Image Mode ···································································································3-4... - Page 3 Preferences··································································································· 4-5 Scan Settings.................... 4-5 Output Settings ..................4-6 File Settings ....................4-6 Printer Settings ..................4-7 Other Settings................... 4-7 E-Mail Settings······························································································ 4-8 E-Mail TX (SMTP) settings ............... 4-8 E-Mail RX (POP)..................4-9 Other Settings................... 4-9 ImageDIVA Touch...
-
Page 4: Getting Ready

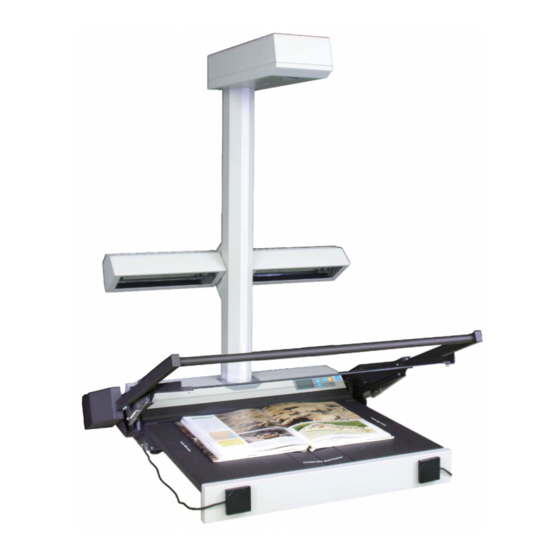

Getting Ready 1 Getting Ready Overview Thank you for purchasing ImageDIVA Touch. This version of the Application supports the following scanners: ScanDIVA PS7000C MKII PS5000C MKII PS5000C Trademark Acknowledgments IBM and IBM PC/AT are registered trademarks of International Business Machines Corporation. -
Page 5: System Requirements
Optical Disc Drive CD-ROM drive Display Display that has a screen resolution of 1,280 x 1,024 or more Scanner ScanDIVA Scanner Driver: Ver. 1.0.0.0 or later Scanner Firmware: Ver. 1.00 or later PS7000C MKII / PS5000C MKII Scanner Driver: Ver. 3.1.7.0 or later Scanner Firmware: Ver. -
Page 6: Application Software Installation
Application Software Installation 2 Application Software Installation This chapter details the procedures for installing the Application Software. NOTE ! When installing the Scanner Driver, follow the procedure in the Operator’s Manual or User’s Guide of the scanner. Perform the Setup Adjustment after completing the Scanner Driver's Installation. - Page 7 Application Software Installation When the installation screen appears, click Install ImageDIVA Touch to begin application installation. If the User Account Control dialog box appears, click Yes. When the installation screen of “Microsoft .NET Framework 4.0 Client" and “Microsoft SQL CE3.5 SP2" is displayed, click Install. ImageDIVA Touch...
- Page 8 Application Software Installation When the Welcome to the InstallShield Wizard for ImageDIVA Touch screen appears click Next. NOTE ! Uninstall "ImageDIVA (ver.1.x)", and then install the latest version if the following screen is displayed. When the License Agreement screen appears, confirm the following messages and click Yes.
- Page 9 Application Software Installation When the Software Setup is executed, input the serial number, and click the Next. NOTE ! The serial number is shown in the upper right of the "End User Software License Agreement" bundled with the CD-ROM. If the serial number input is skipped, the software can be used on a trial basis for 30 days and the serial number input will be acknowledged from the application after installation.
- Page 10 Application Software Installation When the InstallShield Wizard Complete screen appears, click Finish, and remove the CD-ROM from the computer. ImageDIVA Touch...
-
Page 11: Uninstalling The Application Software
Application Software Installation Uninstalling the Application Software When the Application installed on the computer is no longer needed, use the following procedure to remove it. From the start menu, choose Control Panel. Click Uninstall a Program. Select Confirm the Power Switch of the Scanner is turned OFF. From the start menu, choose Control Panel. - Page 12 Application Software Installation Restart the Personal Computer. The application was uninstalled successfully. ImageDIVA Touch...
-
Page 13: Operation Of Application
Operation of Application 3 Operation of Application Application Start-Up Connect the Scanner to the Personal Computer with a USB cable, and turn ON the Power Switch of the Scanner. Turn ON the Power Switch of the Personal Computer, and start Windows. Click the "Start"... -
Page 14: Application Window
Operation of Application Application Window Scan Mode Select the desired settings for Scan Size, Resolution, Book Correction, and Auto Cropping. See Section 3.4 Scan Mode Image Mode Select the image type to be scanned. See Section 3.5 Image Mode Image Adjustment Adjust the brightness and contrast of the image. -
Page 15: Scan Mode
NOTE ! After scanning, the Scan Mode will not revert to its default settings until the time out interval has been reached. The available Scan Size settings depend on the scanner model. ScanDIVA, PS7000C MKII PS5000C MKII, PS5000C Scan Size Selects the scanning size. -
Page 16: Image Mode
Operation of Application Image Mode Pressing the Image Mode button toggles through the available image modes. NOTE ! The Image Mode can still be changed after scanning. Displays the document in color regardless of the color of the document. Displays the document in grayscale regardless of the color of the document. -
Page 17: File Format
Operation of Application Image Mode: B/W 1. Preview Window The scanned image is displayed. 2. Brightness The brightness of the image is adjusted. 3. Contrast The contrast of the image is adjusted. 4. Threshold The threshold is adjusted (only available in B/W mode). -
Page 18: Scan
Operation of Application Scan Starts scanning the document and displays the Preview Image. Scanning can also be started by using the Manual Switch (optional). Preview Area The scanned image is displayed. The displayed image is magnified continuously and displayed. The amount of magnification is displayed in the scan window (upper right) while zooming. -
Page 19: Output Buttons
Operation of Application 3-10 Output Buttons The scanned image is printed, saved, or e-mailed. Outputs the image to the printer. Saves the image to favorite folder. Saves the image to USB memory. Removal of USB Memory is enabled. Sends the image via E-mail. ImageDIVA Touch... -
Page 20: E-Mail
Operation of Application 3-11 E-Mail E-Mail Transmission by E-mail is executed. Address Book Opens the Address Book window. The Address Book button is only displayed NOTE ! when it is enabled in E-Mail Options. Input the E-mail address. Images cannot be sent to multiple NOTE ! recipients. -
Page 21: Address Book
Operation of Application Address Book The address is selected from E-mail addresses that have been registered in the Address Book. Name, Address The names and addresses registered in the Address Book are displayed. Adds a new E-mail address. Edit Edit E-mail addresses that have been registered. Delete: Delete E-mail addresses that have been registered. -
Page 22: Edit
Operation of Application Edit E-mail Address is registered and edited. Name Inputs the address name. Address Inputs the E-mail address. Registers the edited name and address. Cancel Cancels the selection and closes the window. 3-10 ImageDIVA Touch... -
Page 23: Batch Scan Mode
Operation of Application 3-12 Batch Scan Mode The Batch Scan mode automatically saves the image into the specified folder as each page is scanned. Only the "Start" button is displayed at the bottom of the screen when ImageDIVA is in the Batch Scan Mode and "Batch Scan Mode"... -
Page 24: Start Of Batch Scan
Operation of Application Start of Batch Scan The "Scan" button is pressed after “Scan Mode" is set, and the original is read. NOTE ! The image in the Preview Window is not saved until the "Start" button is pressed. Sets the ”Image Mode", ”Image Adjustment”, “File Format", and "“Cropping Area". -
Page 25: Application Settings
Application Settings 4 Application Settings Keyboard Shortcuts Shortcuts Functions Ctrl + a Input the Serial Number. Ctrl + s Select a Scanner. Ctrl + o Open the TWAIN Driver screen. Ctrl + i Open the scanned image with the application related to Windows. -
Page 26: Input Serial Number
Application Settings Input Serial Number When Ctrl-a is pressed, the Serial Number input view is displayed. NOTE ! If the Serial Number has been registered previously it is displayed. Select Scanner When Ctrl-s is pressed the active scanner view is displayed. Selects the active scanner when two or more scanners are connected. -
Page 27: Open The Twain Driver Screen
NOTE ! Scanning cannot be executed from the TWAIN Driver's screen. The following settings are not valid when scanning using the TWAIN driver: Mode (ScanDIVA) Image Mode (Excluding ScanDIVA), Page Rotate Cropping Area in Preview The Size and Resolution settings must be values that are valid in the Scan Mode. -
Page 28: Display Of The Scanned Image
Application Settings Display of the Scanned Image When Ctrl - i is pressed, the last file that was saved to File or USB is opened by the related application in Windows. NOTE ! Neither Print nor E-Mail output files are displayed. ImageDIVA Touch... -
Page 29: Preferences
Application Settings Preferences When Ctrl - k is pressed, the Preferences screen is displayed. In the Preference screen various settings of the Application can be made, as shown below. Scan Settings Scan Size Sets the default Scan Size. High Resolution Sets the default High Resolution setting. -
Page 30: Output Settings
Application Settings Output Settings NOTE ! It is necessary to select one or more Output Settings in the Preferences screen. Printer Displays the “Printer” button. File Displays the “File” button. Displays the “USB” button. E-Mail Displays the “E-Mail” button. 10 E-Mail Option Sets the E-mail parameters. -
Page 31: Printer Settings
Application Settings 15 Compression Sets the appropriate type of compression for each file format, as follows: Format Compression Quality File Size High Large JPEG (Fine) JPEG (Standard) JPEG (Economy) Small TIFF High Large JPEG Small JPEG Fine High Large Standard Economy Small Printer Settings... -
Page 32: E-Mail Settings
Application Settings E-Mail Settings E-Mail TX (SMTP) settings SMTP server Sets the SMTP server address. Port Number Sets the port number for E-mail transmission. Sets SSL (enable/disable) for E-mail transmission. Mail Address Sets the sender's mail address. SMTP Sets SMTP verification (enable/disable). Authentication ... -
Page 33: E-Mail Rx (Pop)
Application Settings E-Mail RX (POP) When "POP Before SMTP" is “ON”, E-mail reception is enabled. POP Before SMTP Sets POP Before SMTP (enable/disable). POP Before SMTP is not available NOTE ! when SMTP Authentication is enabled. POP Server Sets the POP Server Address for E-mail reception. 10 Port Number Sets the Port Number for E-mail reception. - Page 34 Copyright 2012 KYOKKO SEIKO CO., LTD. The information contained in this manual is subject to change without notice to incorporate improvements made on the product or products the manual covers. 2012. 08 7177-7502-01...
