OPERATING INSTRUCTIONS AND OWNER'S MANUAL
MR. HEATER
MH170FAVT
BUDDY-PRO
TS170FAVT
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
— An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
•
Do not try to light appliance.
•
Extinguish any open flame.
•
Shut off gas to appliance.
— Service must be performed by a qualified service agency.
This is an unvented gas-fired portable heater. It uses air (oxygen) from the area in which it is used.
Adequate combustion and ventilation air must be provided. Refer to page 3.
READ INSTRUCTIONS CAREFULLY: Read and
follow all instructions. Place instructions in a
safe place for future reference. Do not allow
anyone who has not read these instructions to
assemble, light, adjust or operate the heater.
ENERCO GROUP, INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 216-916-3000
STARTING SN#MHC-701700009880
Model # 170FAVT
FORCED-AIR PROPANE
CONSTRUCTION HEATER

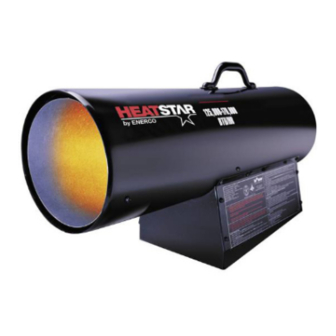

HEATSTAR
HS170FAVT
70176 Rev. C 4/07
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Enerco MR. HEATER MH170FAVT
Summary of Contents for Enerco MR. HEATER MH170FAVT
- Page 1 This is an unvented gas-fired portable heater. It uses air (oxygen) from the area in which it is used. Adequate combustion and ventilation air must be provided. Refer to page 3. ENERCO GROUP, INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 216-916-3000 STARTING SN#MHC-701700009880...
-
Page 2: Table Of Contents
FUEL CONSUMPTION ... 5.8 - 7.9 lbs/hr FUEL ORIFICE PORT NO.: ... 18 FUEL ORIFICE PORT SIZE:... 0.80MM HEATED AIR OUTPUT: .. 450 CFM (12.74 CU M/M) Enerco Group, Inc. | Force-Air Propane Construction Heater (36.6 - 49.8 kW) SolidState,10-15 sec. 240°F (116°C) -
Page 3: Operating Precautions
Heater near floor Forced air (170 FAVT) 3 ft Enerco Group, Inc. | Force-Air Propane Construction Heater SAFETY PRECAUTIONS Check the heater thoroughly for damage. DO NOT operate a damaged heater. DO NOT modify the heater or operate a heater which has been modified from its original condition. -
Page 4: Odor Fade Warning
Adjustments to elevation should only be made after the heater has cooled to touch. To adjust the heater combustion tube elevation, turn the adjustment screw knob counterclockwise and lift the combustion tube to desired position. Enerco Group, Inc. | Force-Air Propane Construction Heater... -
Page 5: Preparing For Operation
When the heater is working properly: • The flame is contained within the heater. Enerco Group, Inc. | Force-Air Propane Construction Heater • The flame is essentially blue with perhaps some yellow tipping. -
Page 6: Wiring Diagram
COLOR White Black Yellow - (Hi-Temp) 16 1/2" Yellow - (Hi-Temp) 16 1/2" Orange Green R e d White Black Enerco Group, Inc. | Force-Air Propane Construction Heater Model #170FAVT WIRING DIAGRAM SPARK PLUG VALVE LINE HIGH-LIMIT MOTOR VALVE NEUT... -
Page 7: Parts List
3/8MPT x 1/2 SAE FLR 22253 Fuel Tube Assembly 28774 Spark Plug, Flame Sensor 23037 Spark Plug Nut 24340 Thermostat Mounting Bracket Enerco Group, Inc. | Force-Air Propane Construction Heater PARTS LIST Qty. Item PART NO. Description 22254 Thermostat Assembly 26070... -
Page 8: Parts Ordering Information
If a part is damaged or missing, call our Technical Support Department at 800-251-0001. Address any Warranty Claims to the Service Department, Enerco Group, Inc., 4560 W. 160th St., Cleveland, Ohio 44135. Include your name, address and telephone number and include details concerning the claim. - Page 9 à l'adéquation concernant garantie autre aucune n'existe l'entreprise. d'achat date téléphone numéro adresse 4560 Inc., Group, Enerco Department, technique soutien service main- matériel défauts dans fabricant l'acheteur réparera L'entreprise l'acheteur. pour l'entreprise, instructions dans main-d'œuvre, dans problème...
- Page 10 22251 Ventilateur 26074 Nyloc réglage, 26010 poignée montage Clips 27094 Poignée 27095 l'orifice Écrou 23038 commande Interrupteur 26168 flamme Stabilisateur 21146 Orifice 22250 central Bonbonne 22249 extérieur Boîtier 22272 extérieur Boîtier 22248 Description ART. N° Modèle Inc. Group, Enerco Article...
- Page 11 COMMANDE MOTERRE NEUTRE ROBINET HIGH-LIMIT CORDON CHASSIS LATERRE MISE MAXIMUM COMMANDE INTERRUPTEUR DIALLUMAGE BOUGIE FAVT nº CÂBLAGE Appareil Inc. Group, Enerco Noir Blanc Rouge Vert Orange température) (16,5po) (Haute Jaune (16,5po) température) l'intention (Haute Jaune avertissements Noir zone Blanc appareil...
-
Page 12: Entretien
». Précautions « toutes Respectez immédiatement avertissez découvrez, l'expédition. pendant chauffage l'appareil qu'aurait dommage tout soigneusement FONCTIONNEMENT INSTRUCTIONS Inc. Group, Enerco pétrole relative propane Quand Coupez quelque à souple Avant qualifié. Fermez °F), position Tournez dans Laissez Fermez Ê zone Réglez... - Page 13 ODORANTES Appareil Inc. Group, Enerco PAS! N'ATTENDEZ VOTRE AVEC gaz, odeur moindre personnes tuyau raccords, temps sentir à consiste importe • d'alimentation d'apporter l'entretenir,...
- Page 14 édifices temporairement destiné propane. fonctionne à pulsé à chauffage appareil FONCTIONNEMENT LIÉES PRÉCAUTIONS Inc. Group, Enerco pulsé Appareil dangers présence Lorsque modifiés systèmes pièces l'appareil ventilation • • • • • sont carbone petites chauffage ambiant.
-
Page 15: Spécifications
CHAUFFAGE SÉCURITAIRE DISTANCE PAPIER CONSTRUCTION, TELS COMBUSTIBLES CONSERVEZ D'INHALATION AVERTISSEMENT D'INCENDIE, DANGER MAISON DANS AVERTISSEMENT POUR CONÇU Appareil Inc. Group, Enerco CHAUFFÉ D'AIR SORTIE ORIFICES DIMENSION D'ORIFICES NOMBRE CONSOMMATION ambiante Température TEMPÉRATURE COMMANDE Transistorisée, COMMANDE ALLUMAGE CONSOMMATION SORTIE À lb/po²) - Page 16 à Interdisez ultérieurement. référer vous pour sécurité Conservez instructions. toutes observez INSTRUCTIONS SOIGNEUSEMENT INSTRUCTIONS Enerco Group, Inc. | Force-Air Propane Construction Heater 4560 INC., GROUP, ENERCO adéquate d'air circulation ambiant. portatif chauffage appareil effectué être doit L'entretien à...
