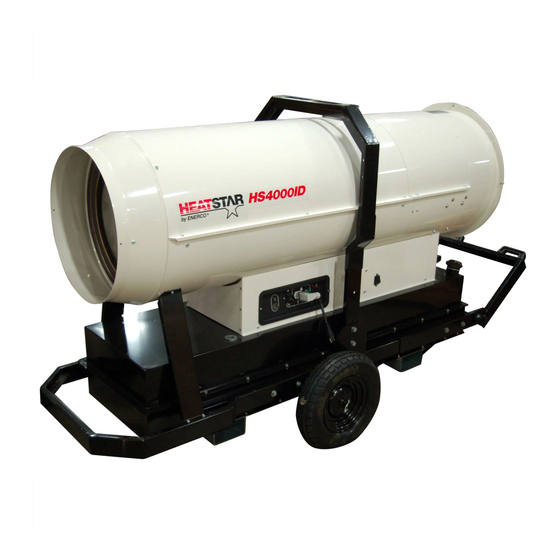

Operating instructiOns and Owner's Manual
Mr. Heater
1000ID,
2000ID
3000ID
indirect Fired
pOrtaBle Heater
if the information in this manual is not followed exactly, a fire or explosion
warning:
may result causing property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
— Service must be performed by a qualified service agency.
This is a vented portable heater. It uses air (oxygen) from the area in which it is used. Adequate
combustion air and ventilation must be provided. Refer to page 5.
read instructiOns careFullY: Read
and follow all instructions. Place instructions in
a safe place for future reference. Do not allow
anyone who has not read these instructions to
assemble, light, adjust or operate the heater.
ENERCO GROUP, INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 800-251-0001
Heatstar
BY enercO
1000ID,
2000ID
3000ID,
4000ID
08/08 #50120

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mr. Heater 1000ID and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Enerco Mr. Heater 1000ID

  • Page 1: Parts List

    This is a vented portable heater. It uses air (oxygen) from the area in which it is used. Adequate combustion air and ventilation must be provided. Refer to page 5. ENERCO GROUP, INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 800-251-0001 08/08 #50120...
  • Page 2: Table Of Contents

    • THE POWER SUPPLY CABLE MUST BE REPLACED ONLY BY QUAlIFIeD PeRSoNNel. • ONLY USE AN ORIGINAL H07RN-F POWER CABLE WITH WATeRPRooF PlUG. • DO NOT TOUCH THE EXHAUST GAS OUTLET. DANGER oF BURNS! eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 3: Specifications

    Compulsory flue draft [in WC] 0.05 0.05 0.05 0.05 Tank capacity [gal] 10.8 17.2 27.7 35.7 Dimensions, l x W x H [in] 49.3x20.0x30.5 56.5x23.2x37.60 68.5x27.6x37.7 66.3x27.6x45.6 Net Weight [lb] eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 4: Warnings

    • Floors and ceilings must be made of fireproof materials in moving the heater wait till it has totally cooled off and make sure the room where the heater is operated. oil tank cap is securely fixed. eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 5: Maintenance

    Chimney ending H shape “GAP oF eleCTRoDeS”. n.B. above recommendation indicative only. Have your Flue connections diagram installation checked by local authority. VentilatiOn 6 “ eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 6: Troubleshooting

    Check pump pressure Replace nozzle Heater does not stop Solenoid Replace solenoid coil or complete solenoid If heater still not working properly, please revert to nearest authorized dealer. eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 7: Wiring Diagrams

    Fuse Control Transformer H.V. Room Thermostat overheat Thermostat Relays Solenoid Valve 1° Control Box Photocell Air pressure control Condenser Heater filter Fan Motor Fan thermostat electric pilot Ground eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 8: Wiring Diagram

    Thermostat Relay Solenoid Valve 1° Control Box Solenoid Valve 2° Fan thermostat Photocell Air pressure control Condenser Heated filter Fan Motor Air pressure switch electric pilot lamp Ground eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 9 Relay overheat Thermostat Control Box Solenoid Valve 1° Fan thermostat Solenoid Valve 2° Heated filter Photocell Connector Condenser overheat safety thermostat Fan Motor Ground electric pilot lamp Control eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 10 1000id series indirect-Fired portable Heater eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 11: Parts List 1

    SleeVe Ø8 X Ø6 X 9.5 T20234 oR KIT oIl FIlTeR P50126 eleCTR. CoMPoNeNTS DRAWeR T20206 FIlTeR CARTRIDGe e20508 FUSe HolDeR T20212 FIlTeR HoUSING e10308 FUSe (6X30) 10A eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 12 2000id/3000id series indirect-Fired portable Heaters eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 13 • CoNNeCTIoN 1/8” e10514 • CoUPlING K2 I30325-1 • • CoNNeCTIoN 1/8” T20241 • • oR KIToIl FIlTeR I20325 • • CoNNeCTIoN 1/8” T20242 • • FIlTeR CARTRIDGe eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 14 4000id series indirect-Fired portable Heaters eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 15 4000id series indirect-Fired portable Heaters eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 16 Wheel 0 260 - 0 25 G06073 Plate for electrical components M20202 Spring washer 025 E10102-P Switch 0-1 125019 Drain plug e20640 Thermostat plug 3P+T C30350 oR 030 x 2,62 e20665 Drain plug eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 17 Condenser 20 IJF T20239 Oil pre-heaters filter 1/4” T20241 oR KIToil filter T20242 Filter cartridge G06170-9005 Filter support 131121 Conn. Straight 04,5 M5 cOluMn intentiOnallY leFt Blank eNeRCo GRoUP, INC. |Indirect Fired Portable Heater operating Instructions and owner’s Manual...
  • Page 18: Parts Ordering Information

    This Warranty gives you specific legal rights, and you may have other rights which vary from state to state. enerco Group, Inc. reserves the right to make changes at any time, without notice or obligation, in colors, specifications, accessories, materials and models.
  • Page 19 #50120 08/08 800-251-0001 • 44135 OHIO CLEVELAND, ST., 160TH 4560 INC., GROUP, ENERCO réservés. droits Tous Inc. Group enerco 2003, © Inc. Group, enerco déposées commerce marques sont HeatStar Heater 800-251-0001 • É.-U. 44135 OHIO CLEVELAND, ST., 160TH 4560 INC.,...
  • Page 20 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO BLANC QUITTÉ INTENTIONNELLEMENT COLONNE 04,5 droit Raccord Support G06170-9005 filtre Cartouche T20242 gasoil filtre T20241 1/4" pre-chauffage Filtre T20239 Condensateur 1233 condensateur avec 200W Moteur E10677-110 ventilateur moteur...
  • Page 21 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO Bouchon e20665 2,62 C30350 3P+T thermostat Fiche e20640 vidange Bouchon 125019 Interrupteur E10102-P elastique Rondelle M20202 support Plaqu G06073 Roue C10546 21-24 LANDIS Coffret e40113 roues essieu Support...
  • Page 22 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO Indirect-tiré Portatif Chauffage Série 4000ID...
  • Page 23 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO Indirect-tiré Portatif Chauffage Série 4000ID...
  • Page 24 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO 1/8” CoUde • • I20325 • • • • FILTRe CARToUCHe T20242 1/8” CoUde I20325 • • • GASoIL FILTRe T20241 1/8” CoUde I30325-1 ACCoUPLeMeNT • e10514 Ø5X9...
  • Page 25 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO Indirect-tiré Portatif Chauffage Série 2000ID/3000ID...
  • Page 26 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO BoUCHoN e20665 3P+T THeRMoSTAT FICHe e20640 INTERRUPTEUR E10102-P SUPPoRT PLAQU G06073 21-24 LANDIS COFFRET e40113 21-24 LANDIS SUPPORT e40107 SUPPoRT G06103 H.T. TRANSFoRMATeUR SUPPoRT G06109 110V 818C H.T.
  • Page 27 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO Indirect-tiré Portatif Chauffage Série 1000ID...
  • Page 28 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO Terre d’alimentation temoin Lampe surchauffe securite Thermostat ventilator Moteur rechauff gasoil Filtre Condensateur Connecteur Photoresistance ventilateur Thermostat 2° Electrovanne securite Coffret 1° Electrovanne Relais surchauffe Thermostat d’ambiace thermostat Prise H.T.
  • Page 29 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO d’alimentation temoin Lampe Terre ventilator Moteur optional Pressostats Condensateur rechauff gasoil Filtre Photoresistance ventilateur Thermostat 2° Electrovanne securite Coffret 1° Electrovanne Relais surchauffe Thermostat d’ambiace thermostat Prise H.T.
  • Page 30 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO Terre d’alimentation temoin Lampe ventilateur Thermostat ventilator Moteur rechauff gasoil Filtre Condensateur optional Pressostats Photoresistance securite Coffret 1° Electrovanne Relais surchauffe Thermostat d’ambiace thermostat Prise H.T. Transformateur Fusible Commutateur LÉGENDE...
  • Page 31 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO autorisé assistance – vente centre proche plus notre contacter veuillez générateur, fonctionnement mauvais cause sont solutions contrôles l’électrovanne corps Remplacer ferme L’électrovanne s’arrête générateur gicleur Subtituer pompe pression valeur Vérifier...
  • Page 32 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO CHEMINÉE FIXATION SCHÉMA eLeCTRodeS”. “TRoU schéma données respectant distance leur régler électrodes nettoyer parties, différentes nettoyer brûleur •Démonter électrodes; tension haute connexions câbles l’état •Contrôler ventilateur; pales interne...
  • Page 33 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO MARCHe”. “MISe paragraphe spécifiques NUe. FLAMMe d’UNe LoIN instructions répéter réarmement bouton pousser L’EXTÉRIEUR, À RÉSERVOIR TOUJOURS REMPLISSEZ • faut générateur redémarrer faire Pour ventilateur). arrêt CoMBUSTIBLe. AJoUTeR l’air,...
  • Page 34 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO [lb] Weight 66,3x27,6x45,6 68,5x27,6x37,7 56,5x23,2x37,60 49,3x20,0x30,5 [in] dimensions, 35,7 27,7 17,2 10,8 [gal] réservoir Capacité 0,05 0,05 0,05 0,05 nécessaire minimum Tirage [in] fumées sortie Diamètre B=1,14 A=1,5 A=1,02 N°...
  • Page 35 Propriétaire Manuel Instructions marcher Faire fait indirect-tiré portatif |Chauffage INC. GROUP, ENERCO BRÛLe! dANGeR D’ÉCHAPPEMENT. L’ISSUE TOUCHEZ • IMPeRMÉABLe. COURANT PRISE AVEC ORIGINAL H07RN-F l’appareil. impropre utilisation à sonnes per-rès, et/ou D’ALIMENTATION CÂBLE SEULEMENT UTILISEZ • choses dommages pour responsable n’est...
  • Page 36 #50120 08/08 800-251-0001 • 44135 OHIO CLEVELAND, ST., 160TH 4560 INC., GROUP, ENERCO page à allusion Faites fournis. être doivent ventilation adéquat combustion L’air déchargé. portatif chauffage C’est qualifiée. service agence exécuté être doit service — appareil. autre cela alentours...
