Installer: Leave this manual with the appliance. Consumer: Retain this manual for future reference.

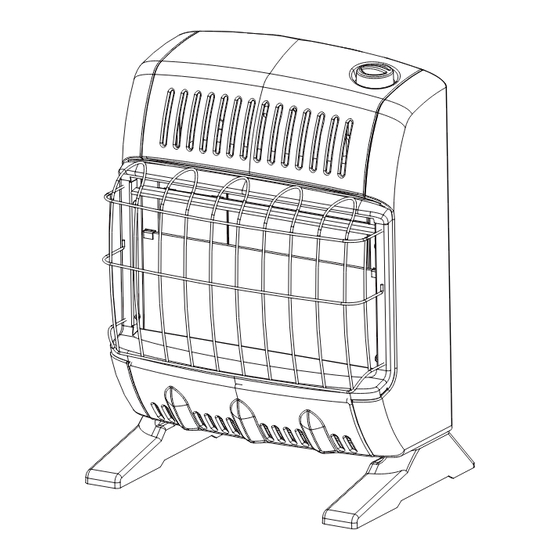

HSVFR10LPT
HSVFB10LPT
Plaque Heaters
MHVFR10LP
HSVFR10LP
TSVFR10LP
WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Shut off gas supply
• Do not try to light any appliance
• Do not touch an electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation air must be provided. Refer to Fresh Air for Combustion and
Ventilation section on page 4 of this manual.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property
damage. Refer to this manual for correct installation and operational procedures. For assistance or additional
information consult a qualified installer, service agency, or gas supplier.

INSTALLATION INSTRUCTIONS

AND OWNER'S MANUAL
READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place
instructions in a safe place for future reference. Do not allow anyone who has not
read these instructions to assemble, light, adjust or operate the heater.
Mr. Heater, INC., 4560 W. 160
TH
ST., CLEVELAND, OHIO 44135 · 216-916-3000
For model serial numbers,
see page E16.
Blue Flame Heaters
MHVFB10LP
HSVFB10LP
TSVFB10LP
70810 Rev. B 05/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HeatStar HSVFB10LP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enerco HeatStar HSVFB10LP

Summary of Contents for Enerco HeatStar HSVFB10LP

  • Page 1: Installation Instructions

    Do not allow anyone who has not read these instructions to assemble, light, adjust or operate the heater. ST., CLEVELAND, OHIO 44135 · 216-916-3000 For model serial numbers, see page E16. Blue Flame Heaters MHVFB10LP HSVFB10LP TSVFB10LP 70810 Rev. B 05/10...

  • Page 2: Table Of Contents

    This appliance may be installed in an aftermarket* permanently manufactured (mobile) home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with any other gas. *Aftermarket completion of sale, not for the purpose of resale, from the manufacturer.

  • Page 3: Specifications

    SPECIFICATIONS BTU (Available) Type of Gas Ignition Pressure Regulator Setting Inlet Gas Pressure (Maximum) Inlet Gas Pressure (Minimum) Burners / Orifice nozzles Thermostatic Control Clearances: inches (mm) Sides Floor (min. to top of carpet) Fabric / flammable objects PRECAUTIONS: 1. BF-10 LP and IR-10LP may be installed in a bed- room, but not a bathroom, or any place where a strong wind would shut down the appliance.

  • Page 4: Local Codes

    SAFETY DEVICE This heater has a pilot with an Oxygen Depletion Sen- sor (ODS) safety shut off system. The ODS/pilot shuts off the heater if there is not enough fresh air. IGNITION SYSTEM PIEZO: BF10LP/ IR10LP – The heater is equipped with a piezo manual ignitor.

  • Page 5: Ventilation Air

    Gas furnace, Vented gas heater, Gas fire- place logs, and Other gas appliances* *Do not include direct-vent gas appliances. Direct- vent draws combustion air from the outdoors and vents to the outdoors. Example: Gas water heater 40,000 Btu/hr Vent Free Heater + 20,000 Btu/hr...

  • Page 6: Fastening Heater To Wall

    WARNING: A qualified service person must install heater. Follow all local codes. CHECK GAS TYPE Use only LP-gas. If your gas supply is not LP-gas, do not install heater. Call dealer where you bought heater for proper type heater. THIS INSTALLATION REQUIRES: Before installing heater, make sure you have the items listed below: •...
  • Page 7 1. Attach to wall studs 2. Attach to wall anchor Figure 6 Attaching to Wall Stud: This way is the best providing the strongest mounting in wood frame houses. Attaching to Wall Anchor: This way allows you to attach mounting bracket to hol- low walls (wall areas between studs) or to solid walls (concrete or masonry).

  • Page 8: Floor Mounting Away From Wall

    Screw hole Figure 10 2. Mark screws locations on wall. 3. Remove heater from mounting bracket. 4. If installing bottom mounting screw into hollow or solid wall, install wall anchors. Follow steps 1 through 4 under Attaching to Wall using Anchor. If installing bottom mounting screw into wall stud, drill holes at marked locations using 9/64”...

  • Page 9: Checking Gas Connections

    3/8” NPT Pipe Nipple Ground Joint Union Equipment Shutoff Valve From LP tank (11” W.C. to 14” W.C. Pressure) 3” Minimum Figure 12 CHECKING GAS CONNECTIONS WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks at once.

  • Page 10: Operating Your Heater

    8. Turn off heater (see To Turn OFF Gas to Appli- ance, page 10. 9. Replace lower front panel. OPERATING YOUR HEATER FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing prop- erty damage, personal injury or loss of life.

  • Page 11: Inspecting Burner

    2. Turn control knob clockwise to the OFF posi- tion. SHUTTING OFF BURNER ONLY (PILOT STAYS LIT) 1. Turn control knob clockwise to the PILOT/IGN position. INSPECTING BURNER Check pilot flame pattern and burner flame pattern often. PILOT FLAME PATTERN Figure 21 show a correct pilot flame pattern.

  • Page 12: Troubleshooting

    TROUBLESHOOTING NOTE: All troubleshooting items are listed in order of operation and likely occurrence. WARNING: Only a qualified service person should service and repair heater. CAUTION: Never use a wire needle, or similar object to clean ODS/pilot. This can damage ODS/pilot unit. Make sure grille guard is in place before running heater.
  • Page 13 OBSERVED SYMPTOM POSSIBLE CAUSE Heater shuts off in use (ODS operates) 1. Not enough fresh air is available 2. Low line pressure 3. ODS/pilot is partially clogged Gas odor even when control knob is in OFF 1. Gas leak. See WARNING statement at top of page position 2.

  • Page 14: Exploded-View Parts Drawing

    UNVENTED LP-GAS FIRED ROOM HEATER • Model #IR10LP/ BF10LP Model #BF10LP Model #IR10LP Unvented Liquid Propane Fired Room Heater Installation Instructions and Owner’s Manual...

  • Page 15: Parts List

    PARTS LIST IR10LP and BF10LP • This list contains replacement parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 16 of this manual. ITEM PART NO. IR10LP BF10LP 70300 70300 70301 70301 70302 70302 70303...

  • Page 16: Warranty

    705450005981 HSVFR10LP 705450005981 TSVFR10LP 705450005981 MHVFB10LP 705150009269 HSVFB10LP 705150009269 TSVFB10LP 705150009269 Mr. Heater, INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 216-916-3000 Mr. Heater is a registered trademarks of Mr. Heater, Inc. © 2009, Mr. Heater. All rights reserved...
