READ INSTRUCTIONS CAREFULLY: YOUR SAFETY IS IMPORTANT TO YOU AND TO OTHERS Read and
follow all instructions. Place instructions in a safe place for future reference. Do not allow anyone who has
not read these instructions to assemble, light, adjust or operate the heater.
UNVENTED LP-GAS FIRED ROOM HEATER
WARNING: If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury, or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation air must be provided. Refer to Fresh Air for
Combustion and Ventilation section on page 4 of this manual.
This appliance may be installed in an aftermarket permanently manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is
not convertible for use with any other gas.
Enerco Technical Products, INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 · 866-447-2194
Unvented Liquid Propane Fired Room Heater
OPERATING INSTRUCTIONS
AND OWNER'S MANUAL
Plaque Heaters
HSSVFRD10LPT

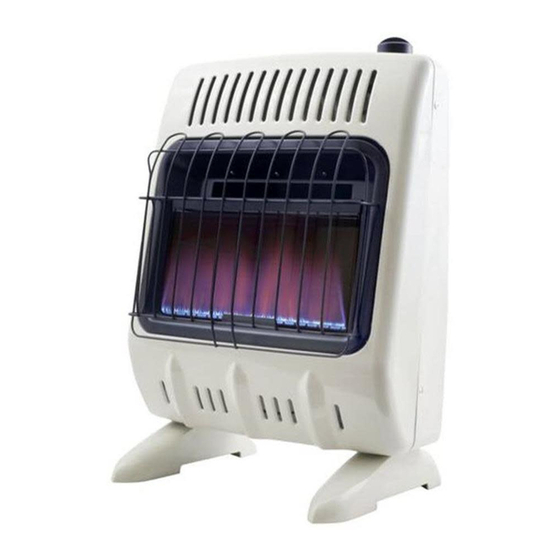

Blue Flame Heaters
HSSVFBF10LPT
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
1
Installation Instructions and Owner's Manual
Model #
HSSVFRD10LPT
HSSVFBF10LPT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Enerco HeatStar HSSVFRD10LPT
Summary of Contents for Enerco HeatStar HSSVFRD10LPT
- Page 1 This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with any other gas. Enerco Technical Products, INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 · 866-447-2194 Unvented Liquid Propane Fired Room Heater...
-
Page 2: Warnings
WARNING: FIRE, EXPLOSION, AND ASPHYXIATION HAZARD Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or gas supplier. Read and follow instructions and precautions in User’s Information Manual provided with this heater. -
Page 3: Table Of Contents
CONTENTS SPECIFICATIONS WARNINGS ..........2 MODEL HSSVFRD10LPT / HSSVFBF10LPT SPECIFICATIONS ........3 BTU (Available) 10,000 PRECAUTIONS ...........3 Type of Gas LP-Gas Only DETERMINING THE TYPE OF HEATER LOCATION SPACE ....4 Ignition Electronic Pulse (AA Battery) INSTALLATION ..........5 Manifold Pressure 10 Inches of Water FASTENING HEATER TO WALL ....6 Inlet Gas Pressure (Maximum) 14 Inches of Water... -
Page 4: Determining The Type Of Heater Location Space
SAFETY DEVICE Unusually tight construction is defined as construction where: This heater has a pilot with an Oxygen Depletion Sensor (ODS) safety shut off system. The ODS/pilot shuts off the a. Walls and ceilings exposed to the outside atmosphere heater if there is not enough fresh air. have a continuous water vapor retarder with a rating of one perm (6 x 10 kg per pa-sec-m... -
Page 5: Installation
space such as, Vent–free heater, Gas water heater, Gas furnace, Vented gas heater, Gas fireplace logs, and Other gas appliances* *Do not include direct-vent gas appliances. Direct-vent (30.5 cm)12” draws combustion air from the outdoors and vents to the outdoors. Or remove Example: Ventilation Gills into... -
Page 6: Fastening Heater To Wall
CHECK GAS TYPE CAUTION: If you install the heater in a home garage: Use only Propane/LP-gas. If your gas supply is not Propane/ • Heater pilot and burner must be at least 18 inches LP-gas, do not install heater. Call dealer where you bought above floor . - Page 7 Attaching Mounting Bracket to Wall with heater. Drill holes at marked locations using 5/16” drill bit. Use holes on each end of mounting bracket to attach For solid walls (concrete or masonry), drill at least bracket to wall. These holes are 16 inches apart. Attach 1”...
-
Page 8: Floor Mounting Away From Wall
or solid wall, install wall anchors. Follow steps 1 supply. This heater requires an external regulator (not through 4 under Attaching to Wall using Anchor. included). Install the external regulator between the heater and Propane/LP supply. If installing bottom mounting screw into wall stud, drill holes at marked locations using 9/64”... - Page 9 during any pressure testing of the gas supply piping system at test pressures equal to or less than ½ psi (3.5 kPa). (see figure 13). HEATER CABINET 2. Pressurize supply piping system by either using 3/8” NPT Pipe Nipple Pressure compressed air or opening propane/LP supply valve.
-
Page 10: Operating Your Heater
OPERATING YOUR HEATER connecting the gas supply, the control knob should be depressed for about 30 seconds. This will allow air to bleed FOR YOUR SAFETY READ BEFORE LIGHTING from the gas system. WARNING: If you do not follow these instructions 6. -
Page 11: Cleaning And Maintenance
A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly. To clean the pilot assembly find the small pilot air inlet hole about two inches from where the pilot flame comes out of the pilot assembly (see figure 17). With the unit off, lightly blow air through the air inlet hole. -
Page 12: Troubleshooting
TROUBLESHOOTING NOTE: All troubleshooting items are listed in order of operation and likely occurrence. WARNING: Only a qualified service person should service and repair heater. CAUTION: Never use a wire needle, or similar object to clean ODS/pilot. This can damage ODS/pilot unit. Make sure grille guard is in place before running heater. - Page 13 OBSERVED SYMPTOM POSSIBLE CAUSE REMEDY Burner orifice is clogged Clean burner orifice (see Cleaning and Maintenance on page 1 1), or replace burner orifice Burner does not light after Burner orifice diameter to small Replace burner orifice ODS/pilot is lit Inlet gas pressure is too low Contact local gas company Manifold pressure is too low...
-
Page 14: Parts List And Diagram
PARTS LIST AND DIAGRAM MODEL: HSSVFBF10LPT ITEM PART DESCRIPTION ITEM PART DESCRIPTION 80121 Wire Guard Regulator Connection 80051 Front Panel (Beige) 80036 Wall Mounting Bracket 80201 Front Panel (White) 80052 Back Panel (Beige) 80038 Glass 80177 Back Panel (White) Thermostat Valve Mounting 80024 Reflector 80010... - Page 15 PARTS LIST AND DIAGRAM MODEL: HSSVFRD10LPT ITEM PART DESCRIPTION ITEM PART DESCRIPTION 80040 Wire Guard 80036 Wall Mounting Bracket 80051 Front Panel (Beige) 80052 Back Panel (Beige) 80201 Front Panel (White) 80177 Back Panel (White) Thermostat Valve Mounting 80022 Reflector 80010 Bracket 80115...
-
Page 16: Warranty
LIMITED WARRANTY Enerco Group, Inc. (EGI) warrants Heatstar Vent free heaters to be free from defects in material and workmanship for a period of five years from the date of manufacture. • During the first two years, EGI will repair or replace this product if it is proven to be defective within the first two years and it is returned at customer expense with proof of purchase to the location of EGI’s choice.
