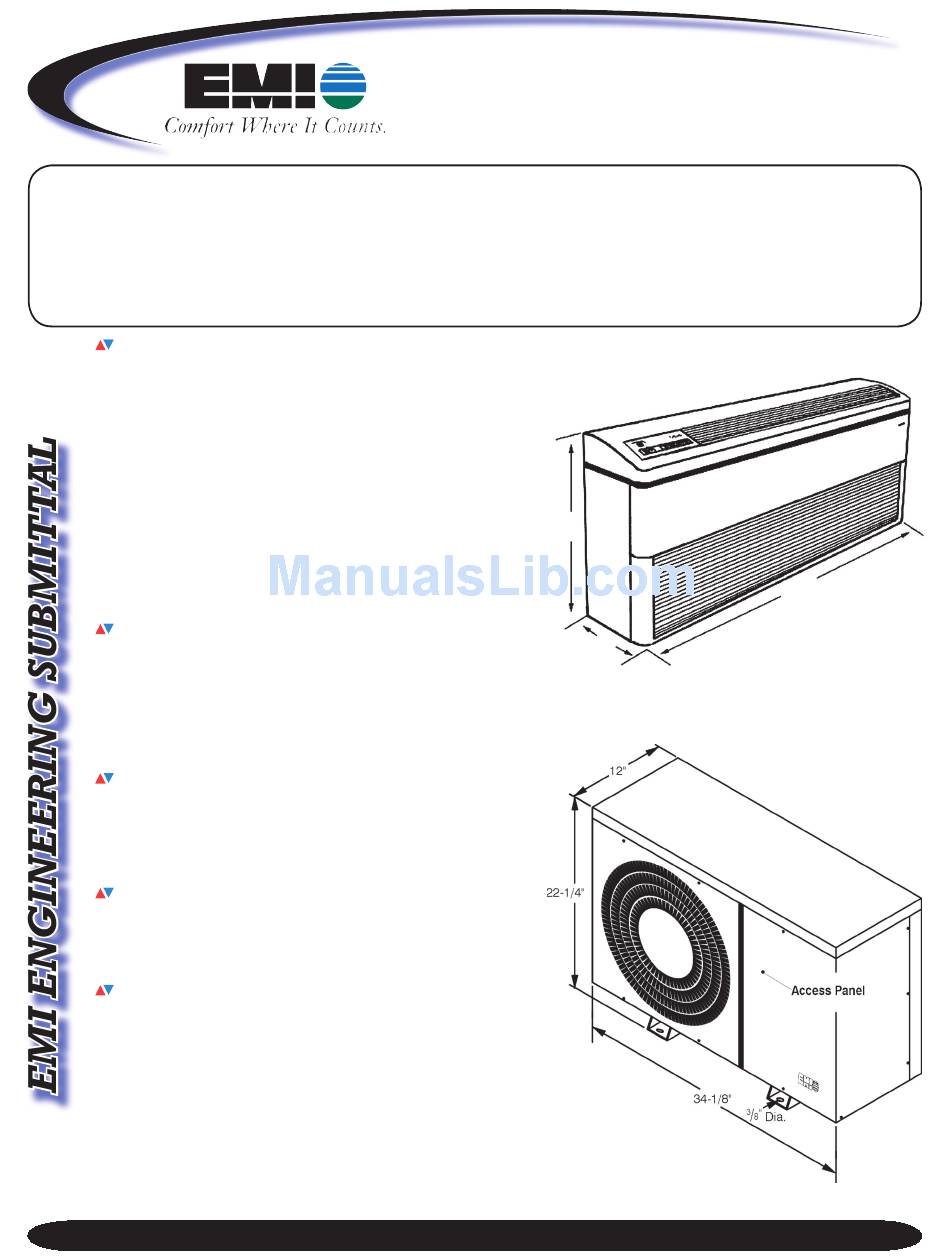

EMI DFPH093 (FHP12-SHC09) Specification

JOB NAME: _____________________________________ LOCATION: _______________________________________
PURCHASER: _____________________________________________________________________________________
ENGINEER: _______________________________________________________________________________________
SUBMITTED TO: _________________________________ FOR: REFERENCE [ ] APPROVAL [ ] CONSTRUCTION [ ]
SUBMITTED BY: _________________________________ DATE: ___________________________________________
UNIT DESIGNATION: SCHEDULE #: _______________ MODEL #: ________________________________________
CAPACITIES:
Cooling
Heating – High
– Low
Indoor Design Temp ºF DB/WB
Cooling
Heating
Outdoor Design Temp ºF DB/WB
Cooling
Heating – High
– Low
EER
SEER
HSPF
INDOOR UNIT:
Power Supply
Max. Fuse Size
Min. Ampacity
Max. Fuse Size
Min. Ampacity
Sound
Weight
OUTDOOR UNIT:
Power Supply
Max. Fuse Size
Min. Ampacity
Sound
Weight
REFRIGERANT PIPING:
Max. Lift
Max. Length
Liquid (OD)
Suction (OD)
STANDARD FEATURES:
• Five-year compressor/One-year parts warranty
• Auto restart following a power outage
• Anti-Short Cycle protection
• Fresh Air knockouts
• Side Discharge/Low profi le condenser
• Fan Purge
• Crank Case Heater
• Manual Reset High Pressure Switch
• "Duratec" Performance Package For Compressor Protection
- Suction Accumulator
- Filter Dryer
- Loss Of Charge Switch
Enviromaster International LLC
9,500 Btu
9,000 Btu
5,300 Btu
80/67
70/57
95/75
47/43
17/15
10.0
10.5
7.1
208/230/1/60
15 Amps (w/o electric heat)
0.8 Amps (w/o electric heat)
20 Amps (w/3kw electric heat)
17.1 Amps (w/3kw electric heat)
48.6 dBa
110 Lbs
208/230/1/60
15 Amps
6.1 Amps
58.0 dBa
90 Lbs
35 Ft
100 Ft
1/4 In
1/2 In
DFPH093 (FHP12-SHC09)
26"
10 / "
1
2
Rome, New York, USA
Rev. 1.2 [1/05]
47"
