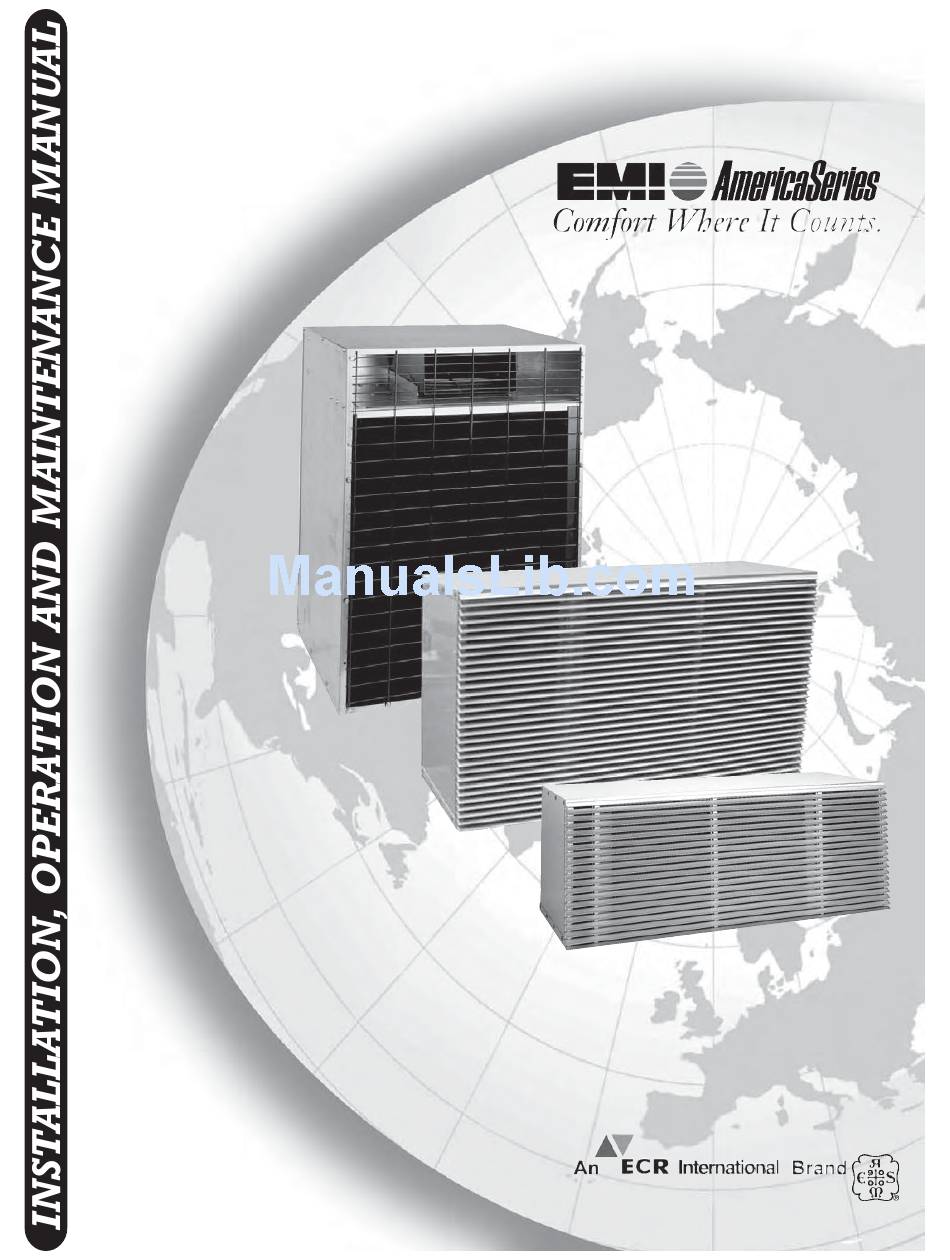

VERTICAL (VCH ) AND HORIZONTAL (HCA/HCH)
IN-WALL STRAIGHT COOL CONDENSING UNITS
Nominal Circuits:
VCH
(18,000, 24,000 & 30,000 Btuh)
HCA
(18,000 & 24,000 Btuh)
HCH
(24,000 & 30,000 Btuh)
VCH
Enviromaster International LLC
5780 Success Dr.
Rome, NY 13440
Email: emi@enviromaster.com
HCH
HCA
An ISO 9001-2000 Certified Company
P/N 240000664, Rev. 2.1 [06/04]
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EMI VCH Series
Summary of Contents for EMI VCH Series
- Page 1 IN-WALL STRAIGHT COOL CONDENSING UNITS Nominal Circuits: (18,000, 24,000 & 30,000 Btuh) (18,000 & 24,000 Btuh) (24,000 & 30,000 Btuh) Enviromaster International LLC 5780 Success Dr. Rome, NY 13440 An ISO 9001-2000 Certified Company Email: emi@enviromaster.com P/N 240000664, Rev. 2.1 [06/04]...
-
Page 2: Installer Responsibilities
(18,000 & 24,000 Btuh), HCH (24,000 & 30,000 Btuh) INSTALLER RESPONSIBILITIES WARNINGS SAVE THESE INSTRUCTIONS Install or locate the EMI AmericaSeries Vertical or FOR FUTURE REFERENCE!! Horizontal In-Wall Condensing Unit only in accordance with these instructions. Use this unit only... -
Page 3: Pre-Installation
NOT to be used in new construction. EMI NOTE: Use of an outdoor louver other than one sup- has a D.O.E. waiver to sell the HCA as a replacement plied by Enviromaster International must receive prior unit only. -
Page 4: Troubleshooting
5. Use of a liquid line filter-drier is recommended. Filter- START-UP driers may be supplied by EMI or be field supplied. Size the filter-drier properly and follow manufacturer’s 1. Start the unit and adjust the refrigerant charge by the installation recommendations. Be sure to adjust “Superheat”... -
Page 5: Field Charging
5. Adjust charge if needed. Be sure unit is running at stabilized condition. Note: If operating superheat is more than 5° F above the chart value, add refrigerant. If below the chart value remove refrigerant. If below the limit line, remove refrigerant. Enviromaster International LLC emi@enviromaster.com... - Page 6 ELECTRICAL SPECIFICATIONS AND DIMENSIONS NOTE: Due to ongoing development programs, product design, specifications, and performance data may change without notice. Please contact the factory for more information. 18.75” 23.875” Knockouts For 16" Electrical (This End Only) 32” 16" 42" Knockouts For Electrical (This End Only) HCH DIMENSIONS Unit...
- Page 7 The remedies provided for in this warranty are exclusive and shall constitute the only liabilities on the part of EMI including any statements made by any individual which shall be of no effect.
