BIOS menu screen

The BIOS setup program can be used under two modes: EZ Mode and Advanced Mode.
You can change modes from the Exit menu or from the Exit/Advanced Mode button in the EZ
Mode/Advanced Mode screen.
EZ Mode
By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ
Mode provides you an overview of the basic system information, and allows you to select
the display language, system performance mode and boot device priority. To access the
Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode.
The default screen for entering the BIOS setup program can be changed. Refer to the
Setup Mode item in section 2.7 Boot memu for details.
Displays the CPU/motherboard
temperature, CPU/5V/3.3V/12V
voltage output, CPU/chassis/
power fan speed

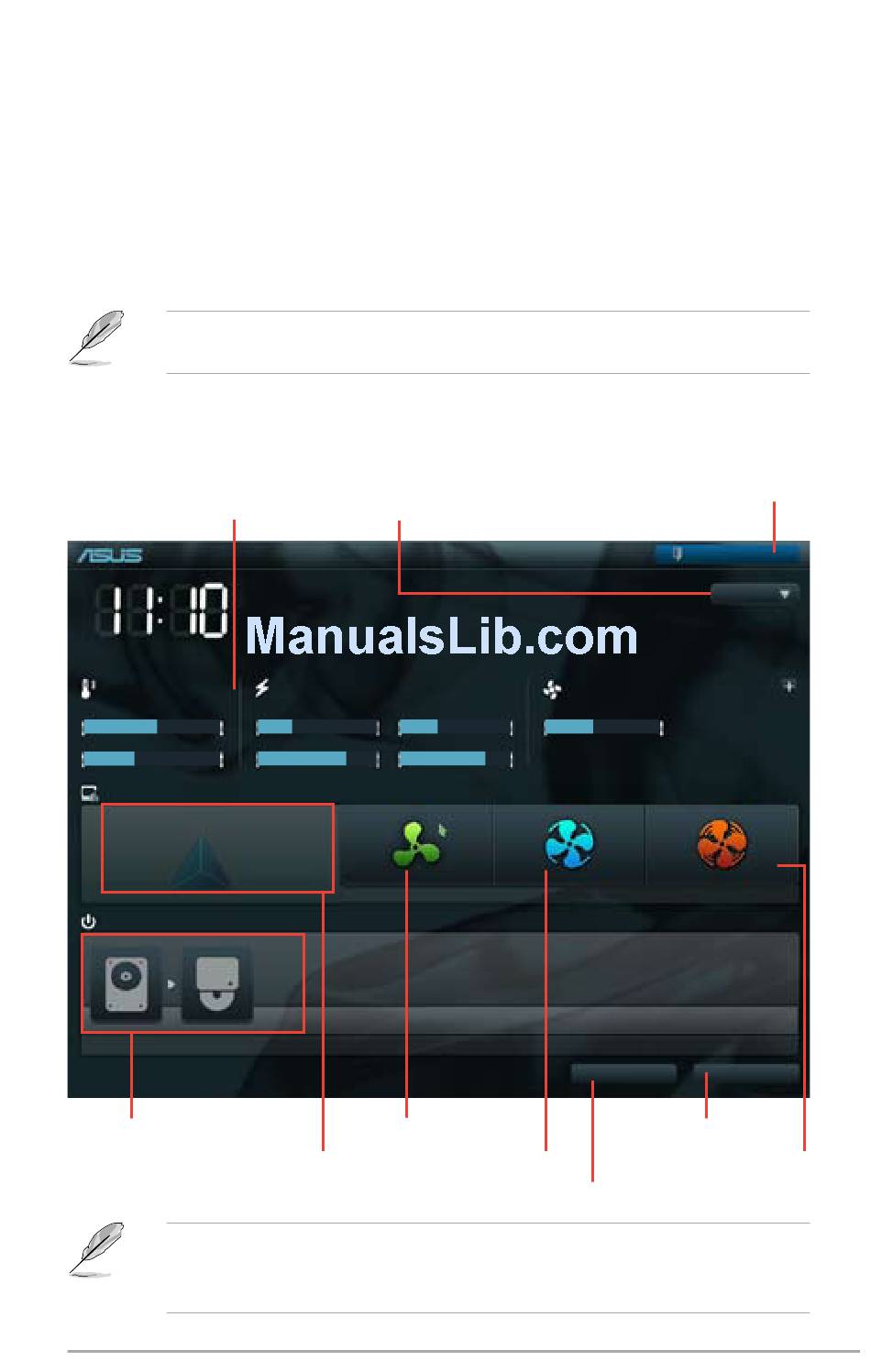

EFI BIOS Utility - EZ Mode
Monday [12/27/2010]
Temperature
CPU +123.8ºF/+51.0ºC
MB +87.8ºF/+30.0ºC
System Performance
Quiet
Performance
Boot Priority
Use the mouse to drag or keyboard to navigate to decide the boot priority.
Selects the boot device priority
Displays the system properties of the
selected mode on the right hand side
• The boot device options vary depending on the devices you installed to the system.
• The Boot Menu(F8) button is available only when the boot device is installed to the
system.
Chapter 2: BIOS information
Selects the
display language
of the BIOS setup
program
P8H61-M2-TPM/SI
BIOS Version : 0203
CPU Type : Intel(R) Core(TM) i5-2400 CPU 0 @ 3.10GHz
Total Memory : 1024 MB (DDR3 1333MHz)
Voltage
CPU 1.184V 5V
3.3V 3.360V 12V
Energy Saving
Silent
Silent mode
Exits the BIOS setup program without saving
the changes, saves the changes and resets the
system, or enters the Advanced Mode
Build Date : 03/25/2011
Speed : 3100 MHz
Fan Speed
5.160V CPU_FAN 1982RPM
12.096V
Boot Menu(F8)
Loads optimized default
Standard mode
Selects the boot device priority
Exit/Advanced Mode
English
CHA_FAN N/A
Default(F5)
Turbo mode
2-7
