Serial ATA 3G connectors (7-pin SATA1-4)
These connectors are for the Serial ATA signal cables for Serial ATA 3Gb/s hard disk
drives and optical disk drives. The Serial ATA 3Gb/s is backward compatible with the
Serial ATA 1.5Gb/s specification. The data transfer rate of the Serial ATA 3Gb/s is faster
than the standard parallel ATA (133 MB/s).
P8H61-M2/TPM/SI
P8H61-M2/TPM/SI Intel
7.
Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
P8H61-M2/TPM/SI
P8H61-M2/TPM/SI Front panel audio connector
• We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard's high-definition audio capability.

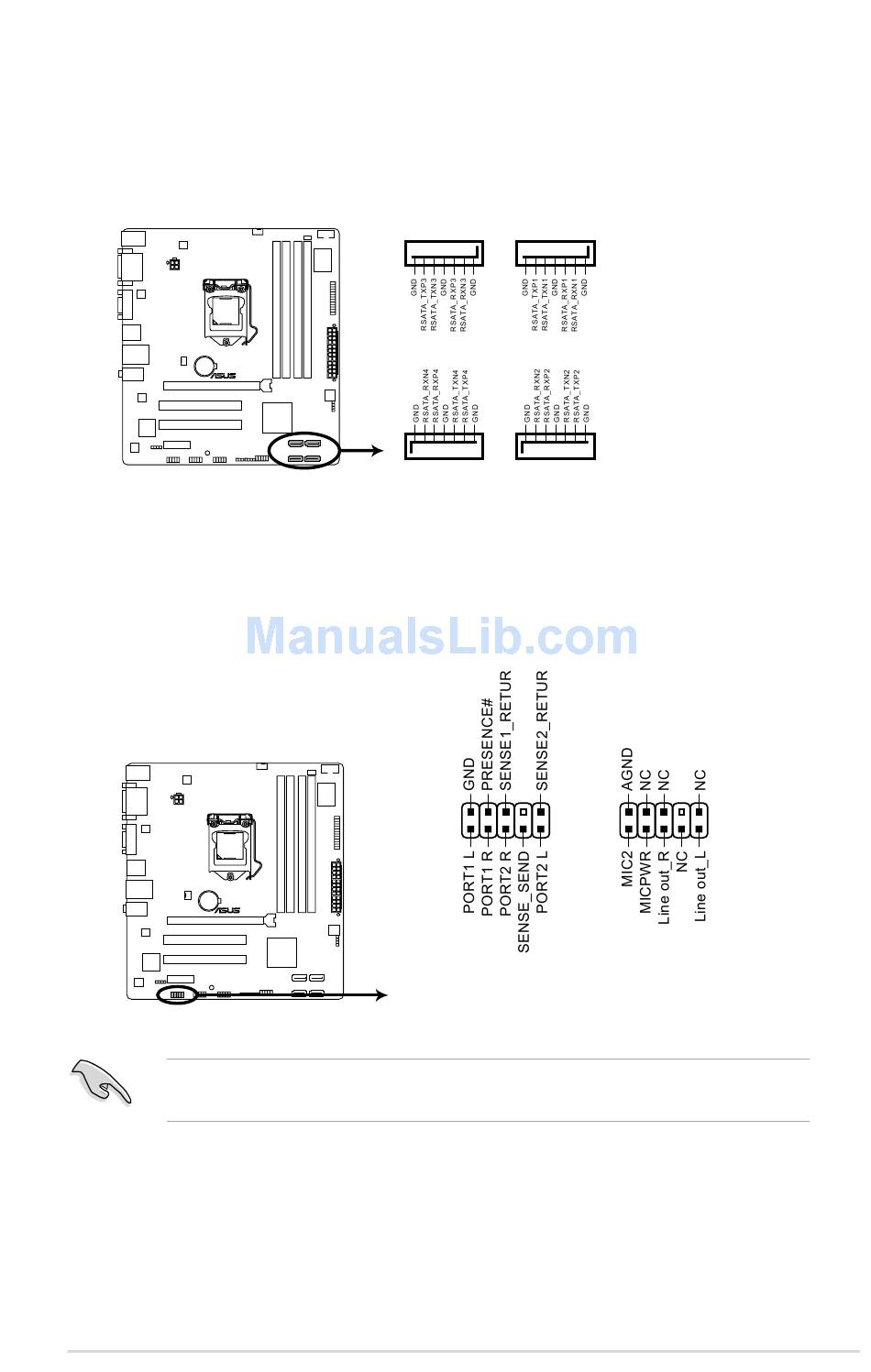

Chapter 1: Product introduction
SATA3G_3
SATA3G_1
SATA3G_4
SATA3G_2
SATA 3.0Gb/s connectors
®
AAFP
PIN 1
HD-audio-compliant
pin definition
PIN 1
Legacy AC'97
compliant definition
1-13
