2.3

Jumper Block

CAUTION
Do not move the jumper with the power on. Always turn off the power and unplug the
power cord from the computer before changing a jumper setting. Otherwise, the
board could be damaged.

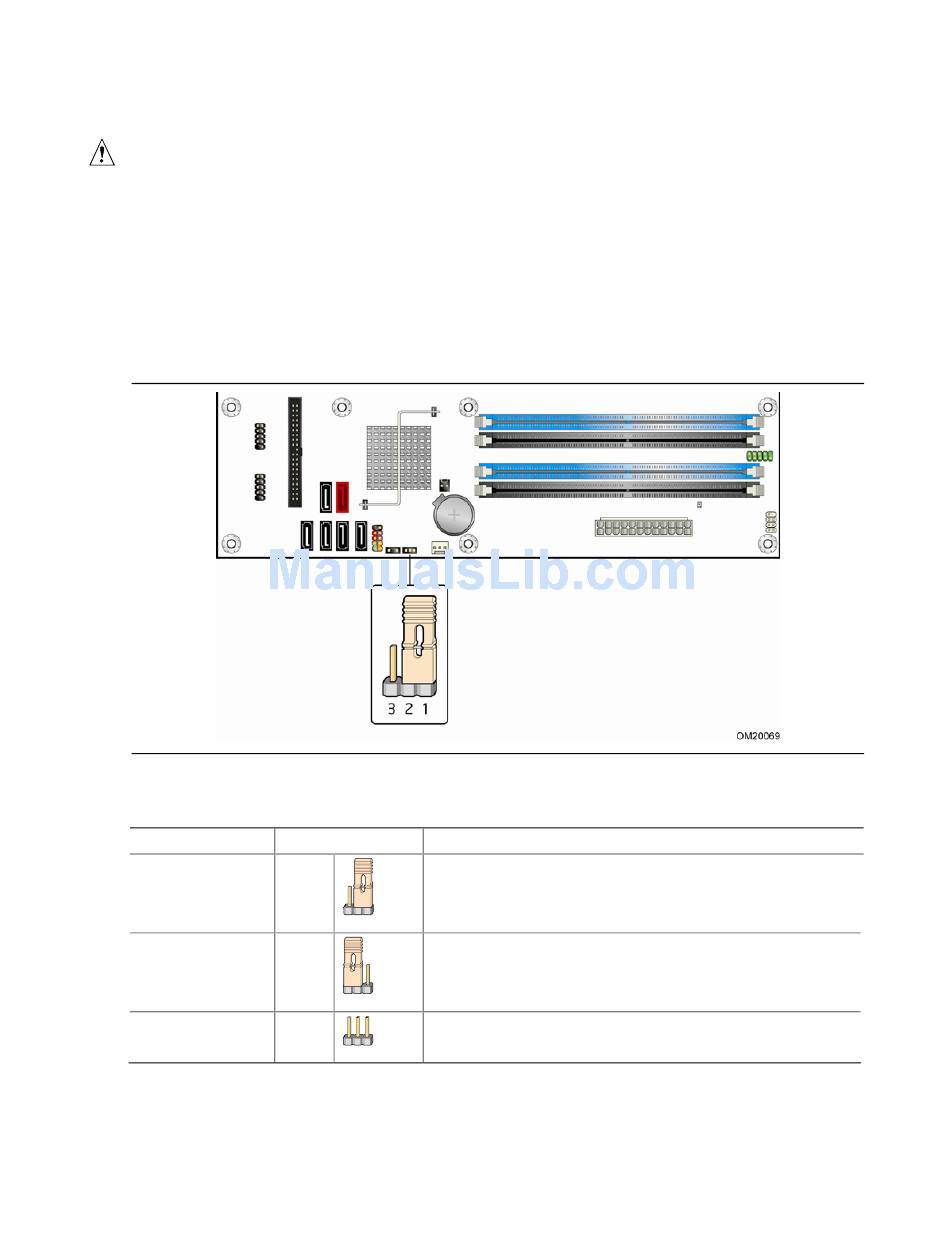

Figure 14 shows the location of the jumper block. The jumper determines the BIOS
Setup program's mode. Table 24 lists the jumper settings for the three modes:
normal, configure, and recovery. When the jumper is set to configure mode and the
computer is powered-up, the BIOS compares the processor version and the microcode
version in the BIOS and reports if the two match.
Table 24. BIOS Setup Configuration Jumper Settings
Function/Mode
Normal
Configure
Recovery
Figure 14. Location of the Jumper Block
Jumper Setting Configuration
1-2 The BIOS uses current configuration information and
passwords for booting.
3 2 1
2-3 After the POST runs, Setup runs automatically. The
maintenance menu is displayed.
3 2 1
None The BIOS attempts to recover the BIOS configuration. See
Section 3.7 for more information on BIOS recovery.
3 2 1
Technical Reference
51
