2.2.1

Back Panel Connectors

Figure 9 shows the location of the back panel connectors.
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
Item Description
A IEEE-1394a
B USB ports [2]
C USB ports [2]
D LAN
E USB ports [2]
F Surround left/right channel audio out
G Center channel and LFE (subwoofer) audio out
H Audio line in
I S/PDIF Digital audio out (optical)
J Mic in
K Audio line out

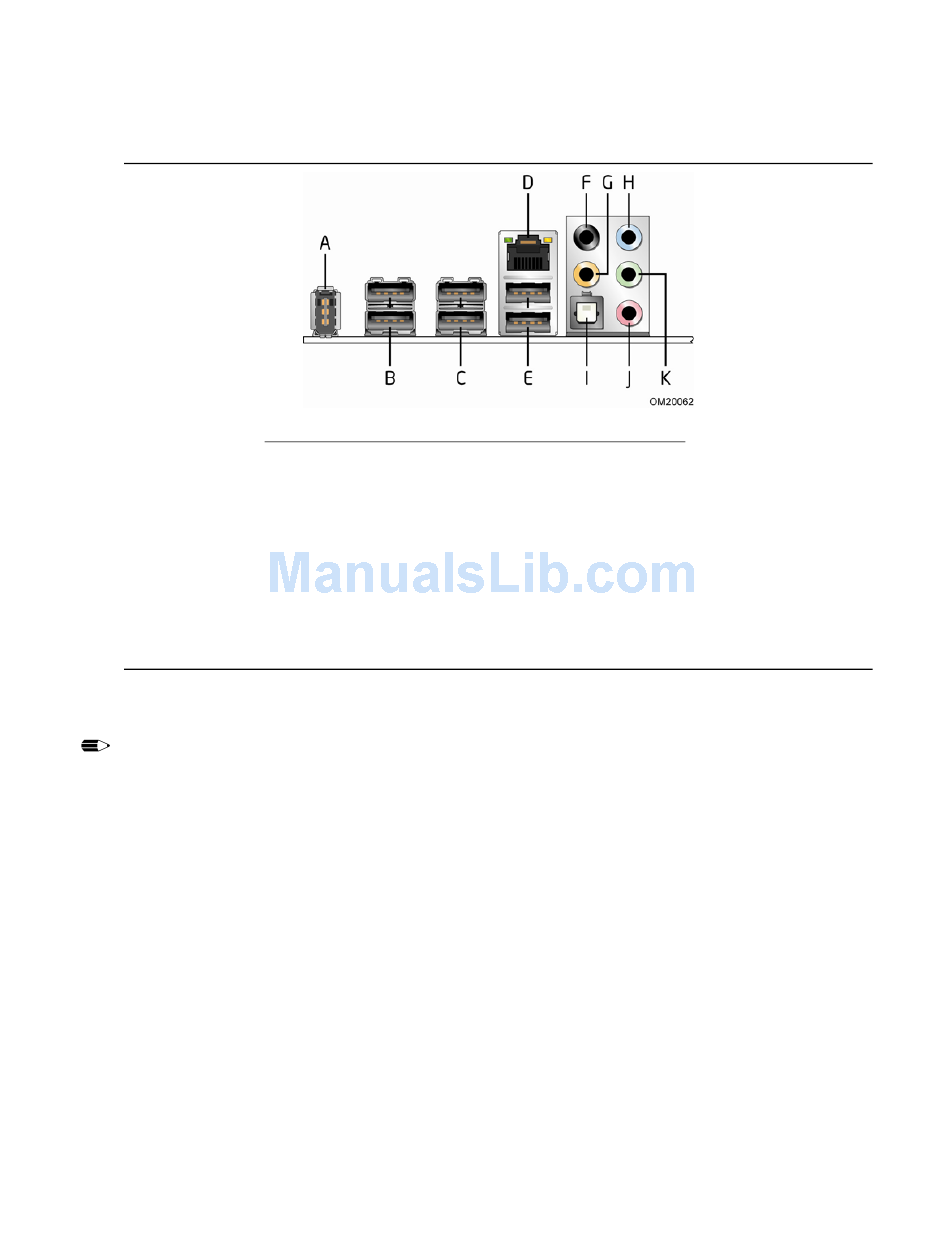

Figure 9. Back Panel Connectors
