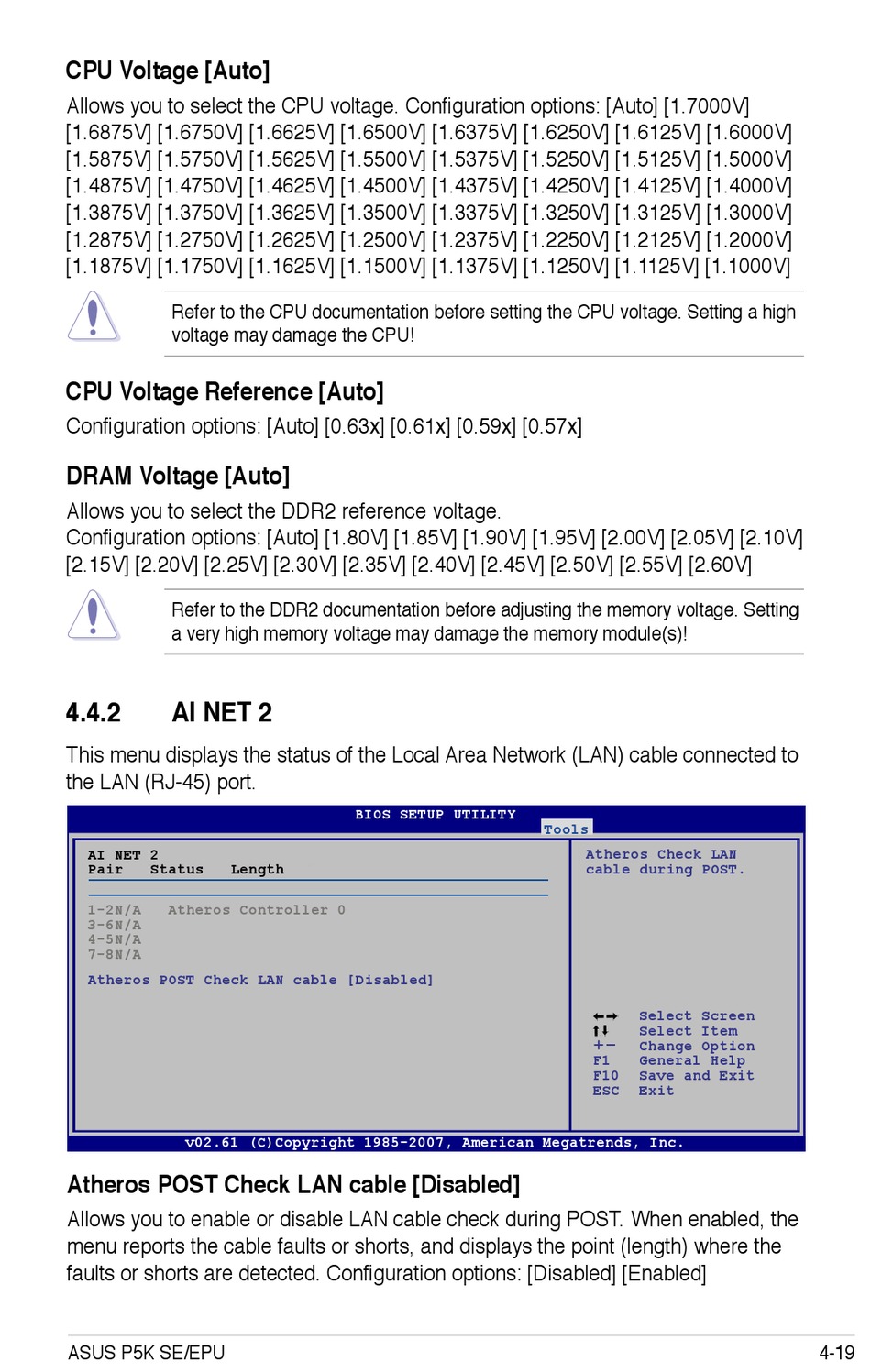

CPU Voltage [Auto]
Allows you to select the CPU voltage. Configuration options: [Auto] [1.7000V]
[1.6875V] [1.6750V] [1.6625V] [1.6500V] [1.6375V] [1.6250V] [1.6125V] [1.6000V]
[1.5875V] [1.5750V] [1.5625V] [1.5500V] [1.5375V] [1.5250V] [1.5125V] [1.5000V]
[1.4875V] [1.4750V] [1.4625V] [1.4500V] [1.4375V] [1.4250V] [1.4125V] [1.4000V]
[1.3875V] [1.3750V] [1.3625V] [1.3500V] [1.3375V] [1.3250V] [1.3125V] [1.3000V]
[1.2875V] [1.2750V] [1.2625V] [1.2500V] [1.2375V] [1.2250V] [1.2125V] [1.2000V]
[1.1875V] [1.1750V] [1.1625V] [1.1500V] [1.1375V] [1.1250V] [1.1125V] [1.1000V]
Refer to the CPU documentation before setting the CPU voltage. Setting a high
voltage may damage the CPU!
CPU Voltage Reference [Auto]
Configuration options: [Auto] [0.63x] [0.61x] [0.59x] [0.57x]
DRAM Voltage [Auto]
Allows you to select the DDR2 reference voltage.
Configuration options: [Auto] [1.80V] [1.85V] [1.90V] [1.95V] [2.00V] [2.05V] [2.10V]
[2.15V] [2.20V] [2.25V] [2.30V] [2.35V] [2.40V] [2.45V] [2.50V] [2.55V] [2.60V]
Refer to the DDR2 documentation before adjusting the memory voltage. Setting
a very high memory voltage may damage the memory module(s)!
4.4.2

AI NET 2

This menu displays the status of the Local Area Network (LAN) cable connected to
the LAN (RJ-45) port.
AI NET 2
Pair Status
1-2N/A Atheros Controller 0
3-6N/A
4-5N/A
7-8N/A
Atheros POST Check LAN cable [Disabled]
v02.61 (C)Copyright 1985-2007, American Megatrends, Inc.
Atheros POST Check LAN cable [Disabled]
Allows you to enable or disable LAN cable check during POST. When enabled, the
menu reports the cable faults or shorts, and displays the point (length) where the
faults or shorts are detected. Configuration options: [Disabled] [Enabled]
ASUS P5K SE/EPU
BIOS SETUP UTILITY
Length
Tools
Atheros Check LAN
cable during POST.
Select Screen
Select Item
+-
Change Option
F1 General Help
F10 Save and Exit
ESC Exit
4-19
