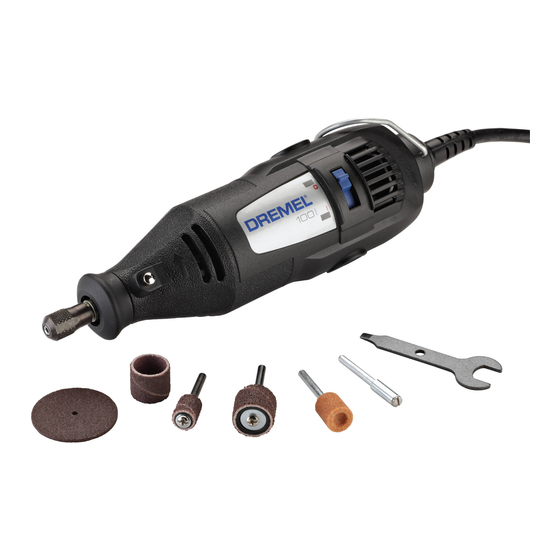

Dremel 100 Operating/Safety Instructions Manual
Hide thumbs
Also See for 100:
- Operating/safety instructions manual (68 pages) ,
- Manual (64 pages) ,
- Operating/safety instructions manual (30 pages)
Advertisement
Available languages
Available languages
Quick Links
Download this manual
See also:
Manual
Advertisement
Related Manuals for Dremel 100
Summary of Contents for Dremel 100
-
Page 2: General Power Tool Safety Warnings
General Power Tool Safety Warnings Read all safety warnings and all instructions. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Work area safety power tool. Do not use a power tool while you are tired or under the influence of drugs, Keep work area clean and well lit. - Page 3 Disconnect the plug from the power source Keep cutting tools sharp and clean. and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Use the power tool, accessories and tool bits etc. in accordance with these instructions, Store idle power tools out of the reach of taking into account the working conditions children and do not allow persons unfamiliar...
- Page 4 Safety Rules for Rotary Tools - (cont.) spinning wire brush away from you. Avoid bouncing and snagging the wheel, especially when working corners, sharp edges etc. The direction of feed with the bit into the Wear protective gloves and face shield material when carving, routing or cutting is with wire or bristle brushes.
-
Page 5: Additional Safety Warnings
When using the steel saws, cutoff wheels, high speed cutters or tungsten carbide cutters, always have the work securely clamped. Never attempt to hold the work with one hand while using any of these accessories. Additional Safety Warnings Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer,... - Page 6 Symbols IMPORTANT: Symbol Name Designation/Explanation...
- Page 7 Symbols (continued) IMPORTANT:...
-
Page 8: Functional Description And Specifications
Functional Description and Specifications Disconnect the plug from the power source before making any assembly, adjustments or changing accessories Models 100 & 200 High Speed Rotary Tools Model 3000 High Speed Rotary Tool... - Page 9 Assembly Always unplug Rotary Tool before changing accessories, changing collets or servicing your Rotary Tool. COLLET NUT — Avoid excessive tightening of the collet nut when there is no bit inserted. EZ TWIST™ INTEGRATED WRENCH/NOSE CAP Do not engage lock while (Model 3000 only) the Rotary Tool is running.
-
Page 10: Operating Instructions
BALANCING ACCESSORIES — Operating Instructions Sharpen Tools Drilling Shape Wood Carve Wood Deburr Metal Cut Metal Using the Rotary Tool... -
Page 11: Operating Speeds
Wear Eye Protection Questions or Problems? Call 1-800-437-3635 or check our website at www.Dremel.com Operating Speeds To select the right speed for each job, use a practice piece of material. - Page 12 221 foot control unit. Not for use with two speed or variable speed models 200 or 3000. Use with external speed control will damage the variable/two speed electronics. Let speed do the work! Use only Dremel ® , high-performance accessories.
-
Page 13: Maintenance Information
Maintenance Information Service To continue using the tool in this condition will Preventive maintenance permanently damage your tool. performed by unauthorized personnel may result in misplacing of internal wires and components which could cause serious hazard. avoid injury from unexpected starting or electrical shock, always remove plug from wall outlet before performing service or cleaning. - Page 14 Use only Dremel , high-performance accessories. Currently, the 1/8", 3/32",1/32" and 1/16" collets accommodate all of the avail - able Dremel accessories. 1/8" collets are included in most rotary tool kits. Refer to the DREMEL ACCESSORY ORDER Mandrels FORM for illustrations of the accessories available.
- Page 15 Screw Mandrel N° 401 EZ Lock Mandrel N° 402 Small Screw Mandrel N° 402 High Speed Cutters Aluminum Oxide Grinding Stones (orange/brown) Tungsten Carbide Cutters Engraving Cutters Silicon Carbide Grinding Stones (blue/green) Diamond Wheel Points Structured Tooth Tungsten Carbide Cutters...
- Page 16 Dremel Accessories (Cont.) Wire Brushes For best results wire brushes should be used at speeds not greater than 15,000 RPM. Refer to Operating Speeds section for proper tool speed setting. Polishing Accessories Bristle Brushes For best Brushing Pressure results polishing accessories should be used at speeds not greater than 15,000 RPM.
- Page 17 Dremel Accessories (Cont.) Sanding Accessories Drywall Cutting Bit Tile Cutting Bit Spiral Cutting Bit High Speed Router Bits Grinding Wheel Cutting Wheels...
- Page 18 Mandrel No. 401 Mandrel N° 402 Drum Sander, Before each use, check to make certain that all components are assembled to accessory shank and that the drum is sufficiently expanded to secure the band during use.
-
Page 19: Speed Settings
Speed Settings Not all speed settings can be achieved on 100 and 200 series tool. For certain applications, a variable speed tool is required. 2 = 5,000 - 8,000 RPM's 4 = 9,000 - 15,000 RPM's 6 = 16,000 - 21,000 RPM’s 8 = 22,000 - 27,000 RPM’s 10 = 28,000 - 32,000 RPM’s High Speed Cutters... - Page 20 Speed Settings (Continued) Not all speed settings can be achieved on 100 and 200 series tool. For certain applications, a variable speed tool is required. 2 = 5,000 - 8,000 RPM's 4 = 9,000 - 15,000 RPM's 6 = 16,000 - 21,000 RPM’s 8 = 22,000 - 27,000 RPM’s 10 = 28,000 - 32,000 RPM’s Tungsten Carbide Cutters...
-
Page 21: Cutting Accessories
Speed Settings (Continued) Not all speed settings can be achieved on 100 and 200 series tool. For certain applications, a variable speed tool is required. 2 = 5,000 - 8,000 RPM's 4 = 9,000 - 15,000 RPM's 6 = 16,000 - 21,000 RPM’s 8 = 22,000 - 27,000 RPM’s 10 = 28,000 - 32,000 RPM’s Chain Saw Sharpening Stones... - Page 22 Speed Settings (Continued) Not all speed settings can be achieved on 100 and 200 series tool. For certain applications, a variable speed tool is required. 2 = 5,000 - 8,000 RPM's 4 = 9,000 - 15,000 RPM's 6 = 16,000 - 21,000 RPM’s 8 = 22,000 - 27,000 RPM’s 10 = 28,000 - 32,000 RPM’s Flapwheels...
- Page 32 AVERTISSEMENT Portez Des Lunettes De Protection...
- Page 54 ADVERTENCIA Use Anteojos De Protección...
- Page 68 Dremel Limited Warranty ® 2610015339...
